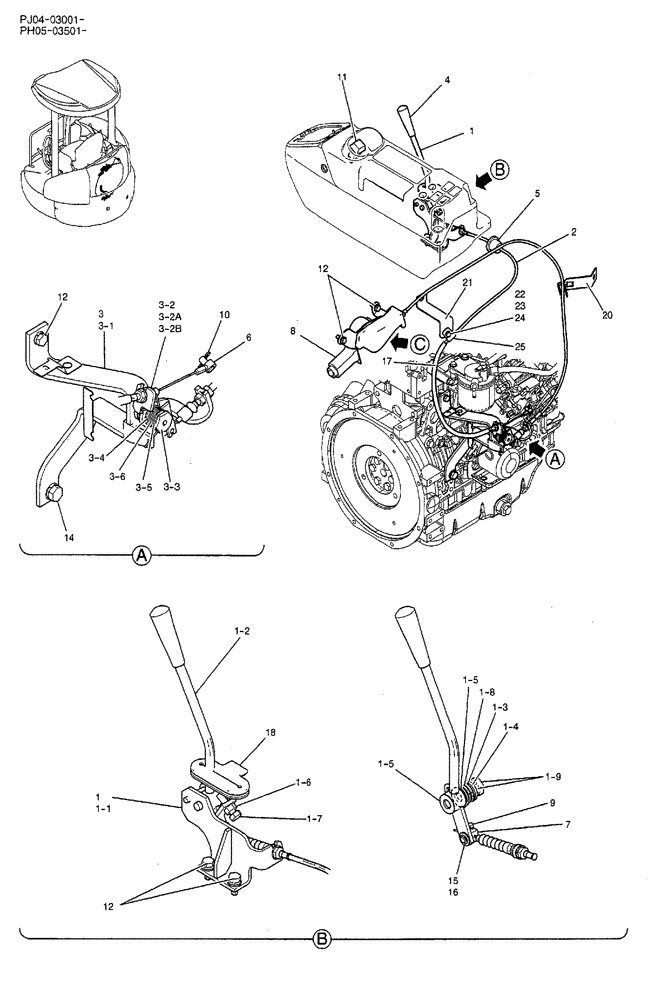

Запчасти Case CX50B (02-019) - CONTROL ASSEMBLY, ENGINE W/DECEL (05) - SUPERSTRUCTURE

PH11M00008F1

CONTROL ASSY, ENGINE

1шт.

1

PW51M00010F1

LEVER ASSY.

THROTTLE, Serial Range: PJ04-03001-PJ04-03342

1шт.

1

PW51M00010F1

LEVER ASSY.

THROTLE, Serial Range: PH05-03501-PH05-03776

1шт.

PH51M00011F1

LEVER ASSY.

THROTTLE, Serial Range: PJ04-03343-PH05-03777

1шт.

1-1

PW51M01035P1

BRACKET

, Serial Range: PJ04-03001-PJ04-03342

1шт.

1-1

PW51M01035P1

BRACKET

, Serial Range: PH05-03501-PH05-03776

1шт.

PH51M01030P1

BRACKET

BRACKET, Serial Range: PJ04-03343-PH05-03777

1шт.

1-2

PM51M01036P2

LEVER

, Serial Range: PJ04-03001-PJ04-03342

1шт.

1-2

PM51M01036P2

LEVER

, Serial Range: PH05-03501-PH05-03776

1шт.

PH51M01032P1

LEVER

LEVER, Serial Range: PJ04-03343-PH05-03777

1шт.

1-3

R16T0137D2

WASHER

6шт.

1-4

ZW16H12000

WASHER

1шт.

1-5

PM51M01026P1

BUSHING,12mm ID x 14mm OD x 7mm L

2шт.

1-6

ZN18C08007

NUT

1шт.

1-7

2420T8007D3

CAPSCREW

CAP

1шт.

1-8

PM51M01025P1

PLATE

1шт.

1-9

ZN17C12007

NUT

2шт.

2

PH11M01072P1

CABLE,1175mm L

CONTROL

1шт.

3

PH11M01120F1

LINK ASSY.

, Serial Range: PJ04-03001-PJ04-03052

1шт.

3

PH11M01120F1

LINK ASSY.

, Serial Range: PH05-03501-PH05-03556

1шт.

PH11M01163F1

LINK

, Serial Range: PJ04-03053-PH05-03557

1шт.

3-1

PH11M01121P1

BRACKET

, Serial Range: PJ04-03001-PJ04-03342

1шт.

3-1

PH11M01121P1

BRACKET

, Serial Range: PH05-03501-PH05-03775

1шт.

PH11M01121P2

BRACKET

BRACKET, Serial Range: PJ04-03343-PH05-03776

1шт.

3-2

PH11M01161F1

LINK ASSY.

1шт.

3-2a

PH11M01157P1

LABEL

LINK, Serial Range: PJ04-03001-PJ04-03342

1шт.

3-2a

PH11M01157P1

LABEL

LINK, Serial Range: PH05-03501-PH05-03775

1шт.

PH11M01157P2

LINK, Serial Range: PJ04-03343-PH05-03776

1шт.

3-2b

2405R312D1512

BUSHING,15mm ID x 17mm OD x 12mm L

1шт.

3-3

PW11M01112P2

NUT

1шт.

3-4

PW11M01143P1

WASHER

1шт.

3-5

PW11M01144P1

WASHER

1шт.

3-6

PH11M01123P2

SPRING

, Serial Range: PJ04-03001-PJ04-03052

1шт.

3-6

PH11M01123P2

SPRING

, Serial Range: PH05-03501-PH05-03556

1шт.

PH11M01123P3

SPRING

, Serial Range: PJ04-03053-PH05-03557

1шт.

4

2406Z321

HANDLE

GRIP

1шт.

5

YT11M01012P1

GROMMET

1шт.

6

PVY11M01071P1

PIN

1шт.

7

PW11M01109P1

PIN

, Serial Range: PJ04-03001-PJ04-03342

1шт.

7

PW11M01109P1

PIN

, Serial Range: PH05-03501-PH05-03776

1шт.

PW11M01109P2

PIN

, Serial Range: PJ04-03343-PH05-03777

1шт.

8

PH20S00008F1

GOVERNOR

MOTOR ASSY

1шт.

9

ZS18C05010

SCREW,Hex, M5 x 10mm

CAP

1шт.

10

2419R9D2

COTTER PIN

OD 08mm x 27.7mm Long

1шт.

11

PM50S00005P1

SWITCH

1шт.

12

ZM22C08020

BOLT

SEMS

6шт.

14

ZM22C10020

BOLT

SEMS

1шт.

15

ZR36X00600

SNAP RING

RETAINING

1шт.

16

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

17

PU06C01020D6

TUBE

1шт.

18

PW11M01108P1

GROMMET

1шт.

20

PH11M01154P1

PLATE

1шт.

21

PH11M01155P1

PLATE

1шт.

22

ZW16X06000

WASHER

1шт.

23

ZW26X06000

LOCK WASHER

1шт.

24

ZS18C06014

SCREW,Hex, M6 x 14mm

CAP

1шт.

25

ZC46X06007

CLIP

1шт.
