Запчасти Case CX50B (02-012) - MUFFLER ASSEMBLY (05) - SUPERSTRUCTURE

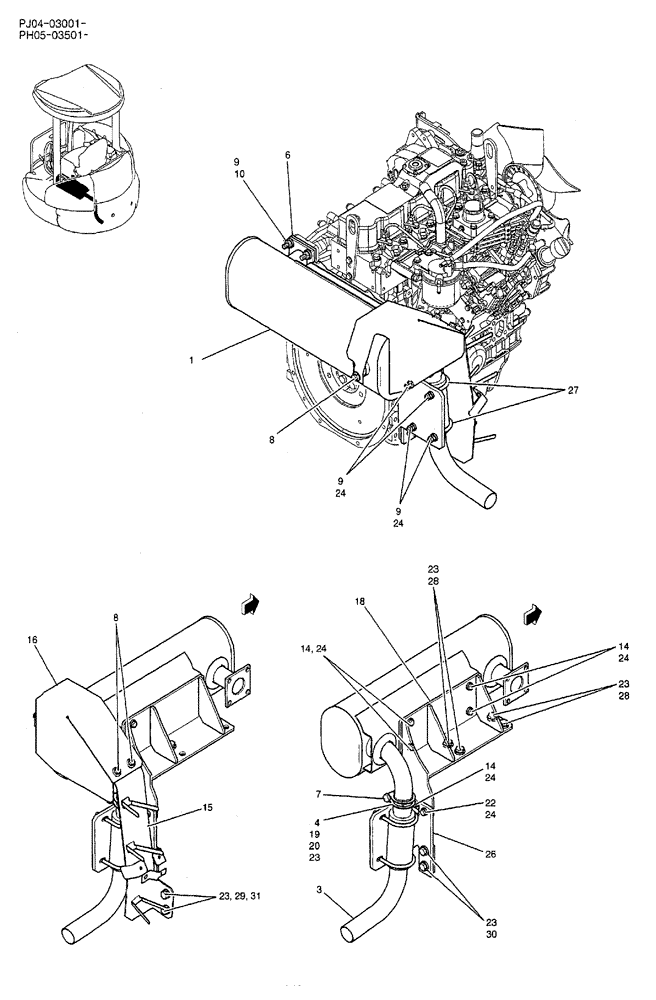

Схема запчастей Case CX50B - (02-012) - MUFFLER ASSEMBLY (05) - SUPERSTRUCTURE
1
27
24
9
8
9
9
24
6
10

Артикул

Название

Примечание

Количество

PH12P00006F1

MUFFLER ASSY

1шт.

1

PH12P00010P1

MUFFLER

1шт.

3

PH12P01071P1

EXHAUST SYSTEM PIPE

1шт.

4

PH12P01044P1

CLAMP

1шт.

6

PH12P01056P1

GASKET

1шт.

7

ZS18C10060

SCREW,Hex, M10 x 60mm

CAP

1шт.

8

PA21C01133P1

BOLT

SEMS

3шт.

9

ZN18C08007

NUT

12шт.

10

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

4шт.

14

ZS18C08020

SCREW,Hex, M8 x 20mm

5шт.

15

PH12P01052P1

COVER

, Serial Range: PJ04-03001-PJ04-03077

1шт.

15

PH12P01052P1

COVER

, Serial Range: PH05-03501-PH05-03573

1шт.

PH12P01052P2

COVER

, Serial Range: PJ04-03078-PH05-03574

1шт.

16

PH12P01069P1

COVER

1шт.

18

PH12P01077P1

BRACKET

1шт.

19

ZN18C10008

NUT

1шт.

20

ZW26X10000

LOCK WASHER

1шт.

22

ZS18C08030

SCREW,Hex, M8 x 30mm

CAP

1шт.

23

ZW16H10000

WASHER

WASHER, Serial Range: PJ04-03001-PJ04-03060

7шт.

23

ZW16H10000

WASHER

WASHER, Serial Range: PH05-03501-PH05-03564

7шт.

ZW16H10000

WASHER

WASHER, Serial Range: PJ04-03061-PH05-03565

9шт.

24

ZW16H08000

WASHER

10шт.

26

PH12P01074P1

PLATE

1шт.

27

2420T2948D6

U-BOLT

2шт.

28

ZS18C10025

SCREW,Hex, M10 x 25mm

4шт.

29

ZM22C10020

BOLT

SEMS, Serial Range: PJ04-03001-PJ04-03060

2шт.

29

ZM22C10020

BOLT

SEMS, Serial Range: PH05-03501-PH05-03564

2шт.

30

ZS18C10030

SCREW,Hex, M10 x 30mm

CAP

2шт.

31

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap, Serial Range: PJ04-03061-PH05-03565

2шт.

Выбрано товаров: 29
