Запчасти Case CX50B (02-009) - CLEANER ASSEMBLY, AIR (CANOPY) (05) - SUPERSTRUCTURE

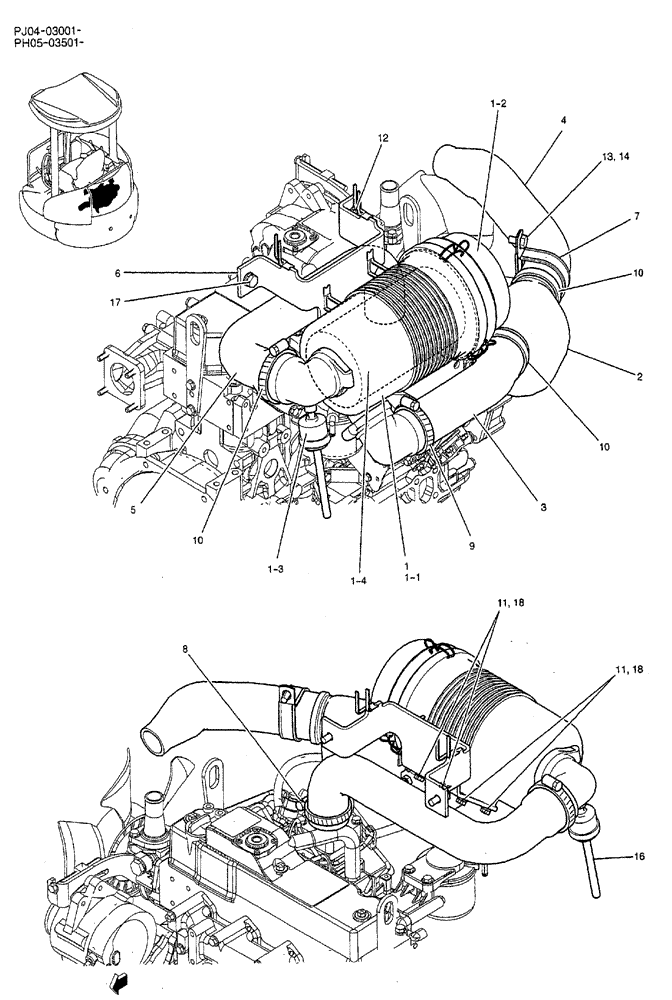

Схема запчастей Case CX50B - (02-009) - CLEANER ASSEMBLY, AIR (CANOPY) (05) - SUPERSTRUCTURE
7
6
17
10
14
3
1-4
9
12
8
1-3
18
16
18
10
2
1
4
10
1-1
13
11
1-2
11

Артикул

Название

Примечание

Количество

PH11P00013F1

AIR CLEANER

ASSY

1шт.

1

PH11P00014F1

AIR CLEANER

ASSY

1шт.

1-1

PH11P00014S001

BODY

ASSY, INCLUDES ElBOWS

1шт.

1-2

PH11P00011S002

COVER ASSY

1шт.

1-3

PW11P00010S004

INDICATOR

1шт.

1-4

PH11P00011S005

AIR FILTER

Air Cleaner, Outer

1шт.

2

PH98H01001P1

MUFFLER

1шт.

3

PH11P01033P1

HOSE

AIR

1шт.

4

PH11P01034P1

HOSE

AIR

1шт.

5

PH11P01035P1

HOSE

AIR

1шт.

6

PH11P01038P2

BRACKET

1шт.

7

LV05P01133P2

HOSE CLIP

CLIP

1шт.

8

ZC16X05800

CLIP

1шт.

9

ZC16X06700

CLIP,58mm - 76mm

1шт.

10

ZC16X07000

CLIP

3шт.

11

ZM22C08020

BOLT

SEMS, Serial Range: PJ04-03001-PJ04-03382

4шт.

11

ZM22C08020

BOLT

SEMS, Serial Range: PH05-03501-PH05-03813

4шт.

ZM12C08020

BOLT

SEMS, Serial Range: PJ04-03383-PH05-03814

4шт.

12

ZM22C10025

BOLT

SEMS

1шт.

13

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

14

ZW16X10000

WASHER

1шт.

16

HX11Y03010DY

HOSE

, Serial Range: PJ04-03001-PJ04-04699

1шт.

16

HX11Y03010DY

HOSE

, Serial Range: PH05-03501-PH05-04236

1шт.

17

ZM22C10030

BOLT

SEMS

1шт.

18

ZW16H08000

WASHER

, Serial Range: PJ04-03383-PH05-03814

4шт.

Выбрано товаров: 25
