Запчасти Case CX50B (02-006) - ENGINE INSTAL (05) - SUPERSTRUCTURE

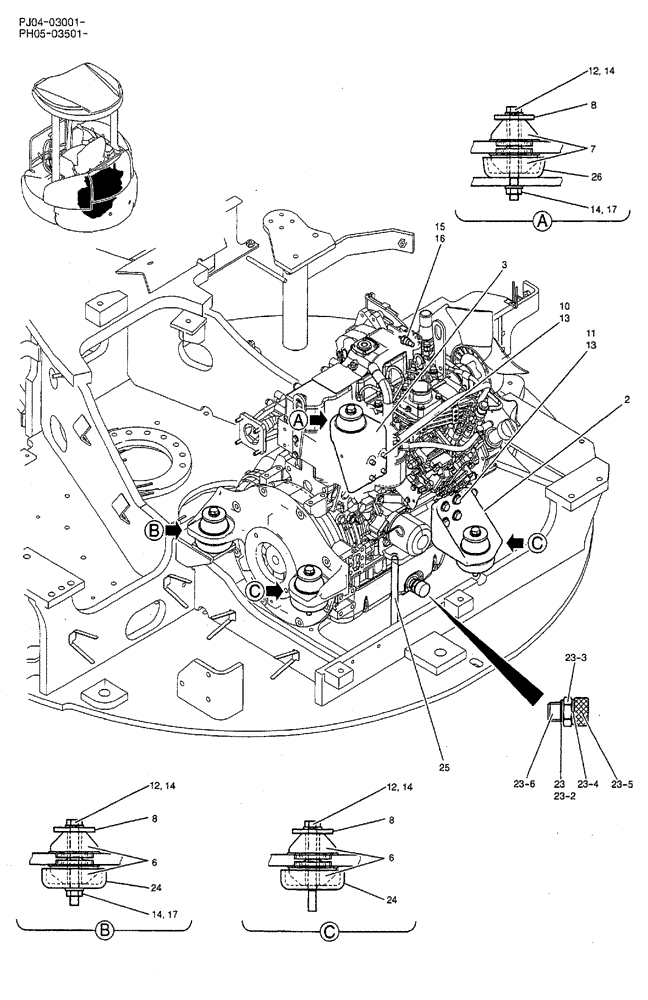

Схема запчастей Case CX50B - (02-006) - ENGINE INSTAL (05) - SUPERSTRUCTURE
12
12
11
23-5
3
23-3
17
14
24
23-4
8
17
23
2
13
23-2
12
14
16
14
14
8
15
26
6
13
14
10
6
24
7
23-6
25
8

Артикул

Название

Примечание

Количество

PH02P00008F1

ENGINE INSTAL

1шт.

2

PH02P01049P1

BRACKET

1шт.

3

PH02P01043P1

BRACKET

1шт.

6

PW02P01054D1

RUBBER MOUNTING

6шт.

7

PH02P01048D1

RUBBER MOUNTING

2шт.

8

PW01P01022P1

WASHER

4шт.

10

ZS18C10025

SCREW,Hex, M10 x 25mm

4шт.

11

ZS18C10030

SCREW,Hex, M10 x 30mm

CAP

4шт.

12

ZS18C12120

SCREW,Hex, M12 x 120mm

CAP

4шт.

13

ZW16H10000

WASHER

8шт.

14

ZW16H12000

WASHER

6шт.

15

PA24S00003P1

SENSOR,50-120 Degree C

(Used for Engine Temp Gauge)

1шт.

16

PA13E01027P1

PACKING

1шт.

17

ZN18C12010

NUT

2шт.

23

PW02P01057F1

PLUG,M22 x 1.5

ASSY

1шт.

23-2

LQ02PU1002S002

WASHER

1шт.

23-3

LQ02PU1002S003

BODY

1шт.

23-4

LQ02PU1002S004

O-RING

1шт.

23-5

LQ02PU1002S005

CAP

1шт.

23-6

LQ02PU1002S006

PLUG

1шт.

24

PW02P01041P1

COVER

3шт.

25

PU01P01035P1

HOSE

Hose Assy with Straight Coupler

1шт.

25

PM91Z01005P1

HOSE

Hose Assy with Elbow Coupler

1шт.

25

PW02P01047D1

HOSE,12mm ID x 250mm L

1шт.

26

PH02P01044P1

COVER

, Serial Range: PJ04-03001-PJ04-03089

1шт.

26

PH02P01044P1

COVER

, Serial Range: PH05-03501-PH05-03579

1шт.

PH02P01058P1

COVER

, Serial Range: PJ04-03090-PJ04-03103

1шт.

PH02P01058P1

COVER

, Serial Range: PH05-03580-PH05-03585

1шт.

PH02P01060P1

COVER

, Serial Range: PJ04-03104-PH05-03586

1шт.

Выбрано товаров: 29
