(04-007) - LAMP INSTAL (BOOM)

Запчасти Case CX50B (04-007) - LAMP INSTAL (BOOM) Attachments

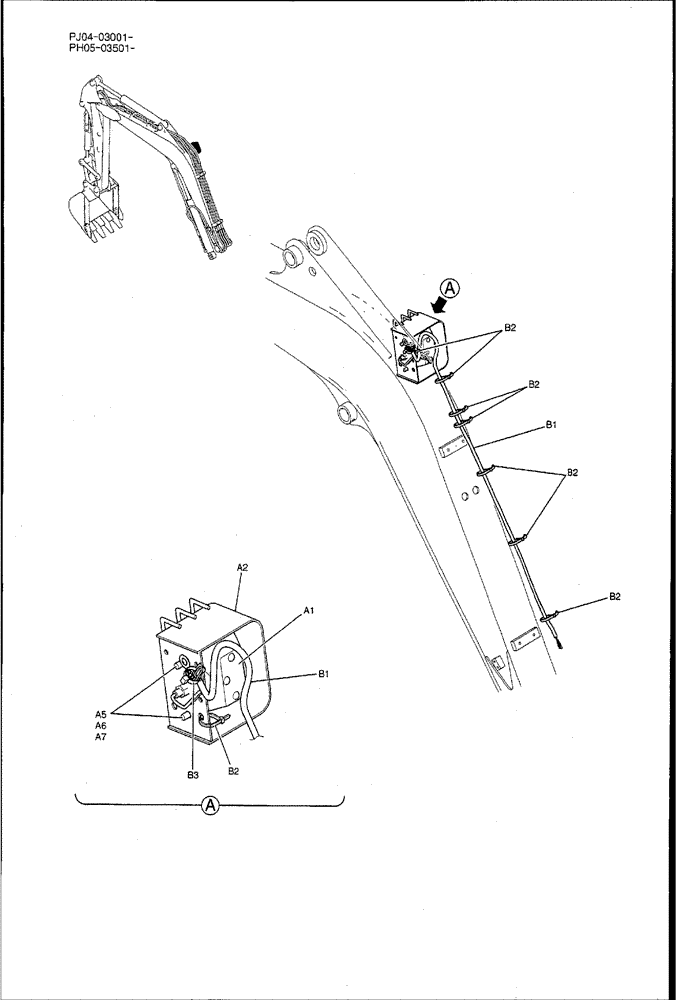

Схема запчастей Case CX50B - (04-007) - LAMP INSTAL (BOOM) Attachments
b2
b2
b2
b1
b1
b2
a1
a5
b3
a6
a2
a7
b2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

LIGHT INSTAL

1шт.

PM80E00004F1

COVER

LIGHT ASSY

1шт.

a1

PM80S00007F1

LIGHT ASSY.

SEE FIG. 02-079, Serial Range: PJ04-03001-PJ04-04588

1шт.

a1

PM80S00007F1

LIGHT ASSY.

SEE FIG. 02-079, Serial Range: PH05-03501-PH05-04172

1шт.

PM80S00008F1

LIGHT

ASSY, SEE FIG. 02-079, Start Serial: PJ04-04589

1шт.

PM80S00008F1

LIGHT

ASSY, SEE FIG. 02-079, Start Serial: PH05-04173

1шт.

a2

PM80E01011P1

COVER

1шт.

a5

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

2шт.

a6

ZW16X10000

WASHER

2шт.

a7

ZW26X10000

LOCK WASHER

2шт.

PH15E00004F1

HARNESS ASSY, BOOM

1шт.

b1

PM15E01012D4

HARNESS

1шт.

b2

PY01P01043D3

CABLE TIE,188mm L

8шт.

b3

YN03E01001D5

CLIP

1шт.
