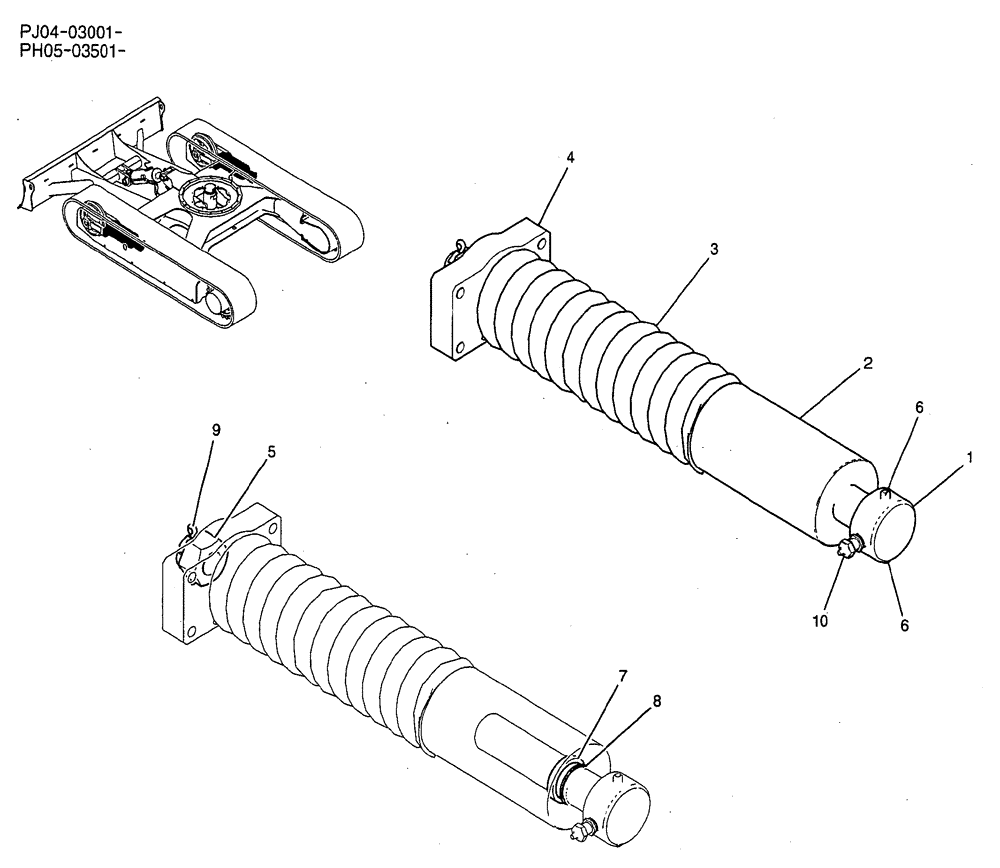

Запчасти Case CX50B (03-006) - IDLER ADJUSTER ASSEMBLY (04) - UNDERCARRIAGE

PY54D00005F1

IDLER

ADJUST ASSY

1шт.

1

PY01V01020P1

PISTON

1шт.

2

PY70V00002P1

CYLINDER

GREASE

1шт.

3

PY54D01013P1

SPRING

1шт.

4

PY54D01014P1

PLATE

1шт.

5

PY54D01015P1

NUT

1шт.

6

PX54D01014P1

PIN,10mm OD x 24mm L

2шт.

7

PH54D01010P1

OIL SEAL

1шт.

8

ZD12G04000

O-RING,39.40mm ID x 45.60mm OD x 3.10mm

1шт.

9

ZP16D06056

PIN

SPLIT

1шт.

10

PX80B01026P1

LUBE NIPPLE

1шт.
