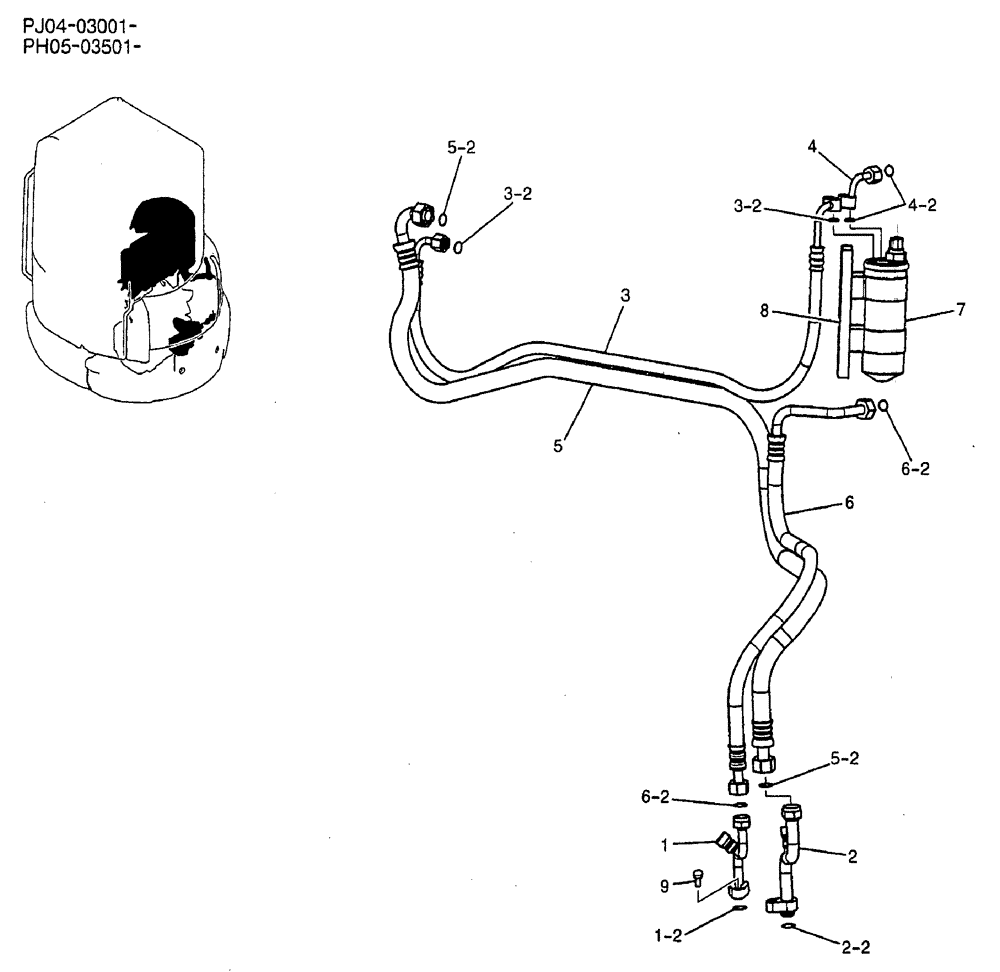

Запчасти Case CX50B (06-023) - DRYER ASSEMBLY, AIR OPTIONAL PARTS

PH96V00004F1

SET OF PARTS

DRIER ASSY, AIR

1шт.

1

PH20M01119F1

TUBE ASSY, Serial Range: PJ04-03001-PJ04-03620

1шт.

1

PH20M01119F1

TUBE ASSY, Serial Range: PH05-03501-PH05-03956

1шт.

PH20M01138F1

TUBE ASSY.

TUBE ASSY, Start Serial: PJ04-03621

1шт.

PH20M01138F1

TUBE ASSY.

TUBE ASSY, Start Serial: PH05-03957

1шт.

1-2

2445Z1604D4

O-RING

1шт.

2

PH20M01120F1

TUBE ASSY.

TUBE ASSY

1шт.

2-2

2445Z1604D5

O-RING

1шт.

3

PH20M01118F1

HOSE ASSY.

HOSE ASSY

1шт.

3-2

2445Z1604D6

O-RING

2шт.

4

PH20M01121F1

TUBE

TUBE ASSY

1шт.

4-2

2445Z1604D6

O-RING

2шт.

5

PH20M01117F1

HOSE ASSY.

HOSE ASSY

1шт.

5-2

2445Z1604D5

O-RING

2шт.

6

PH20M01116F1

HOSE ASSY.

HOSE ASSY

1шт.

6-2

2445Z1604D4

O-RING

2шт.

7

PW20M01071F1

RECEIVER-DRYER,Air Conditioner

RECEIVER ASSY

1шт.

8

PW20M01072P1

BRACKET

BRACKET

1шт.

9

PH20M01139P1

CAPSCREW

CAPSCREW, Start Serial: PJ04-03621

1шт.

9

PH20M01139P1

CAPSCREW

CAPSCREW, Start Serial: PH05-03957

1шт.
