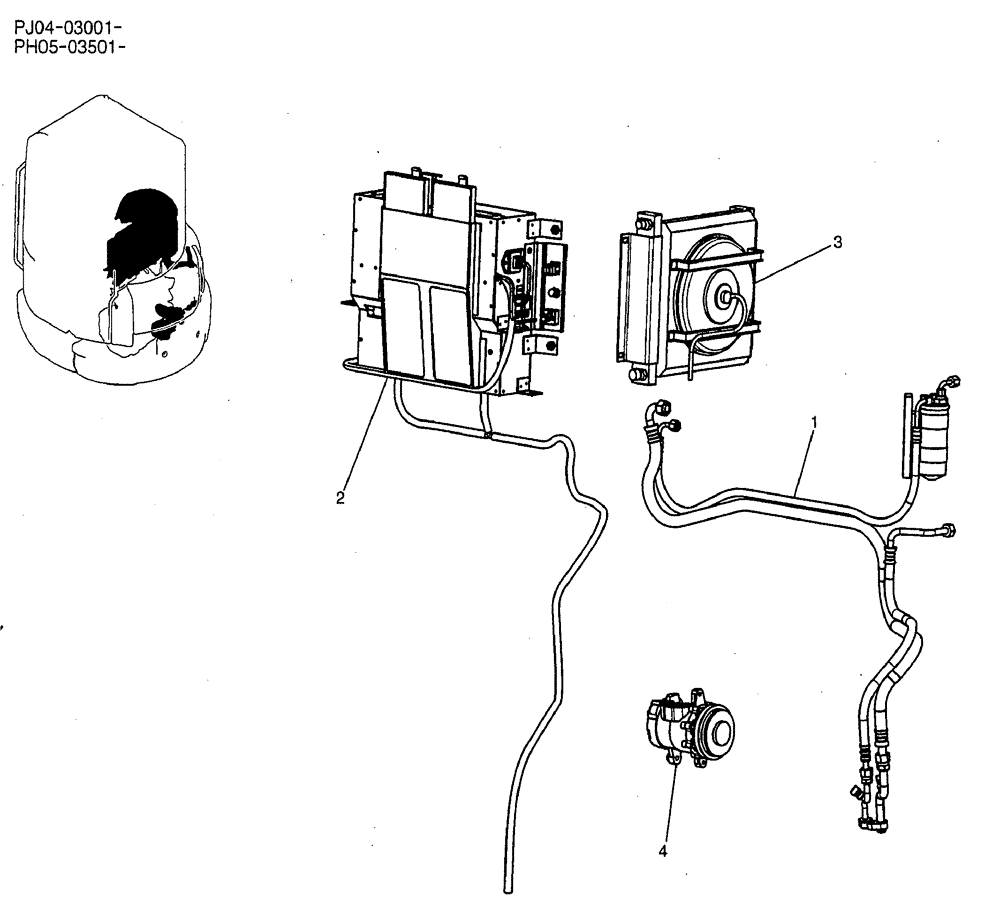

Запчасти Case CX50B (06-022) - COOLER ASSEMBLY OPTIONAL PARTS

.

COOLER ASSY PH20M00017F1

1шт.

1

PH96V00004F1

SET OF PARTS

DRIER ASSY, AIR, SEE FIG. 06-023

1шт.

2

PH20M00016F1

COOLER

COOLER ASSY, SEE FIG. 06-024

1шт.

3

PH20M01108F1

CONDENSER

ASSY

1шт.

3-1

PH20M01108S009

ELECTRIC MOTOR

Not Illustrated – Condenser Fan

1шт.

4

PH91V00004F1

AIRCOND. COMPRESSOR

COMPRESSOR ASSY

1шт.
