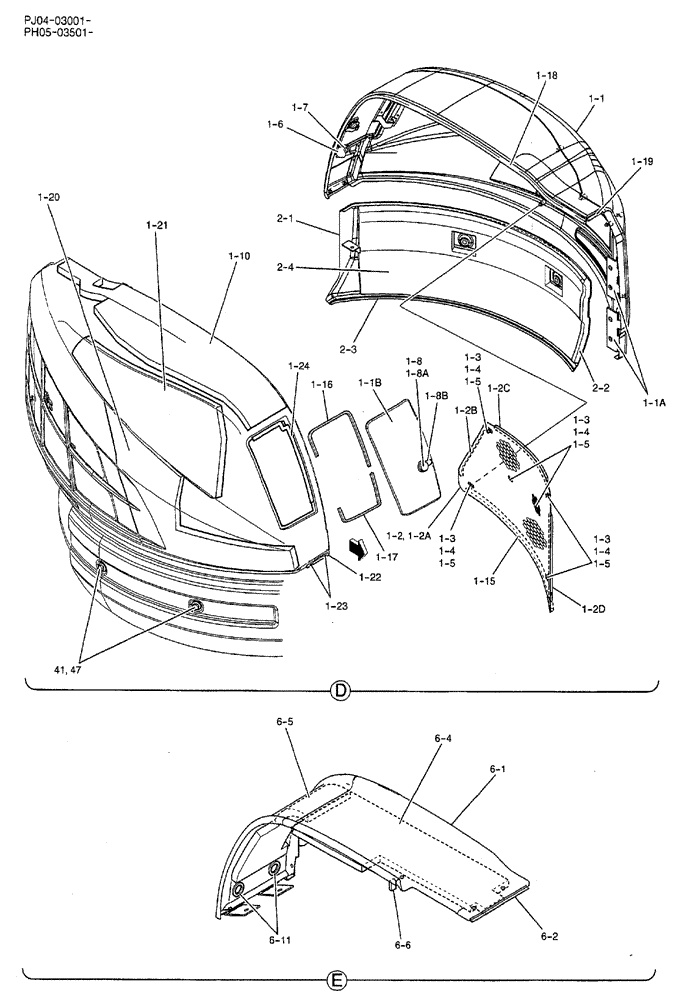

Запчасти Case CX50B (06-017) - GUARD INSTAL, CAB (COOLER) P/N PH21C01315P1 OPTIONAL PARTS

1-1

PH21C01315P1

COVER

1шт.

1-1a

PW21C01635P1

HINGE

2шт.

1-1b

PW21C01534P1

COVER

(Access Door)

1шт.

1-1b

PH21C01478P1

PLATE

(Weld to Access Door - PW21C01534P1 and Hinges PW21C01737P1)

1шт.

1-1b

PH21C01403P1

PLATE

(Weld to Guard and Hinge PW21C01737P1)

1шт.

1-1b

PW21C01737P1

HINGE

(Weld to Plate PH21C01478P1 and PH21C01403P1)

2шт.

1-2

PH21C01468F1

GUARD ASSY.

1шт.

1-2a

PH21C01544P1

GUARD

1шт.

1-2b

PH21C01409D2

RUBBER

1шт.

1-2c

PH21C01409D3

RUBBER

1шт.

1-2d

PH21C01409D4

RUBBER

1шт.

1-3

ZN18C06005

NUT

6шт.

1-4

ZW26X06000

LOCK WASHER

6шт.

1-5

YT21P01001P1

WASHER

6шт.

1-6

YN21C01321P1

STOP

STOPPER

1шт.

1-7

ZN17F10008

NUT

1шт.

1-8

PM21C01268F1

LOCK

ASSY

1шт.

1-8a

YR22C01025P2

LOCK

1шт.

1-8b

PM21C01269P1

PLATE

1шт.

1-10

PH21C01399P2

FOAM INSULATION

1шт.

1-15

PH21C01409D1

RUBBER

1шт.

1-16

PW21C01742P2

RUBBER

, Serial Range: PJ04-03001-PJ04-03204

1шт.

1-16

PW21C01742P2

RUBBER

, Serial Range: PH05-03501-PH05-03633

1шт.

PW21C01742P3

RUBBER

, Start Serial: PJ04-03205

1шт.

PW21C01742P3

RUBBER

, Start Serial: PH05-03634

1шт.

1-17

PW21C01740P2

RUBBER

, Serial Range: PJ04-03001-PJ04-03204

1шт.

1-17

PW21C01740P2

RUBBER

, Serial Range: PH05-03501-PH05-03633

1шт.

PW21C01740P3

RUBBER

, Start Serial: PJ04-03205

1шт.

PW21C01740P3

RUBBER

, Start Serial: PH05-03634

1шт.

1-18

PH21C01536P1

WEATHERSTRIP

1шт.

1-19

PH21C01537P1

WEATHERSTRIP

1шт.

1-20

PH21C01514P1

FOAM INSULATION

1шт.

1-21

PH21C01515P1

FOAM INSULATION

1шт.

1-22

PW21C01713P1

GUARD

1шт.

1-23

ZS41C05012

CAPSCREW,M5 x 12mm

MACHINE

2шт.

1-24

PE21C01135D8

SEAL

, Start Serial: PJ04-03205

1шт.

1-24

PE21C01135D8

SEAL

, Start Serial: PH05-03634

1шт.

2-1

PW21C01571P1

COVER ASSY

R/H

1шт.

2-2

PM21C01233P1

RUBBER

1шт.

2-3

2427P1836D32

WEATHERSTRIP

950mm Long (37-25/64 in)

1шт.

2-4

PW21C01629P1

FOAM INSULATION

1шт.

6-1

PH21C01517P1

COVER

1шт.

6-2

2427Z2106D1

WEATHERSTRIP

1шт.

6-4

PH21C01482P2

FOAM INSULATION

1шт.

6-5

PH21C01555P1

FOAM INSULATION

1шт.

6-6

PH21C01507P1

FOAM INSULATION

1шт.

6-11

PA06H01002P1

GROMMET

2шт.

41

YT21C01187P1

WASHER

2шт.

47

PA41C01005D3

BOLT

SEMS

2шт.
