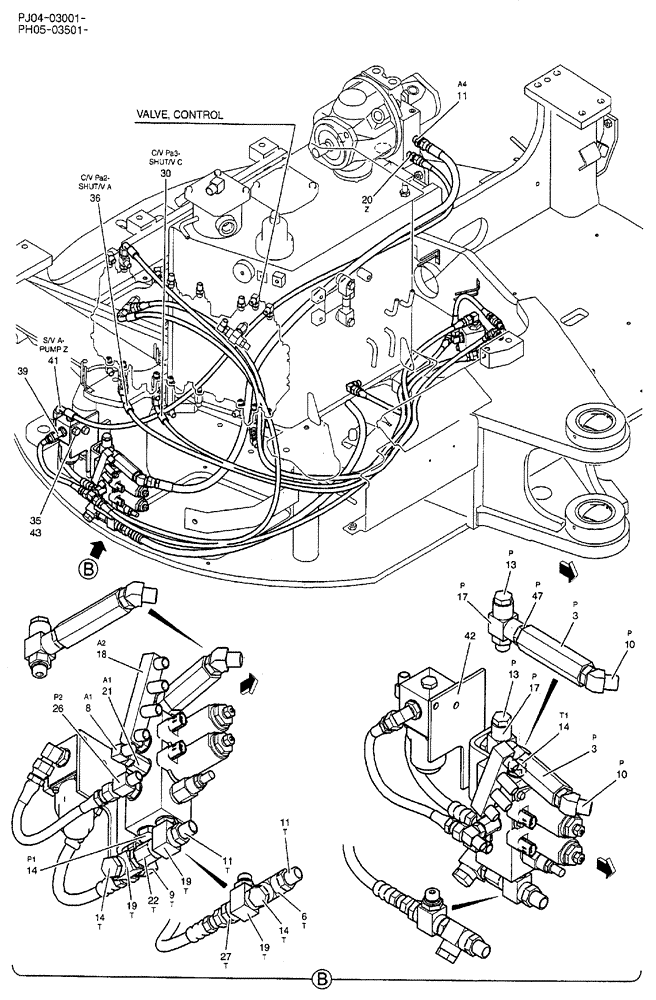

Запчасти Case CX50B (06-004) - CONTROL LINES, REMOTE (COOLER) P/N PY50V00001F1 OPTIONAL PARTS
№
Артикул
Название
Примечание
Количество
3
PY50V00001F1
FILTER
ASSY, INLINE, Serial Range: PJ04-03001-PJ04-04882
1шт.
3
PY50V00001F1
FILTER
ASSY, INLINE, Serial Range: PH05-03501-PH05-04288
1шт.
6
HH55Q06006G1
TEE
, Start Serial: PJ04-04883
1шт.
6
HH55Q06006G1
TEE
, Start Serial: PH05-04289
1шт.
8
HH35S04004G1
90 ELBOW
1шт.
9
HH35S04006G1
90 ELBOW,90 Degree, 1/4" PF x 3/8" PF x 60mm L
, Serial Range: PJ04-03001-PJ04-04882
1шт.
9
HH35S04006G1
90 ELBOW,90 Degree, 1/4" PF x 3/8" PF x 60mm L
, Serial Range: PH05-03501-PH05-04288
1шт.
10
HH45S06006G1
45 ELBOW
1шт.
11
HH25S06006G1
HYD CONNECTOR
2шт.
13
ZE72X04000
PLUG
1шт.
14
ZE72X06000
PLUG
3шт.
17
PW64H01011P1
TEE
1шт.
18
PH64H01057P1
CONNECTION
1шт.
19
YN64H01048P1
TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring
, Serial Range: PJ04-03001-PJ04-04882
2шт.
19
YN64H01048P1
TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring
, Serial Range: PH05-03501-PH05-04288
2шт.
YN64H01048P1
TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring
, Start Serial: PJ04-04883
1шт.
YN64H01048P1
TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring
, Start Serial: PH05-04289
1шт.
20
HH25S04004G1
HYD CONNECTOR
1шт.
21
2444Z2525
HYD CONNECTOR
1шт.
22
2444Z2891
HYD CONNECTOR
, Serial Range: PJ04-03001-PJ04-04882
1шт.
22
2444Z2891
HYD CONNECTOR
, Serial Range: PH05-03501-PH05-04288
1шт.
26
HH55L04004G2
TEE
1шт.
27
HH25S04006G1
90 ELBOW
, Start Serial: PJ04-04883
1шт.
27
HH25S04006G1
90 ELBOW
, Start Serial: PH05-04289
1шт.
30
HX34L04140DX
HOSE,6.3mm ID x 1400mm L
1шт.
35
ZW16H06000
WASHER
2шт.
36
HX34L04150DX
HOSE,6.3mm ID x 1500mm L
1шт.
39
HH35S04004G2
90 ELBOW
(WITH FILTER)
1шт.
41
HX34L04165DX
HOSE,6.3mm ID x 1650mm L
HOSE
1шт.
42
PH64H01053P1
BRACKET
BRACKET
1шт.
43
ZS18C06016
SCREW,Hex, M6 x 16mm
CAP
2шт.
45
2444Z3326
HYD CONNECTOR
CONNECTOR, Start Serial: PJ04-04883
1шт.
45
2444Z3326
HYD CONNECTOR
CONNECTOR, Start Serial: PH05-04289
1шт.
Выбрано товаров: 35
