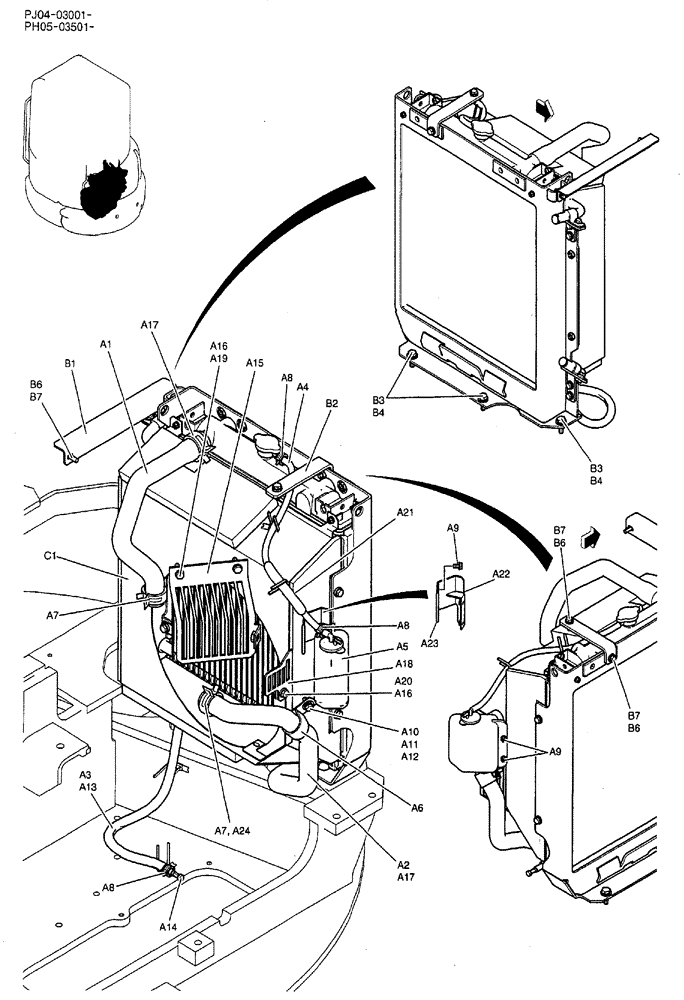

Запчасти Case CX50B (06-002) - RADIATOR INSTAL (COOLER) OPTIONAL PARTS

PH05P00024F1

RADIATOR GROUP

1шт.

a1

PH05P01221P1

RADIATOR HOSE

RADIATOR

1шт.

a2

PH05P0153P1

HOSE, RADIATOR

1шт.

a3

NSS

NOT SOLD SEPARAT

HOSE

1шт.

a4

NSS

NOT SOLD SEPARAT

HOSE

1шт.

a5

PU01P01024F1

RESERVOIR

TANK ASSY, WATER, SUB

1шт.

a6

ZC46X38014

CLIP

1шт.

a7

PH05P01088D3

CLIP

, Serial Range: PJ04-03001-PJ04-04199

2шт.

a7

PH05P01088D3

CLIP

, Serial Range: PH05-03501-PH05-04081

2шт.

PH05P01088D3

CLIP

, Start Serial: PJ04-04200

1шт.

PH05P01088D3

CLIP

, Start Serial: PH05-04082

1шт.

a8

NSS

NOT SOLD SEPARAT

CLIP

4шт.

a9

ZM61G06020

SEMS-BOLT

4шт.

a10

ZS18C08020

SCREW,Hex, M8 x 20mm

1шт.

all

ZW26X08000

LOCK WASHER

Lock

1шт.

a12

YR21C01161P1

WASHER,9mm ID x 22mm OD x 2.3mm Thk

1шт.

a13

PU13E01002DU

TUBE

1шт.

a14

PW05P01117P1

PLUG

1шт.

a15

PH05P01262P1

GUARD

1шт.

a16

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

4шт.

a17

PH05P01179P1

CLIP,35.5mm - 45.7mm

2шт.

a18

PH05P01285P1

GUARD

GUARD

1шт.

a19

ZS18C08030

SCREW,Hex, M8 x 30mm

CAP

2шт.

a20

ZS18C08016

SCREW,Hex, M8 x 16mm

CAP

2шт.

a21

PU13E01002D4

TUBE

1шт.

a22

PH05P01282P1

BRACKET

BRACKET

1шт.

a23

YT02C01515D4

SOFT TRIM

TRIM

1шт.

a24

ZC16X03300

FASTENER

CLIP, Start Serial: PJ04-04200

1шт.

a24

ZC16X03300

FASTENER

CLIP, Start Serial: PH05-04082

1шт.

PH05P00018F1

RADIATOR INSTAL

1шт.

b1

PH05P01231P1

STAY

1шт.

b3

ZS18C10030

SCREW,Hex, M10 x 30mm

CAP

3шт.

b4

ZW16H10000

WASHER

WASHER

3шт.

b6

ZS18C08025

SCREW,Hex, M8 x 25mm

CAP

4шт.

b7

ZW16H08000

WASHER

4шт.

c1

PH05P00023F1

RADIATOR

ASSY, SEE FIG. 02-008

1шт.
