(04-002) - BOOM ASSEMBLY, STANDARD 2.19M (9FT 2IN) - ASN PJ04-03573

Запчасти Case CX50B (04-002) - BOOM ASSEMBLY, STANDARD 2.19M (9FT 2IN) - ASN PJ04-03573 Attachments

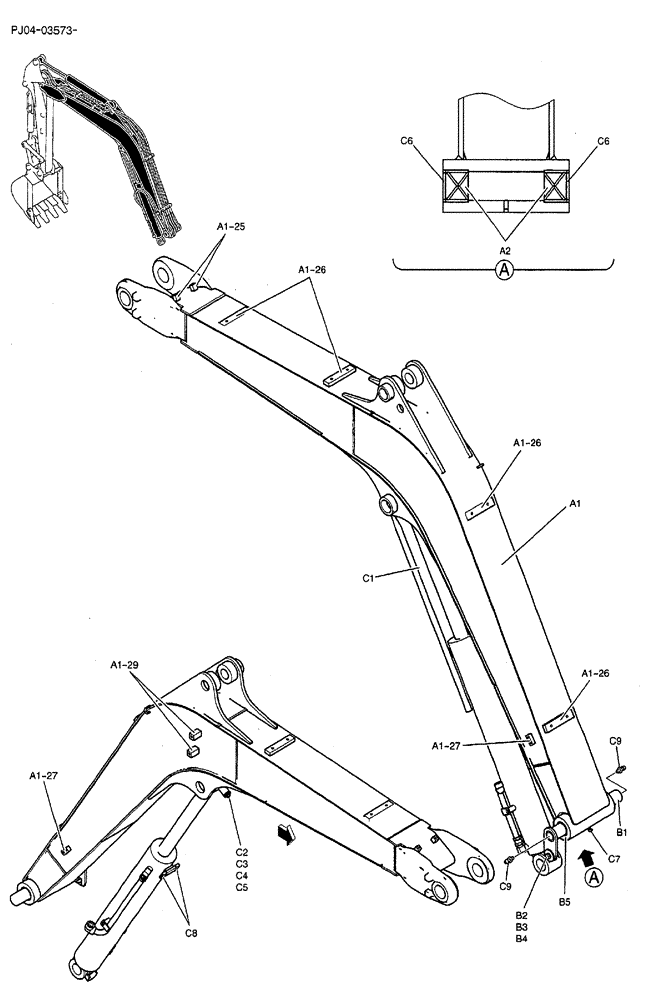

Схема запчастей Case CX50B - (04-002) - BOOM ASSEMBLY, STANDARD 2.19M (9FT 2IN) - ASN PJ04-03573 Attachments
b2
c3
c6
b5
c7
a1-29
b1
a1-26
c8
a1-26
a2
c1
a1
a1-25
c9
a1-27
b3
a1-27
a1-26
c5
c9
c2
c6
c4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY02B00091F1

BOOM

HOE

1шт.

a1

NSS

NOT SOLD SEPARAT

BOOM, HOE

1шт.

a1-25

PH02B01043P1

BLOCK

TAPPED

2шт.

a1-26

PH02B01068P1

BLOCK

TAPPED

4шт.

a1-27

PH02B01061P1

BLOCK

TAPPED

2шт.

a1-29

R16T0184D5

BLOCK

TAPPED

2шт.

a2

PH02B01045P2

BUSHING,50mm ID x 60mm OD x 45mm L

2шт.

PH02B00034F1

BOOM

INSTAL

1шт.

b1

PH02B01046P1

PIN,50mm OD x 386mm L

1шт.

b2

2418T17895

WASHER

1шт.

b3

ZS18C12025

SCREW,Hex, M12 x 25mm

CAP

1шт.

b4

ZW26X12000

LOCK WASHER

1шт.

b5

PH02B01069P1

SHIM,0.5mm Thk

1шт.

PY02B00090F1

ROD, CONNECTING

BOOM GROUP

1шт.

c1

PY02B01189P1

COVER

COVER

1шт.

c2

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

c3

ZW26X10000

LOCK WASHER

1шт.

c4

ZW16H10000

WASHER

WASHER

1шт.

c5

PN03M01009D2

WASHER

1шт.

c6

2445R138D19

SEAL,50mm ID x 60mm OD x 4mm Thk

DUST

2шт.

c7

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

1шт.

c8

PH02B01004P1

TUBE

2шт.

c9

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

, Start Serial: PJ04-03582

2шт.
