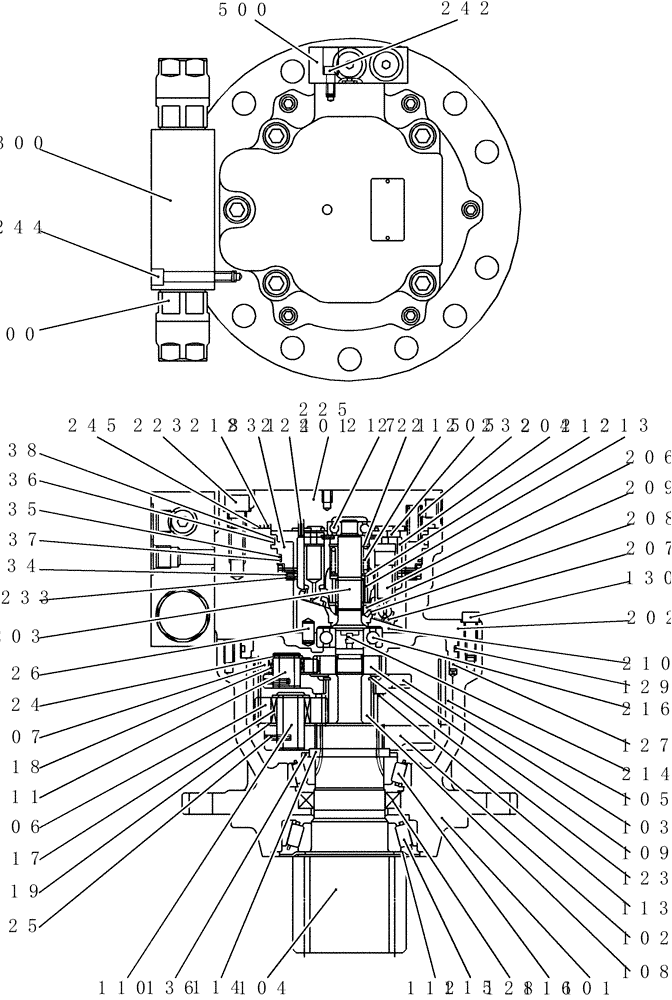

Запчасти Case CX50B (HC300) - MOTOR ASSEMBLY (SWING) (35) - HYDRAULIC SYSTEMS

PY15V00012F1

HYDRAULIC MOTOR,22.1CC

Assy (swing)

1шт.

101

NSS

NOT SOLD SEPARAT

Body

1шт.

102

NSS

NOT SOLD SEPARAT

Carrier

1шт.

103

NSS

NOT SOLD SEPARAT

Carrier

1шт.

104

NSS

NOT SOLD SEPARAT

Shaft

1шт.

105

NSS

NOT SOLD SEPARAT

Gear

1шт.

106

NSS

NOT SOLD SEPARAT

Gear

4шт.

107

NSS

NOT SOLD SEPARAT

Gear

3шт.

108

NSS

NOT SOLD SEPARAT

Gear

1шт.

109

PY15V00012S109

GEAR

1шт.

110

NSS

NOT SOLD SEPARAT

Pin

4шт.

111

NSS

NOT SOLD SEPARAT

Pin

3шт.

112

NSS

NOT SOLD SEPARAT

Ring

1шт.

113

PY15V00012S113

COLLAR

1шт.

114

NSS

NOT SOLD SEPARAT

Collar

2шт.

115

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

116

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

117

NSS

NOT SOLD SEPARAT

Bearing, Needle

68шт.

118

NSS

NOT SOLD SEPARAT

Bearing, Needle

69шт.

119

NSS

NOT SOLD SEPARAT

Washer, Thrust

14шт.

123

ZR16X03000

SNAP RING

1шт.

124

ZR16X02000

RING

7шт.

125

NSS

NOT SOLD SEPARAT

Pin, Spring

7шт.

127

NSS

NOT SOLD SEPARAT

Pin

4шт.

128

NSS

NOT SOLD SEPARAT

Oil Seal

1шт.

129

PY15V00012S129

O-RING

1шт.

130

ZS23C08025

SCREW,Hex Socket Head, M8 x 25mm

Cap

5шт.

136

PY15V00012S136

RING

1шт.

201

NSS

NOT SOLD SEPARAT

Body

1шт.

202

NSS

NOT SOLD SEPARAT

Body

1шт.

203

NSS

NOT SOLD SEPARAT

Shaft

1шт.

204

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

205

NSS

NOT SOLD SEPARAT

Plate, Valve

1шт.

206

NSS

NOT SOLD SEPARAT

Piston

9шт.

207

NSS

NOT SOLD SEPARAT

Shoe

9шт.

208

NSS

NOT SOLD SEPARAT

Holder

1шт.

209

NSS

NOT SOLD SEPARAT

Holder

1шт.

210

NSS

NOT SOLD SEPARAT

Plate, Shoe

1шт.

212

NSS

NOT SOLD SEPARAT

Retainer

2шт.

213

NSS

NOT SOLD SEPARAT

Pin

3шт.

214

PM15V00008S014

FILTER

2шт.

215

NSS

NOT SOLD SEPARAT

Spring

1шт.

216

PY15V00012S216

BALL BEARING

1шт.

217

PR15V00004S074

BEARING

Ball

1шт.

218

ZD12G12000

O-RING,3.1mm Thk x 119.4mm ID, 90 Duro

O-ring

1шт.

221

ZR26X02800

RING

Retaining

1шт.

223

ZS23C12035

SCREW,Hex Socket Head, M12 x 35mm

Cap

5шт.

224

NSS

NOT SOLD SEPARAT

Pin, Spring

1шт.

225

PM15V00008S022

PIN

1шт.

226

NSS

NOT SOLD SEPARAT

Pin

1шт.

231

NSS

NOT SOLD SEPARAT

Piston, Brake

1шт.

232

NSS

NOT SOLD SEPARAT

Spring

12шт.

233

NSS

NOT SOLD SEPARAT

Plate, Friction

2шт.

234

NSS

NOT SOLD SEPARAT

Plate, Separator

2шт.

235

ZD12G10000

O-RING,99.40mm ID x 105.60mm OD x 3.10mm

1шт.

236

ZD12G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

237

ZD75G10000

BACK-UP RING

1шт.

238

ZD75G11000

RING

Back Up

1шт.

242

ZS23C06015

SCREW,Hex Socket Head, M6 x 15mm

Cap

4шт.

244

NSS

NOT SOLD SEPARAT

Capscrew

4шт.

245

ZD12P01800

O-RING

2шт.

300

PY20V00003F1

VALVE

Assy, Relief ( See HC310)

1шт.

400

PY22V00009F1

VALVE

Assy, Relief ( See HC315)

2шт.

500

PY64H00003F1

HYDRAULIC VALVE

Assy, Reduction ( See HC320)

1шт.

PY15V00012R600

REPAIR KIT

Consists Of Ref. 101x1, 104x1, 105x1, 112x1, 114x2, 115x1, 116x1, 127x4, 128x1

1шт.

PY15V00012R610

REPAIR KIT

Consists Of Ref. 102x1, 106x4, 110x4,117x68, 119x14, 125x7

1шт.

PY15V00012R620

REPAIR KIT

Consists Of Ref. 103x1, 107x3, 108x1, 111x3, 118x69, 119x14, 123x1, 124x7, 125x7

1шт.

PY15V00012R630

REPAIR KIT

Consists Of Ref. 201x1, 217x1, 224x1, 245x2

1шт.

PY15V00012R640

REPAIR KIT

Consists Of Ref. 204x1, 205x1, 206x9, 207x9, 208x1, 209x1, 212x2, 213x3, 215x1, 221x1

1шт.

PY15V00012R650

REPAIR KIT

Consists Of Ref. 210x1, 226x1

1шт.

PY15V00012R660

REPAIR KIT

Consists Of Ref. 218x1, 235x1, 236x1, 237x1, 238x1, 245x2

1шт.
