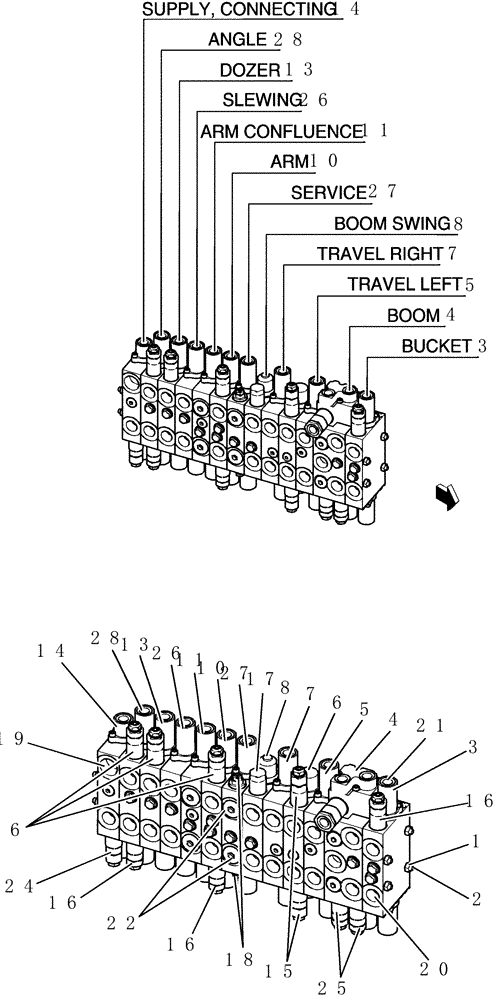

Запчасти Case CX50B (HC001-72) - VALVE ASSEMBLY, CONTROL (35) - HYDRAULIC SYSTEMS

PH30V00052F3

VALVE

Control

1шт.

1

ZN18C08007

NUT

8шт.

2

PH30V00051S002

SCREW

Rod, Tie

4шт.

3

PH30V00053F1

VALVE

Assy, Control (bucket) ( See HC012)

1шт.

4

PH30V00054F1

VALVE

Assy, Control (boom) ( See HC011)

1шт.

5

PH30V00055F1

VALVE

Assy, Control (travel Left) ( See HC010)

1шт.

6

PH30V00056F1

VALVE

Assy, Control (inlet) ( See HC013)

1шт.

7

PH30V00057F1

VALVE

Assy, Control (travel Right) ( See HC008)

1шт.

8

PH30V00058F1

VALVE

Control (boom Swing) ( See HC007)

1шт.

10

PH30V00060F1

VALVE

Assy, Control (arm) ( See HC005)

1шт.

11

PH30V00061F1

VALVE

Assy, Control (arm Confluence) ( See HC004)

1шт.

13

PH30V00063F1

VALVE

Assy, Control (dozer) ( See HC002)

1шт.

14

PH30V00064F1

VALVE

Assy, Control (supply, Connecting) ( See HC009)

1шт.

15

PH22V00014F1

VALVE

Assy, Main Relief ( See HC014)

2шт.

16

PY22V00010F1

VALVE

Assy, Relief ( See HC015)

6шт.

17

PH22V00013F1

VALVE

Assy, Antivoid ( See HC023)

1шт.

18

PH50T00002F1

PLUG

Shut Off ( See HC024)

2шт.

19

2436U2937S17

PLUG

1шт.

20

YR30V00014S010

PLUG

22шт.

21

2436U2937S18

PLUG

22шт.

22

YR30V00024S014

PLUG

Assy

2шт.

24

PH22V00014F2

VALVE

Assy, Main Relief ( See HC014)

1шт.

25

PY22V00010F2

VALVE

Assy, Relief ( See HC015)

2шт.

26

PH30V00062F2

VALVE

Control (slewing) ( See HC003)

1шт.

27

PH30V00059F2

VALVE

Assy, Control (service) ( See HC006)

1шт.

28

PH30V00067F2

CONTROL VALVE

Control (angle) ( See HC002)

1шт.
