(719-17[1]) - CONTROL LINES, REMOTE WITH A PUMP Z PORT

Запчасти Case CX50B (719-17[1]) - CONTROL LINES, REMOTE WITH A PUMP Z PORT (35) - HYDRAULIC SYSTEMS

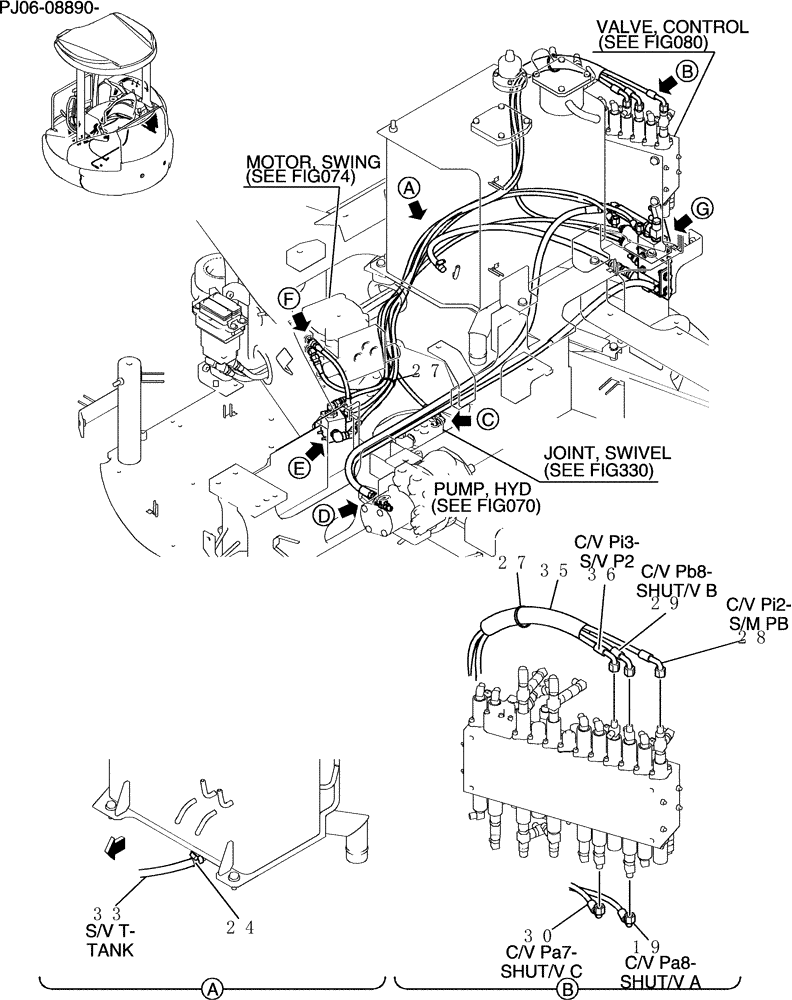

Схема запчастей Case CX50B - (719-17[1]) - CONTROL LINES, REMOTE WITH A PUMP Z PORT (35) - HYDRAULIC SYSTEMS
30
27
27
33
35
36
24
19
28
29
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY64H00061F1

Control, Valve

1шт.

19

HX34L04145DX

HOSE,6.3mm ID x 1450mm L

1шт.

24

ZC16X01800

CLIP

1шт.

27

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

1шт.

28

HX34L04200DX

HOSE

1шт.

29

HX34L04185DX

HOSE,6.3mm ID x 1850mm L

1шт.

30

HX34L04140DX

HOSE,6.3mm ID x 1400mm L

1шт.

33

PW68H01023D3

HOSE,9.5mm ID x 880mm L

1шт.

35

2414Z199D30

PROTECTIVE SLEEVE

Hose

1шт.

36

HX34L04135DX

HOSE,6.3mm ID x 1350mm L

1шт.
