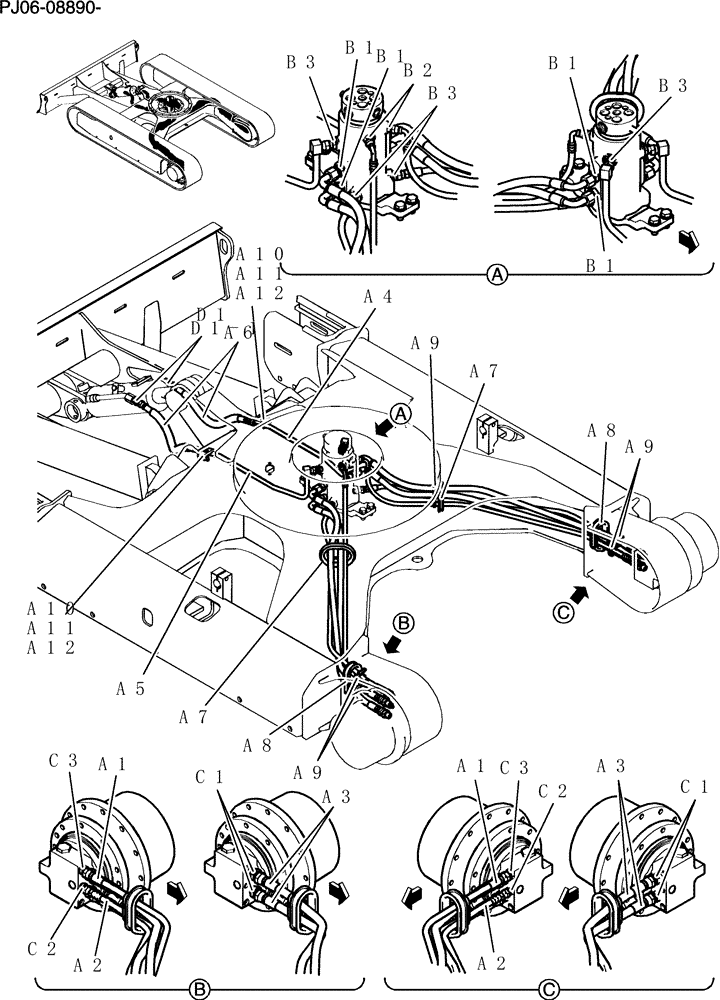

Запчасти Case CX50B (400-14[1]) - HYD LINES, LOW (35) - HYDRAULIC SYSTEMS

PY02H00013F1

Hyd, Low

1шт.

a1

HX23L06110DY

HOSE,9.5mm ID x 1100mm L

2шт.

a2

HX33L04120DX

HOSE,6.3mm ID x 1200mm L

2шт.

a3

HX35L08115DX

HOSE,12.7mm ID x 1150mm L

4шт.

a4

PY02H01110P1

TUBE

1шт.

a5

PY02H01111P1

TUBE

1шт.

a6

PH02H01051D4

HOSE,9.5mm ID x 420mm L

2шт.

a7

PY02H01113P1

GROMMET

2шт.

a8

PH02H01136P1

GROMMET

2шт.

a9

PY01P01043D8

CABLE TIE,102mm L

6шт.

a10

ZC26X15009

CLAMP

2шт.

a11

ZS18C08040

SCREW,Hex, M8 x 40mm

Cap

2шт.

a12

ZW26X08000

LOCK WASHER

Lock

2шт.

PH19H00007F1

Hyd, Swivel

1шт.

b1

HH25S08008G1

HYD CONNECTOR

4шт.

b2

HH25S04004G1

HYD CONNECTOR

2шт.

b3

HH25S06006G1

HYD CONNECTOR

4шт.

PH12H00005F1

Hyd, Propel

1шт.

c1

HH25S08008G1

HYD CONNECTOR

4шт.

c2

HH25S04002G1

CONNECTION

Connector

2шт.

c3

HH25S06004G3

HYD CONNECTOR

2шт.

PH13H00002F1

LINE

Hyd, Cylinder

1шт.

d1

HH25S06006G1

HYD CONNECTOR

2шт.

d1-1

ZD12P01400

O-RING

1шт.
