(705-01A[1]) - ENGINE INSTAL COOLER

Запчасти Case CX50B (705-01A[1]) - ENGINE INSTAL COOLER (10) - ENGINE

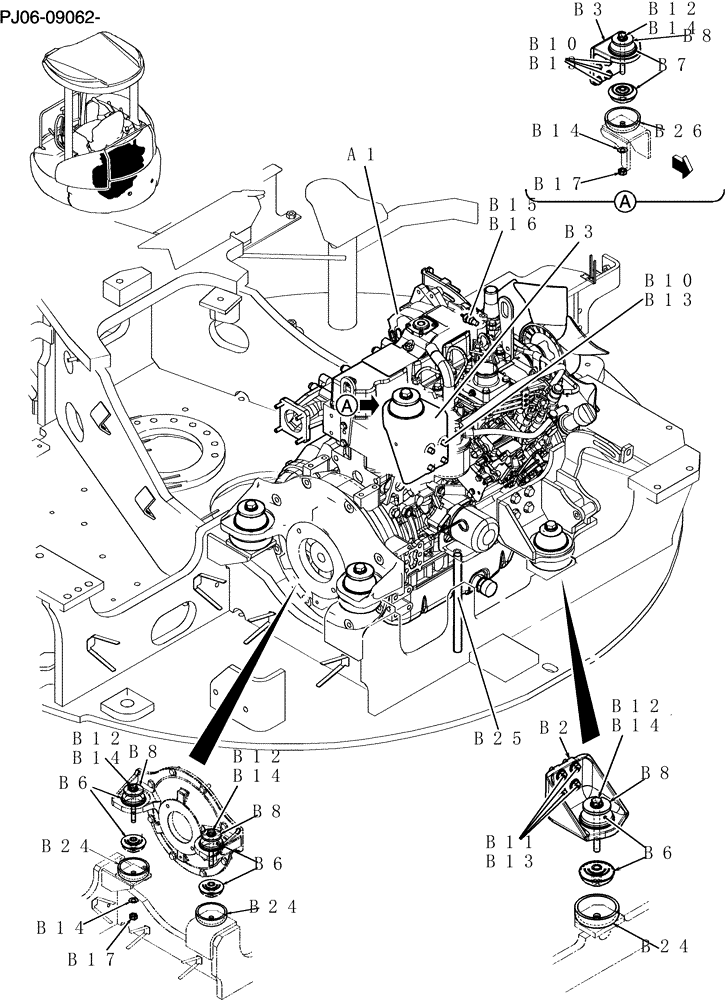

Схема запчастей Case CX50B - (705-01A[1]) - ENGINE INSTAL COOLER (10) - ENGINE
b25
b13
b8
b7
b14
b8
b14
b12
b17
b14
b8
b6
b3
b10
b2
b14
b6
b16
b12
a1
b26
b24
b12
b17
b24
b8
b12
b13
b10
b6
b3
b14
b13
b14
b11
b24
b15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY02P00022F1

Instal

1шт.

a1

PH02P00015F1

ENGINE

Engine Assy (See Fig No.20-01-1)

1шт.

PY02P00023F1

Instal

1шт.

b2

PH02P01049P1

BRACKET

1шт.

b3

PH02P01043P1

BRACKET

1шт.

b6

PW02P01054D1

RUBBER MOUNTING

6шт.

b7

PH02P01048D1

RUBBER MOUNTING

2шт.

b8

PW01P01022P1

WASHER

4шт.

b10

ZS18C10025

SCREW,Hex, M10 x 25mm

4шт.

b11

ZS18C10030

SCREW,Hex, M10 x 30mm

Cap

4шт.

b12

ZS18C12120

SCREW,Hex, M12 x 120mm

Cap

4шт.

b13

ZW16H10000

WASHER

8шт.

b14

ZW16H12000

WASHER

6шт.

b15

PA24S00003P1

SENSOR,50-120 Degree C

(Used for Engine Temp Gauge)

1шт.

b16

PA13E01027P1

PACKING

1шт.

b17

ZN18C12010

NUT

2шт.

b24

PW02P01041P1

COVER

3шт.

b25

PW02P01047D1

HOSE,12mm ID x 250mm L

1шт.

b26

PH02P01060P1

COVER

1шт.
