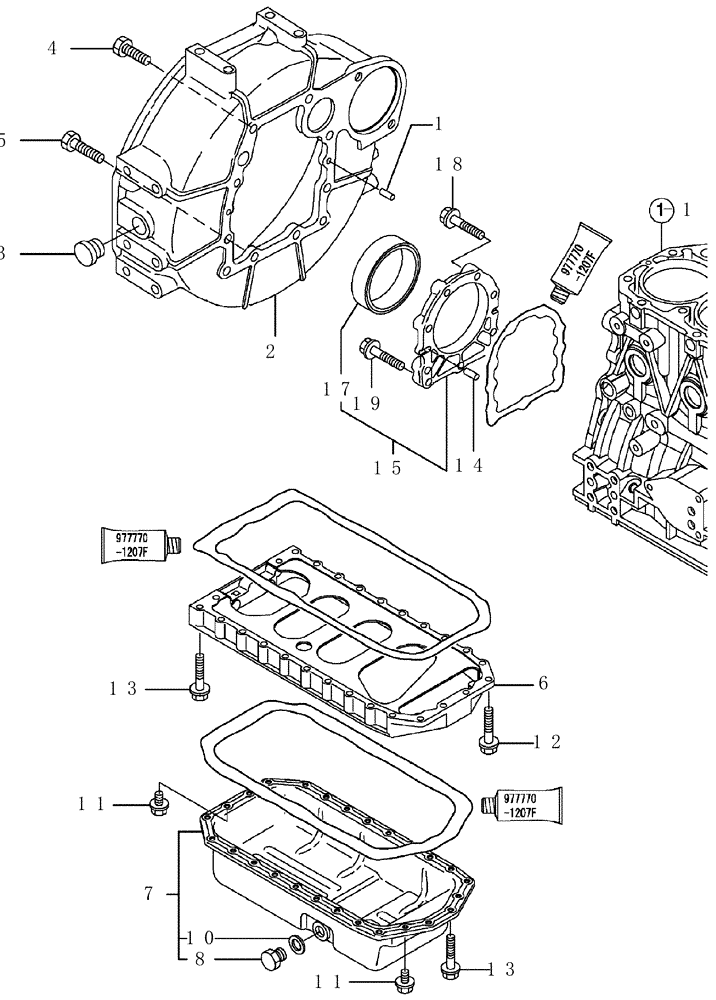

Запчасти Case CX50B (4TNV88-BXYB-6[1]) - FLYWHEEL HOUSING & OIL SUMP (10) - ENGINE

1

VV12910001580

PIN,M8 x 16mm

Parallel 8 x 16

2шт.

2

VV12961201600

HOUSING

Flywheel

1шт.

3

VV11962001750

CAP

Flywheel Cover

1шт.

4

VV26206100252

BOLT,M10 x 25mm

M 10 x 25

6шт.

5

VV26206100302

BOLT,M10 x 30mm

M 10 x 30

4шт.

6

VV12940001730

SPACER

Oil Sump

1шт.

7

VV12940001770

SUMP

Pump Assy, Lub. Oil

1шт.

8

VV11964001640

DRAIN PLUG,M22

Drain M22

1шт.

10

VV22190220002

SEAL,21.75mm ID x 30mm OD x 2.5mm Thk

Washer 22s

1шт.

11

VV26106080162

BOLT,M8 x 16mm

M 8 x 16 Plated

4шт.

12

VV26106080252

BOLT,M8 x 25mm

M 8 x 25 Plated

2шт.

13

VV26106080452

BOLT,M8 x 45mm

M 8 x 45 Plated

24шт.

14

VV12910001580

PIN,M8 x 16mm

Parallel 8 x16

2шт.

15

VV12910001640

BOX

Case Assy, Oil Seal

1шт.

17

VV12979501780

OIL SEAL

1шт.

18

VV12948601670

BOLT,M8 x 30mm

M 8 x 30, Collar Hd

6шт.

19

VV26106080352

BOLT,M8 x 35mm

M 8 x 35 Plated

3шт.
