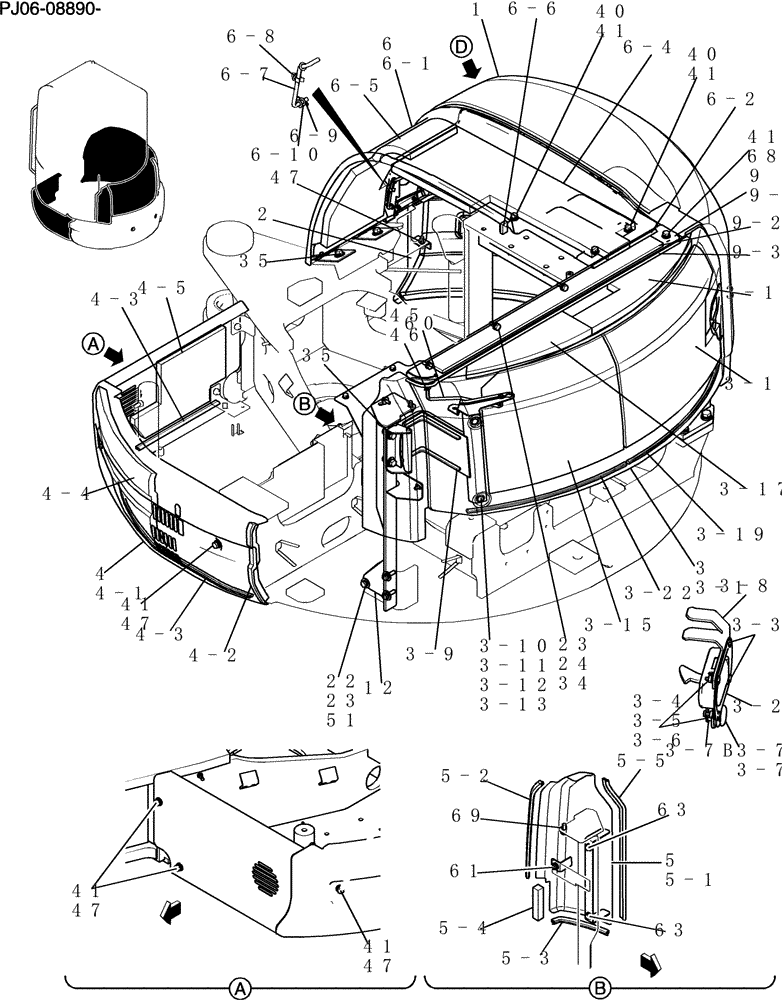

Запчасти Case CX50B (242-01[1]) - GUARD INSTAL CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

PH21C00018F1

Instal

1шт.

1

PH21C00015F1

LATHE

Side

1шт.

2

PW21C01801F1

COVER ASSY

1шт.

3

PH22C00009F1

COVER ASSY

Bonnet

1шт.

3-1

PH22C01136P1

COWLING

Bonnet

1шт.

3-2

PW22C01067P1

LOCK

1шт.

3-3

PH22C01023P1

BOLT

4шт.

3-4

ZN18C05004

NUT

4шт.

3-5

ZW26X05000

LOCK WASHER

Lock

4шт.

3-6

ZW16H05000

WASHER

4шт.

3-7

PM21C01268F1

LOCK

Assy

1шт.

3-7a

YR22C01025P2

LOCK

1шт.

3-7b

PM21C01269P1

PLATE

1шт.

3-8

PW22C01160P2

BRACKET

Guide

1шт.

3-9

PH22C01108P1

HINGE

1шт.

3-10

PW21C01413P1

CAPSCREW

Cap

2шт.

3-11

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

3-12

ZW26X08000

LOCK WASHER

Lock

2шт.

3-13

ZN18C08007

NUT

2шт.

3-14

PH22C01182P2

FOAM INSULATION

1шт.

3-15

PH22C01183P1

FOAM INSULATION

1шт.

3-16

PH22C01186P1

FOAM INSULATION

1шт.

3-17

PH22C01185P1

FOAM INSULATION

1шт.

3-19

PH21C01160D3

WEATHERSTRIP

1шт.

3-22

PM22C01013D4

WEATHERSEAL STRIP

1шт.

4

PH21C00016F1

COVER ASSY

L/h

1шт.

4-1

PH21C01576P1

COVER ASSY

1шт.

4-2

PM21C01233P1

RUBBER

1шт.

4-3

YT21C01039DM

WEATHERSTRIP

1шт.

4-4

PW21C01683P1

FOAM INSULATION

1шт.

4-5

PH21C01398P1

FOAM INSULATION

1шт.

5

PH21C01411F1

COVER ASSY

1шт.

5-1

PH21C01412P1

COVER

1шт.

5-2

YN21C01528DA

WEATHERSTRIP

1шт.

5-3

YN21C01136D7

WEATHERSTRIP

1шт.

5-4

PW21C01718D1

RUBBER

1шт.

5-5

YT21C01039DL

WEATHERSTRIP

1шт.

6

PH21C01470F1

COVER

Guard Assy

1шт.

6-1

PH21C01440P1

COVER

1шт.

6-2

2427Z2106D1

WEATHERSTRIP

1шт.

6-4

PH21C01482P2

FOAM INSULATION

1шт.

6-5

PH21C01483P1

FOAM INSULATION

1шт.

6-6

PH21C01507P1

FOAM INSULATION

1шт.

6-7

PH21C01460P1

STAY

1шт.

6-8

YR21C01123P1

COLLAR

Clip

1шт.

6-9

2419R9D2

COTTER PIN

Snap

1шт.

6-10

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

9

PH21C01352F1

COVER ASSY

1шт.

9-1

PH21C01416P1

COVER

1шт.

9-2

PH21C01400P1

FOAM INSULATION

1шт.

9-3

PH21C01531P1

WEATHERSTRIP

1шт.

12

PH21C01324P3

STAY

1шт.

22

ZS18C10035

SCREW,Hex, M10 x 35mm

Cap

3шт.

23

ZW26X10000

LOCK WASHER

6шт.

24

ZW16P10000

WASHER

3шт.

34

ZS18C10025

SCREW,Hex, M10 x 25mm

3шт.

35

YN02C01299P1

BOLT

Sems

4шт.

40

PA41C01005D1

BOLT

Sems

3шт.

41

YT21C01187P2

WASHER

8шт.

45

ZW16P08000

WASHER

1шт.

46

2419R9D2

COTTER PIN

Snap

1шт.

47

PA41C01005D3

BOLT

Sems

5шт.

51

2418T12346

WASHER

3шт.

60

PH22C01194P1

STAY

1шт.

61

PA21C01133P1

BOLT

Sems

1шт.

63

PM21C01202P1

BOLT

Sems

2шт.

68

PA41C01005D2

BOLT (STEP)

Sems

1шт.

69

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

1шт.
