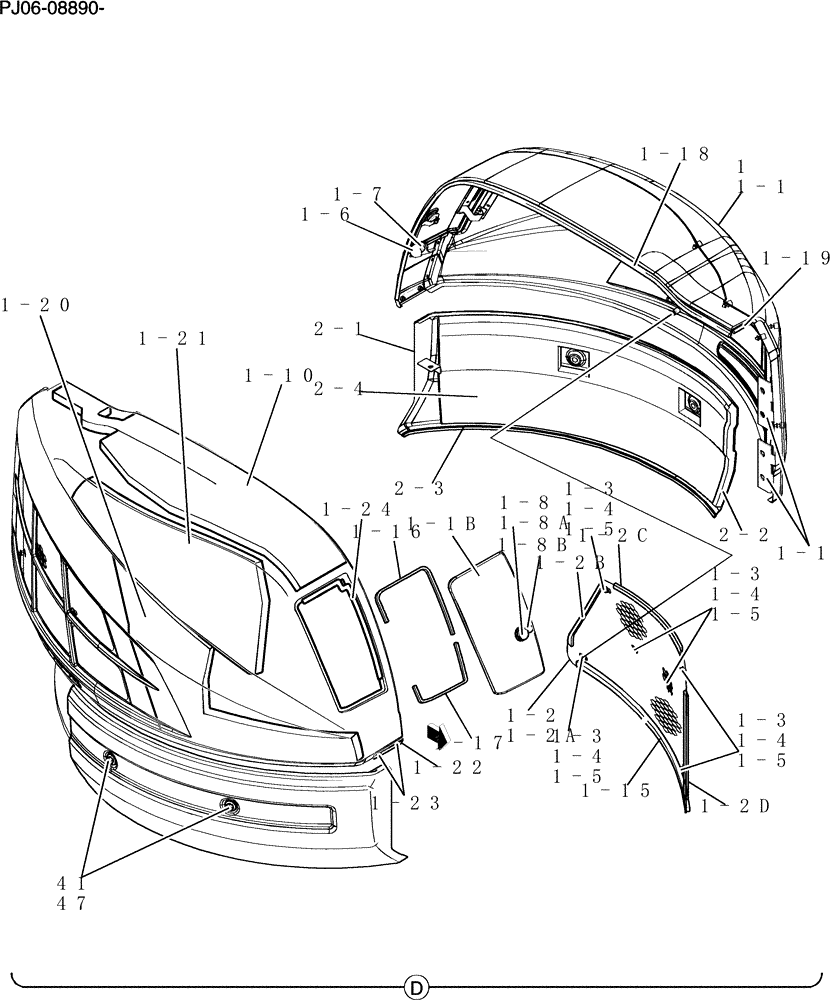

Запчасти Case CX50B (240-17[3]) - GUARD INSTAL CANOPY (90) - PLATFORM, CAB, BODYWORK AND DECALS

PH21C00020F1

Instal

1шт.

1

PH21C00015F1

LATHE

Side

1шт.

2

PW21C01801F1

COVER ASSY

1шт.

3

PH22C00009F1

COVER ASSY

Bonnet

1шт.

3-1

PH22C01136P1

COWLING

Bonnet

1шт.

3-2

PW22C01067P1

LOCK

1шт.

3-3

PH22C01023P1

BOLT

4шт.

3-4

ZN18C05004

NUT

4шт.

3-5

ZW26X05000

LOCK WASHER

Lock

4шт.

3-6

ZW16H05000

WASHER

4шт.

3-7

PM21C01268F1

LOCK

Assy

1шт.

3-7a

YR22C01025P2

LOCK

1шт.

3-7b

PM21C01269P1

PLATE

1шт.

3-8

PW22C01160P2

BRACKET

Guide

1шт.

3-9

PH22C01108P1

HINGE

1шт.

3-10

PW21C01413P1

CAPSCREW

Cap

2шт.

3-11

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

3-12

ZW26X08000

LOCK WASHER

Lock

2шт.

3-13

ZN18C08007

NUT

2шт.

3-14

PH22C01182P2

FOAM INSULATION

1шт.

3-15

PH22C01183P1

FOAM INSULATION

1шт.

3-16

PH22C01186P1

FOAM INSULATION

1шт.

3-17

PH22C01185P1

FOAM INSULATION

1шт.

3-19

PH21C01160D3

WEATHERSTRIP

1шт.

3-22

PM22C01013D4

WEATHERSEAL STRIP

1шт.

4

PH21C00016F1

COVER ASSY

L/h

1шт.

4-1

PH21C01576P1

COVER ASSY

1шт.

4-2

PM21C01233P1

RUBBER

1шт.

4-3

YT21C01039DM

WEATHERSTRIP

1шт.

4-4

PW21C01683P1

FOAM INSULATION

1шт.

4-5

PH21C01398P1

FOAM INSULATION

1шт.

5

PH21C01387F1

COVER ASSY

1шт.

5-1

PH21C01316P1

COVER

1шт.

5-2

YZ21C01094D8

WEATHERSTRIP

1шт.

5-3

PM21C01152DR

WEATHERSTRIP

1шт.

5-4

PY21C01007DN

INSULATING PANEL

Strip, Weather

1шт.

5-5

PW21C01718D1

RUBBER

1шт.

5-6

PE21C01135D3

TRIM PANEL

1шт.

6

PH21C01470F1

COVER

Guard Assy

1шт.

6-1

PH21C01440P1

COVER

1шт.

6-2

2427Z2106D1

WEATHERSTRIP

1шт.

6-4

PH21C01482P2

FOAM INSULATION

1шт.

6-5

PH21C01483P1

FOAM INSULATION

1шт.

6-6

PH21C01507P1

FOAM INSULATION

1шт.

6-7

PH21C01460P1

STAY

1шт.

6-8

YR21C01123P1

COLLAR

Clip

1шт.

6-9

2419R9D2

COTTER PIN

Snap

1шт.

6-10

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

9

PH21C01352F1

COVER ASSY

1шт.

9-1

PH21C01416P1

COVER

1шт.

9-2

PH21C01400P1

FOAM INSULATION

1шт.

9-3

PH21C01531P1

WEATHERSTRIP

1шт.

12

PH21C01324P3

STAY

1шт.

22

ZS18C10035

SCREW,Hex, M10 x 35mm

Cap

3шт.

23

ZW26X10000

LOCK WASHER

6шт.

24

ZW16P10000

WASHER

3шт.

34

ZS18C10025

SCREW,Hex, M10 x 25mm

3шт.

35

YN02C01299P1

BOLT

Sems

4шт.

40

PA41C01005D1

BOLT

Sems

3шт.

41

YT21C01187P2

WASHER

8шт.

45

ZW16P08000

WASHER

1шт.

46

2419R9D2

COTTER PIN

Snap

1шт.

47

PA41C01005D3

BOLT

Sems

5шт.

51

2418T12346

WASHER

3шт.

59

PM20P01083P1

GROMMET

1шт.

60

PH22C01194P1

STAY

1шт.

61

PA21C01133P1

BOLT

Sems

3шт.

69

PA41C01005D2

BOLT (STEP)

Sems

1шт.

70

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

1шт.

11

PH21C01577F1

Support Assy

1шт.

11-1

PH21C01578P1

SUPPORT

Support

1шт.

11-2

PH21C01485P2

RUBBER

1шт.

11-3

PH21C01486P2

RUBBER

1шт.

11-4

PH21C01487P2

RUBBER

1шт.

11-5

PH21C01506P1

RUBBER

1шт.

13

PH22C01162F1

DUCT

Assy

1шт.

13-1

PH22C01152P1

DUCT

1шт.

13-2

PY01P01019D2

WEATHERSTRIP

1шт.

13-3

LE21C01070DR

WEATHERSTRIP

1шт.

13-4

YT21C01163D2

WEATHERSTRIP

1шт.

13-5

PY01P01019DJ

WEATHERSTRIP

1шт.

13-6

PH22C01163D1

RUBBER

1шт.

13-7

PH22C01163D2

RUBBER

2шт.

13-8

PH22C01163D3

RUBBER

1шт.

13-9

PH22C01164P2

FOAM INSULATION

1шт.

13-10

PH22C01190P1

FOAM INSULATION

1шт.

13-11

PH22C01166P2

FOAM INSULATION

1шт.

13-12

PH22C01188P1

FOAM INSULATION

1шт.

13-13

PH22C01168P2

FOAM INSULATION

1шт.

13-14

PH22C01169P2

FOAM INSULATION

1шт.

13-15

PH22C01170P1

FOAM INSULATION

1шт.

13-16

PH22C01171P2

FOAM INSULATION

1шт.

13-17

PH22C01172P2

FOAM INSULATION

1шт.

13-18

PH22C01173P2

FOAM INSULATION

1шт.

13-19

PH22C01174P2

FOAM INSULATION

1шт.

13-20

PH22C01187P1

FOAM INSULATION

1шт.

13-21

YN21C01692D5

STRIP

Trim

1шт.

14

PH21C01356F1

GUARD ASSY.

1шт.

14-1

PH21C01355P1

GUARD

1шт.

14-2

YN21C01692D6

STRIP

Trim

1шт.

14-3

YN21C01724D1

TRIM PANEL

1шт.

14-4

PH21C01476P1

FOAM INSULATION

1шт.

18

PH21C01359P2

STAY

1шт.

19

PH21C01388F1

PLATE ASSY.

1шт.

19-1

PH21C01319P1

PLATE

1шт.

19-2

PH21C01535P1

WEATHERSTRIP

1шт.

20

ZM22C08020

BOLT

Sems

2шт.

23

ZW26X10000

LOCK WASHER

2шт.

24

ZW16P10000

WASHER

2шт.

27

ZW26X12000

LOCK WASHER

2шт.

30

ZS18C16050

SCREW,Hex, M16 x 50mm

Cap

4шт.

31

ZW26X16000

LOCK WASHER

4шт.

32

ZW16H16000

WASHER

4шт.

33

PM21C01142P1

BOLT

Sems

3шт.

34

ZS18C10025

SCREW,Hex, M10 x 25mm

2шт.

38

PH21C01405P3

PLATE

1шт.

39

PM21C01371P1

LOCK

1шт.

43

ZW16H12000

WASHER

2шт.

44

ZN18C12010

NUT

2шт.

45

ZW16P08000

WASHER

1шт.

46

2419R9D2

COTTER PIN

1шт.

49

ZW26X08000

LOCK WASHER

2шт.

52

PW21C01689P1

STRIKER PLATE

1шт.

53

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

1-1

PH21C01315P1

COVER

1шт.

1-1a

PW21C01635P1

HINGE

2шт.

1-1b

PW21C01534P1

COVER

(Access Door)

1шт.

1-1b

PH21C01478P1

PLATE

(Weld to Access Door - PW21C01534P1 and Hinges PW21C01737P1)

1шт.

1-1b

PH21C01403P1

PLATE

(Weld to Guard and Hinge PW21C01737P1)

1шт.

1-1b

PW21C01737P1

HINGE

(Weld to Plate PH21C01478P1 and PH21C01403P1)

2шт.

1-2

PH21C01573F1

GUARD

Assy

1шт.

1-2a

PH21C01568P1

GUARD

1шт.

1-2b

PH21C01409D2

RUBBER

1шт.

1-2c

PH21C01409D3

RUBBER

1шт.

1-2d

PH21C01409D4

RUBBER

1шт.

1-3

ZN18C06005

NUT

6шт.

1-4

ZW26X06000

LOCK WASHER

6шт.

1-5

YT21P01001P1

WASHER

6шт.

1-6

YN21C01321P1

STOP

1шт.

1-7

ZN17F10008

NUT

1шт.

1-8

PM21C01268F1

LOCK

Assy

1шт.

1-8a

YR22C01025P2

LOCK

1шт.

1-8b

PM21C01269P1

PLATE

1шт.

1-10

PH21C01399P2

FOAM INSULATION

1шт.

1-15

PH21C01409D1

RUBBER

1шт.

1-16

PW21C01742P3

RUBBER

1шт.

1-17

PW21C01740P3

RUBBER

1шт.

1-18

PH21C01536P1

WEATHERSTRIP

1шт.

1-19

PH21C01537P1

WEATHERSTRIP

1шт.

1-20

PH21C01514P1

FOAM INSULATION

1шт.

1-21

PH21C01515P1

FOAM INSULATION

1шт.

1-22

PW21C01713P1

GUARD

1шт.

1-23

ZS41C05012

CAPSCREW,M5 x 12mm

Machine

2шт.

1-24

PE21C01135D8

SEAL

1шт.

2-1

PW21C01802P1

COVER ASSY

R/h

1шт.

2-2

PM21C01233P1

RUBBER

1шт.

2-3

2427P1836D32

WEATHERSTRIP

1шт.

2-4

PW21C01629P1

FOAM INSULATION

1шт.

41

YT21C01187P2

WASHER

2шт.

47

PA41C01005D3

BOLT

Sems

2шт.

54

ZW16H08000

WASHER

2шт.

55

ZS18C06025

SCREW,Hex, M6 x 25mm

Cap

2шт.

56

ZW26X06000

LOCK WASHER

2шт.

57

ZW16H06000

WASHER

4шт.

58

ZN18C06005

NUT

2шт.

62

PW21C01699D1

SHIM

2шт.

67

PH21C01528P1

BOX

1шт.

71

PM21C01202P1

BOLT

Sems

2шт.
