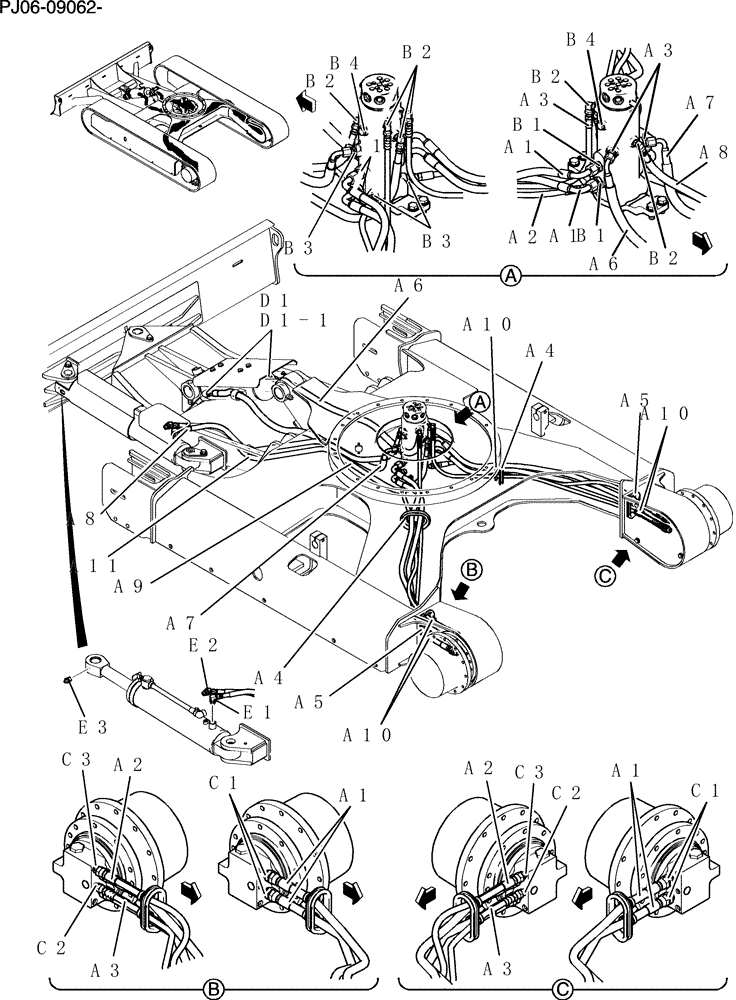

Запчасти Case CX50B (400-72[1]) - HYD LINES, LOW ANGLE DOZER (86) - DOZER

PY02H00014F1

Hyd Low

1шт.

a1

HX35L08115DX

HOSE,12.7mm ID x 1150mm L

4шт.

a2

HX23L06110DY

HOSE,9.5mm ID x 1100mm L

2шт.

a3

HX23L04130DX

HOSE

2шт.

a4

PY02H01113P1

GROMMET

2шт.

a5

PH02H01136P1

GROMMET

2шт.

a6

PY02H01065D5

HOSE

1шт.

a7

PY02H01065D6

HOSE

1шт.

a8

PH02H01052DC

HOSE

1шт.

a9

PH02H01052DD

HOSE

1шт.

a10

PY01P01043D8

CABLE TIE,102mm L

6шт.

a11

PY01P01043D5

CABLE TIE,301mm L

1шт.

PY19H00007F1

Hyd Swivel

1шт.

b1

HH25S08008G1

HYD CONNECTOR

4шт.

b2

HH35S04004G1

90 ELBOW

4шт.

b3

HH25S06006G1

HYD CONNECTOR

4шт.

b4

ZE72X04000

PLUG

2шт.

PH12H00005F1

Hyd Propel

1шт.

c1

HH25S08008G1

HYD CONNECTOR

4шт.

c2

HH25S04002G1

CONNECTION

Connector

2шт.

c3

HH25S06004G3

HYD CONNECTOR

2шт.

PH13H00002F1

LINE

Hyd, Cylinder

1шт.

d1

HH25S06006G1

HYD CONNECTOR

2шт.

d1-1

ZD12P01400

O-RING

1шт.

PH13H00004F1

Hyd Cylinder

1шт.

e1

HH35S04004G1

90 ELBOW

1шт.

e2

PW13H01003F1

45 ELBOW,45 Degree

1шт.

e3

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

Grease

1шт.
