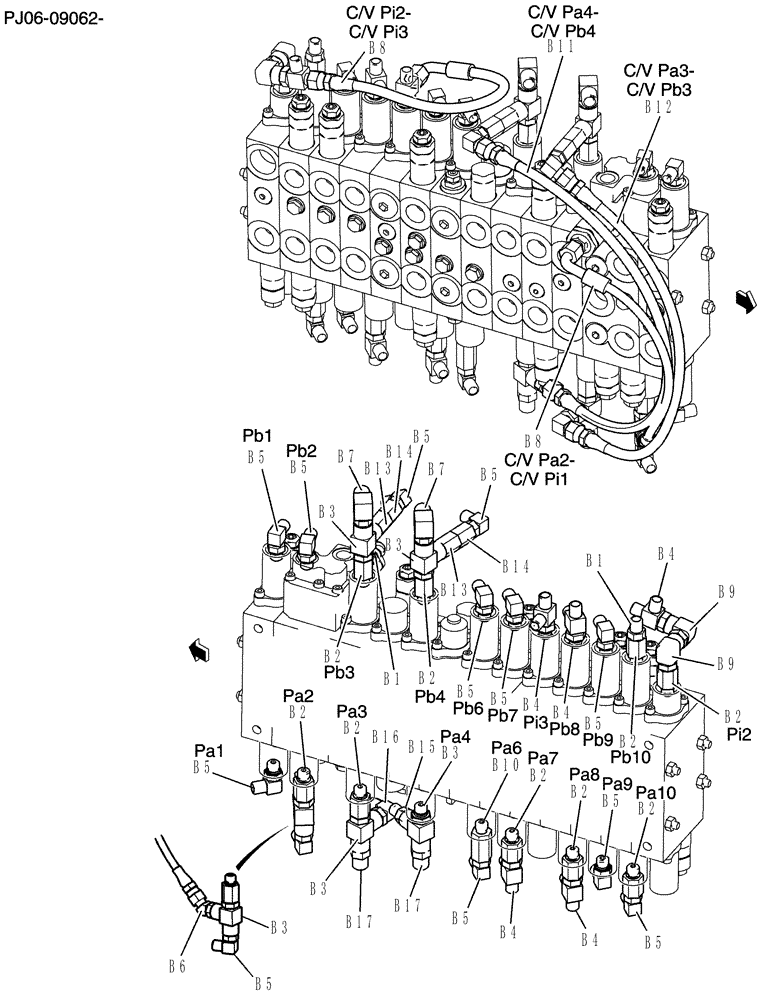

Запчасти Case CX50B (141-72[2]) - CONTROL LINES, REMOTE ANGLE DOZER (86) - DOZER

PY06H00017F1

Control, Main

1шт.

b1

HH25S04004G1

HYD CONNECTOR

2шт.

b2

2444Z2525

HYD CONNECTOR

9шт.

b3

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

5шт.

b4

HH55L04004G1

TEE

5шт.

b5

HH35S04004G1

90 ELBOW

12шт.

b6

HH45S04004G1

45 ELBOW

1шт.

b7

HH35S06004G1

90 ELBOW

2шт.

b8

HX34L04038DX

HOSE,6.3mm ID x 380mm L

2шт.

b9

2444Z2894

90 ELBOW

Elbow

2шт.

b10

2444T2524D2

HYD CONNECTOR

1шт.

b11

HX24L04072DX

HOSE ASSY.

1шт.

b12

HX24L04064DX

FLEXIBLE HOSE

1шт.

b13

HH25R04004G5

HYD CONNECTOR

(with Filter)

2шт.

b14

YW06H01001P1

HYD CONNECTOR

2шт.

b15

HH25S04004G3

HYD CONNECTOR

(with Filter)

1шт.

b16

HH35S04004G2

90 ELBOW

(with Filter)

1шт.

b17

HH25S06004G3

HYD CONNECTOR

2шт.
