(025-01A[1]) - ENGINE INSTAL

Запчасти Case CX50B (025-01A[1]) - ENGINE INSTAL (10) - ENGINE

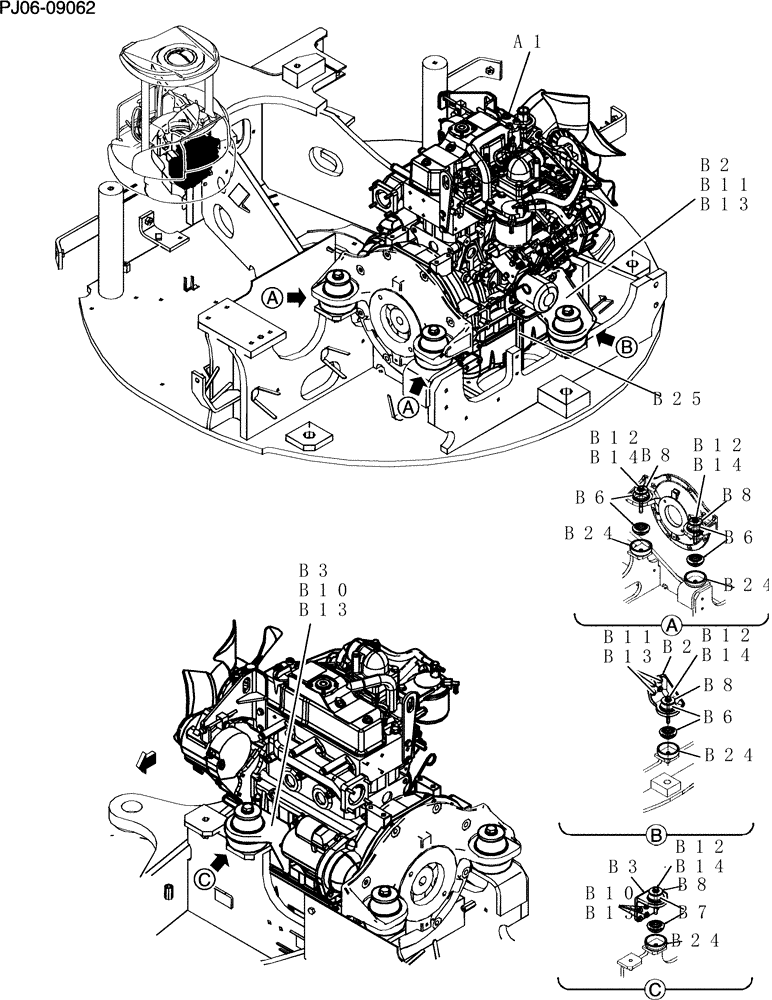

Схема запчастей Case CX50B - (025-01A[1]) - ENGINE INSTAL (10) - ENGINE
b13
b24
b13
b10
b14
b24
b3
b11
b2
b13
b7
b24
b14
b3
b8
b14
b2
b8
b6
b6
b10
a1
b14
b13
b8
b12
b8
b6
b25
b12
b24
b11
b12
b12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY02P00024F1

Instal

1шт.

a1

PH02P00015F1

ENGINE

Assy (See fig no.020-01-1)

1шт.

PY02P00025F1

Instal

1шт.

b3

PH02P01043P1

BRACKET

1шт.

b6

PW02P01054D1

RUBBER MOUNTING

6шт.

b7

PH02P01048D1

RUBBER MOUNTING

2шт.

b8

PW01P01022P1

WASHER

3шт.

b10

ZS18C10025

SCREW,Hex, M10 x 25mm

4шт.

b12

ZS18C12120

SCREW,Hex, M12 x 120mm

Cap

4шт.

b13

ZW16H10000

WASHER

4шт.

b14

ZW16H12000

WASHER

6шт.

b15

PA24S00003P1

SENSOR,50-120 Degree C

(Used for Engine Temp Gauge)

1шт.

b16

PA13E01027P1

PACKING

1шт.

b17

ZN18C12010

NUT

2шт.

b24

PW02P01041P1

COVER

3шт.

b25

PW02P01047D1

HOSE,12mm ID x 250mm L

1шт.

b26

PH02P01060P1

COVER

1шт.

b27

PH02P01061P1

WASHER

1шт.
