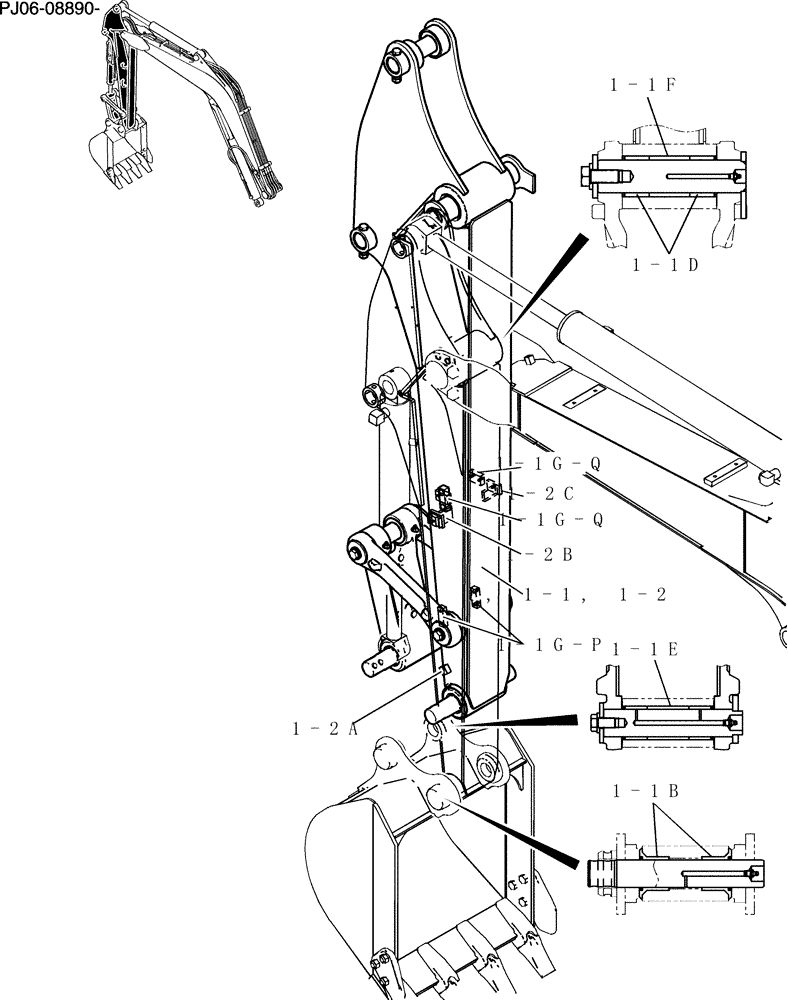

Запчасти Case CX50B (580-60[1]) - ARM ASSEMBLY, STD 1.56M (84) - BOOMS, DIPPERS & BUCKETS

PY12B00133F1

1шт.

1

PY12B00134F1

1шт.

1-1

PY12B00093F2

ARM

1шт.

1-1b

PH12B01100P1

BUSHING,45mm ID x 55mm OD x 46.5mm W

2шт.

1-1c

PY12B01079P1

BUSHING,45mm ID x 55mm OD x 36.5mm L

2шт.

1-1d

PH12B01069P2

BUSHING,60mm ID x 75mm OD x 45mm L

2шт.

1-1e

PY12B01213P1

COLLAR,48.8mm ID x 54mm OD x 68mm L

1шт.

1-1f

PY12B01214P2

COLLAR

1шт.

1-1g

PY12B00094P2

1шт.

1-1g-p

PV12B01227P1

BLOCK

Tapped

2шт.

1-1g-q

PX12B01185P1

BLOCK

Tapped

2шт.

1-2

PY12B00130P1

1шт.

1-2a

2416T12874

BLOCK

Tapped

1шт.

1-2b

PY12B01232P1

1шт.

1-2c

PY12B01235P1

1шт.
