Запчасти Case CX50B (580-17[1]) - ARM ASSEMBLY, STD 1.56M (84) - BOOMS, DIPPERS & BUCKETS

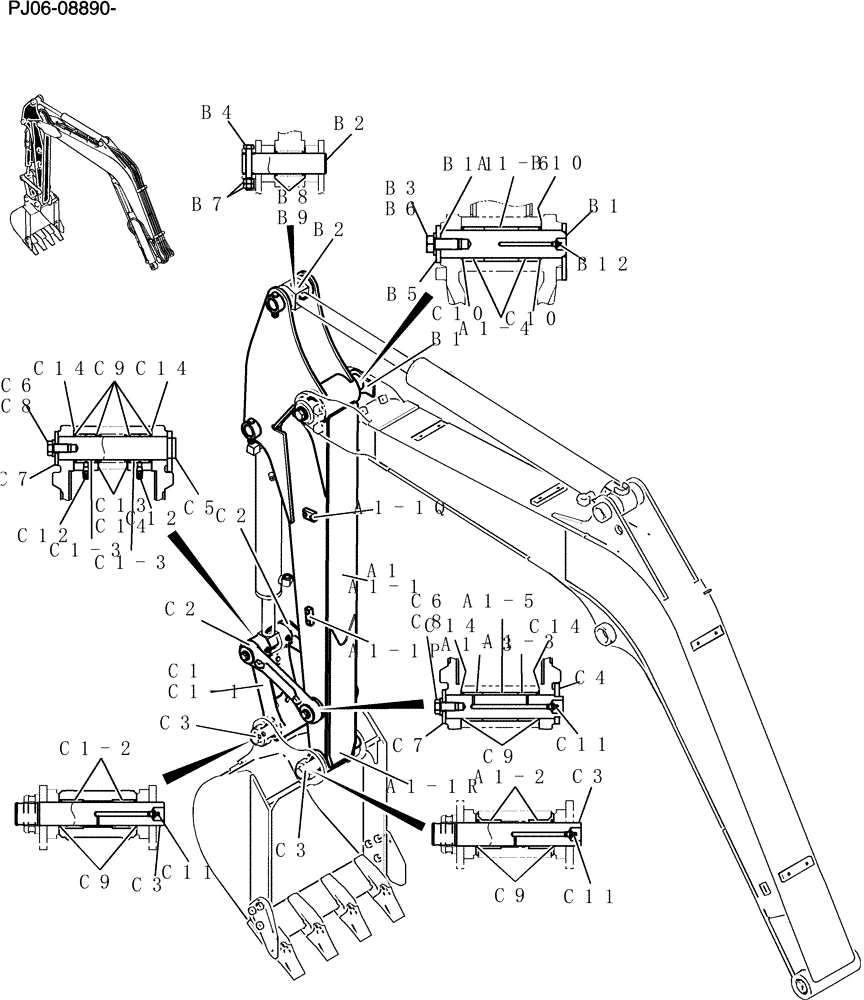

Схема запчастей Case CX50B - (580-17[1]) - ARM ASSEMBLY, STD 1.56M (84) - BOOMS, DIPPERS & BUCKETS
a1-2
c13
a1-3
c3
a1-1
a1-3
c11
b9
c14
a1-4
c7
b2
c2
c3
b12
c9
c12
c9
a1
c1
c1-3
c1-3
b8
c14
c1-2
a1-6
c11
b6
c14
c9
c6
a1-5
b7
c9
b5
b2
c10
a1-1p
b1
c3
c5
c6
c8
a1-1r
b10
c10
b3
c2
c11
c1-1
c7
b11
a1-1q
c14
c3
c14
b4
b1
c4
c8
c12

Артикул

Название

Примечание

Количество

PY12B00095F1

LIFT ARM

Assy

1шт.

a1

PY12B00096F1

LIFT ARM

Assy

1шт.

a1-1

NSS

NOT SOLD SEPARAT

Arm

1шт.

a1-1p

PV12B01227P1

BLOCK

Tapped

2шт.

a1-1q

PX12B01185P1

BLOCK

Tapped

2шт.

a1-1r

PY12B01114P1

PLATE

1шт.

a1-2

PH12B01100P1

BUSHING,45mm ID x 55mm OD x 46.5mm W

2шт.

a1-3

PY12B01079P1

BUSHING,45mm ID x 55mm OD x 36.5mm L

2шт.

a1-4

PH12B01069P2

BUSHING,60mm ID x 75mm OD x 45mm L

2шт.

a1-5

PY12B01213P1

COLLAR,48.8mm ID x 54mm OD x 68mm L

1шт.

a1-6

PY12B01214P1

COLLAR

1шт.

PY12B00117F1

Instal

1шт.

b1

PY12B01228P1

PIN

1шт.

b2

PH12B01084P1

PIN

1шт.

b3

ZS18C24055

CAPSCREW,Hex, M24 x 55mm

Cap

1шт.

b4

HS18C12090G1

SCREW

Cap

1шт.

b5

PH12B01087P1

WASHER

1шт.

b6

ZW16H24000

WASHER

1шт.

b7

ZN18C12010

NUT

2шт.

b8

YJ12B01043P1

SHIM,0.5mm Thk

2шт.

b9

B16T0442D61

SHIM,47mm ID x 70mm OD x 0.9mm Thk

1шт.

b10

PH12B01088P1

SHIM,0.5mm Thk

1шт.

b11

PH12B01115P1

SHIM,0.5mm Thk

2шт.

b12

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

Grease

1шт.

PY12B00073F1

Arm

1шт.

c1

PH12B01148F1

LINK CONROD

Assy, Bucket

1шт.

c1-1

PH12B01149P1

LINK CONROD

Bucket

1шт.

c1-2

PH12B01067P1

BUSHING,45mm ID x 55mm OD x 42mm L

2шт.

c1-3

PY12B01163P1

BUSHING,45mm ID x 55mm OD x 36.5mm L

2шт.

c2

PH12B01101P2

LINK

2шт.

c3

PH12B01114P1

PIN,45mm OD x 287.5mm L

See Bucket Install for retaining pins

2шт.

c4

PY12B01158P1

PIN,45mm OD x 210.5mm L

1шт.

c5

PY12B01159P1

PIN,45mm OD x 219.5mm L

1шт.

c6

ZS18C16030

SCREW,Hex, M16 x 30mm

Cap

2шт.

c7

PW12B01242P1

WASHER

2шт.

c8

ZW16H16000

WASHER

2шт.

c9

2445R138D20

SEAL,45mm ID x 55mm OD x 4mm Thk

Dust

10шт.

c10

2445R138D3

SEAL,60mm ID x 75mm OD x 4mm Thk

Dust

2шт.

c11

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

3шт.

c12

ZG91U02000

LUBE NIPPLE

2шт.

c13

B16T0442D61

SHIM,47mm ID x 70mm OD x 0.9mm Thk

2шт.

c14

YJ12B01097P1

SHIM,47mm ID x 70mm OD x 0.5mm Thk

6шт.

Выбрано товаров: 42
