(327-01[1]) - RELAY ASSY

Запчасти Case CX50B (327-01[1]) - RELAY ASSY (55) - ELECTRICAL SYSTEMS

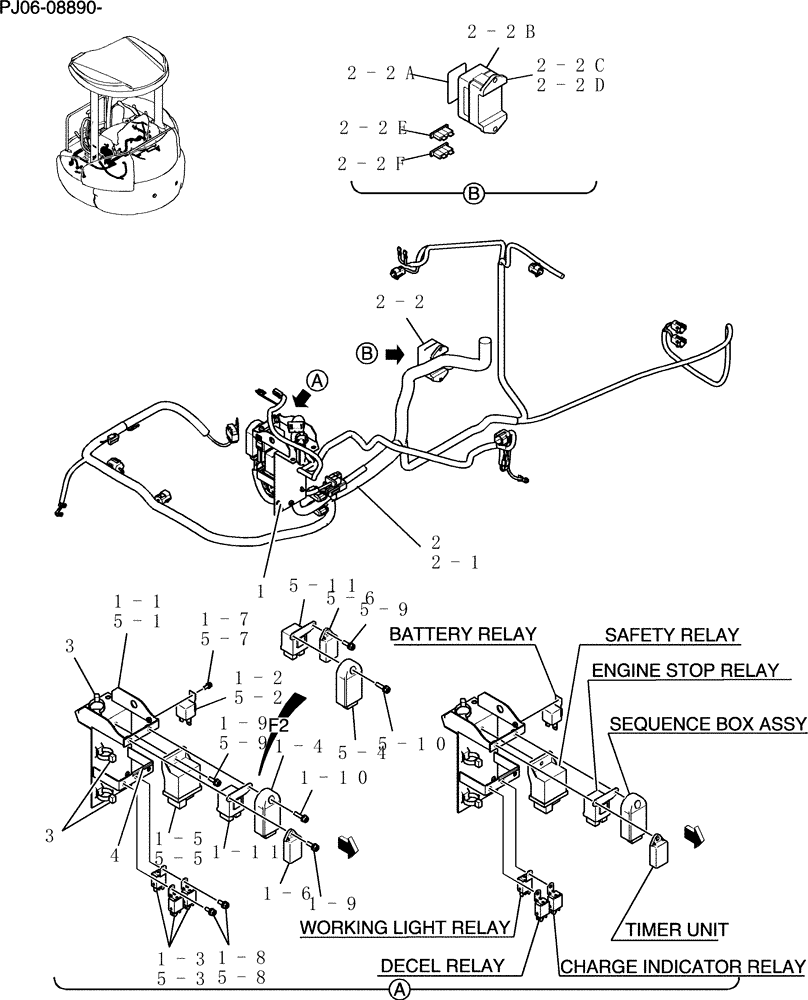

Схема запчастей Case CX50B - (327-01[1]) - RELAY ASSY (55) - ELECTRICAL SYSTEMS
5-8
1-9
5-1
2-2e
2-2a
1-11
1-10
2-1
5-10
1-1
1-4
1-7
5-6
2-2f
5-11
4
1
5-5
5-7
3
5-3
3
1-5
1-9
1-2
2
1-6
5-9
1-8
5-4
2-2b
2-2c
5-2
1-3
2-2
2-2d
5-9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH24E00034F1

RELAY

Assy

1шт.

PH24E00034F2

(angle Dozer)

1шт.

1

PX24E00008F1

KIT

(For F1 ONLY)

1шт.

1-1

PX24E01005P1

BRACKET

1шт.

1-2

PH24S00001P1

RELAY,12V, 70amp

(Used for Battery, Engine Stop, Light)

1шт.

1-3

PA24E01001P1

RELAY,12V - 20amp

(Used for Deceleration, Charge Indicator, Cab/Canopy Working Light, Horn, Slew/Swing Select, Slew/Swing Preservation, Nibbler Open/Close)

3шт.

1-4

PA24S00002P3

RELAY,DC12V

(Used for Sequence Box)

1шт.

1-5

PX24S00001P1

RELAY

(Used for Safety)

1шт.

1-6

PH25S00002P1

TIMER

1шт.

1-7

ZM61C05012

BOLT

Sems

1шт.

1-8

ZM61C06016

BOLT

Sems

2шт.

1-9

ZM61C06020

BOLT

Sems

2шт.

1-10

ZM61C06025

BOLT

Sems

1шт.

1-11

PX24S00003P1

RELAY

(Used for Engine Stop, Glow)

1шт.

2

PH14E01034P1

HARNESS

1шт.

2-1

NSS

NOT SOLD SEPARAT

Harness

1шт.

2-2

PW73E00003F1

FUSE BOX

1шт.

2-2a

PW73E01004P1

LABEL

1шт.

2-2b

2479U1458S2

COVER

1шт.

2-2c

2479U1458S1

BASE

1шт.

2-2d

2479U1458S3

BLOCK

1шт.

2-2e

2479R655S8

FUSE,10 Amp

2шт.

2-2f

YN73E00001S022

FUSE,30 Amp

7шт.

3

YN03E01001D5

CLIP

3шт.

4

YN22M01006D5

BUSHING,50mm L

1шт.

5

PX24E00008F2

KIT

Relay Assy (For F2 ONLY)

1шт.

5-1

PX24E01005P1

BRACKET

1шт.

5-2

PH24S00001P1

RELAY,12V, 70amp

(Used for Battery, Engine Stop, Light)

1шт.

5-3

PA24E01001P1

RELAY,12V - 20amp

(Used for Deceleration, Charge Indicator, Cab/Canopy Working Light, Horn, Slew/Swing Select, Slew/Swing Preservation, Nibbler Open/Close)

3шт.

5-4

PA24S00002P3

RELAY,DC12V

(Used for Sequence Box)

1шт.

5-5

PX24S00001P1

RELAY

(Used for Safety)

1шт.

5-6

PH25S00002P1

TIMER

1шт.

5-7

ZM61C05012

BOLT

Sems

1шт.

5-8

ZM61C06016

BOLT

Sems

2шт.

5-9

ZM61C06020

BOLT

Sems

2шт.

5-10

ZM61C06025

BOLT

Sems

1шт.

5-11

PX24S00003P1

RELAY

(Used for Engine Stop, Glow)

1шт.
