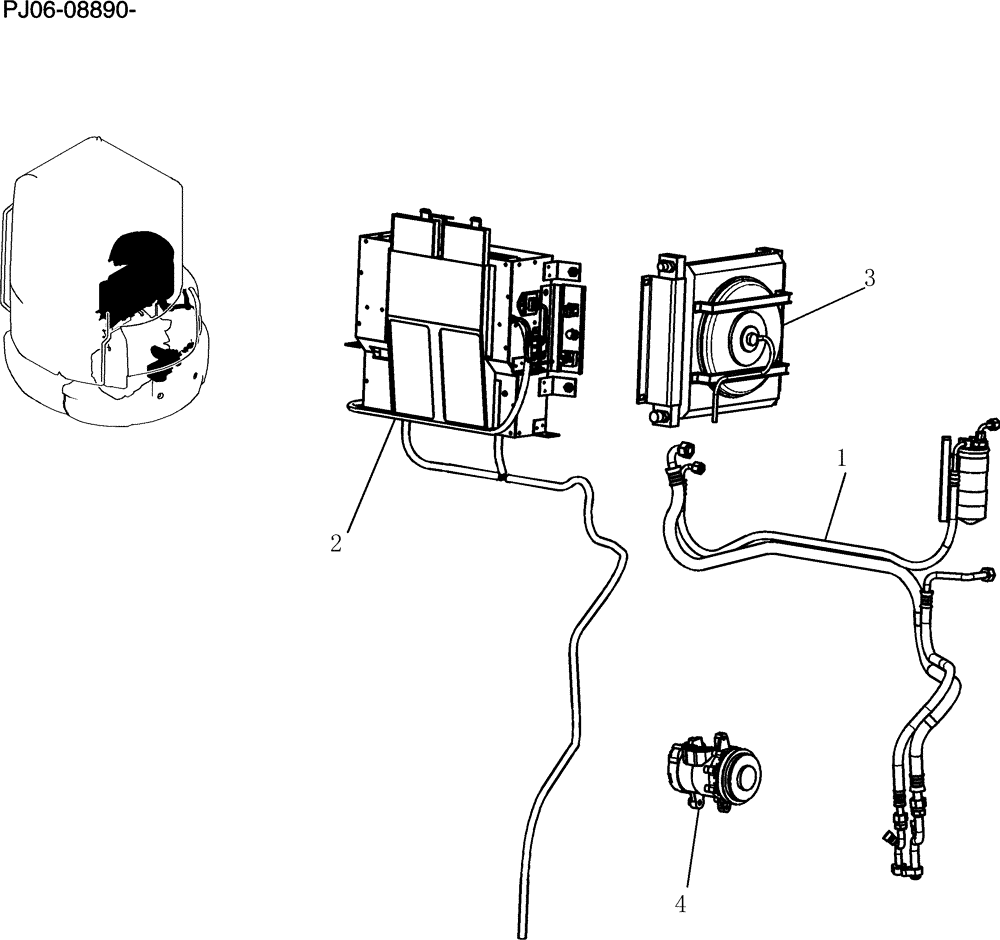

Запчасти Case CX50B (783-01[1]) - COOLER ASSEMBLY (50) - CAB CLIMATE CONTROL

.

Cooler Install PH20M00017F1

1шт.

1

PH96V00004F1

SET OF PARTS

Drier Assy, Air (See Fig No.785-01-1)

1шт.

2

PH20M00016F1

COOLER

Cooler Assy (See Fig No. 787-01-1)

1шт.

3

PH20M01108F1

CONDENSER

Assy

1шт.

3-1

PH20M01108S009

ELECTRIC MOTOR

Not Illustrated – Condenser Fan

1шт.

4

PH91V00004F1

AIRCOND. COMPRESSOR

Assy

1шт.
