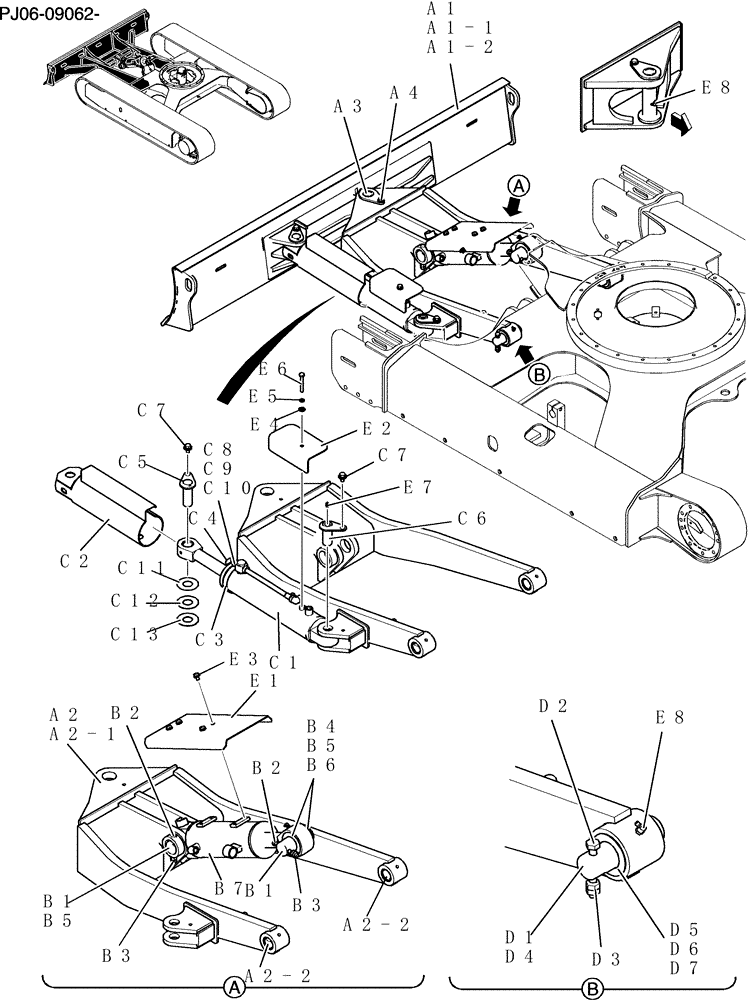

Запчасти Case CX50B (420-72[1]) - DOZER ASSEMBLY ANGLE DOZER (48) - TRACKS & TRACK SUSPENSION

PY51B00060F1

1шт.

a1

PY51B00061F1

FRAME

1шт.

a1-1

PY51B01105P1

CUTTING EDGE,65mm W x 1960mm L x 12mm Thk

1шт.

a1-2

PW51B01106P1

BUSHING

2шт.

a2

PY51B01129F1

FRAME

1шт.

a2-1

PY51B01130P1

FRAME

1шт.

a2-2

2405T1689

BUSHING,40mm ID x 50mm OD x 60mm L

2шт.

a3

PY51B01142P1

PIN

1шт.

a4

ZM73C12030

BOLT,M12x30mm - Course Thread

Sems

1шт.

PH51B00046F1

Instal

1шт.

b1

PY51B01107P1

PIN

2шт.

b2

ZS18C12110

SCREW,Hex, M12 x 110mm

Cap

2шт.

b3

ZN18C12010

NUT

4шт.

b4

B16T0442D26

SHIM,90mm OD x 57mm ID x 1.2mm Thk

2шт.

b5

B16T0442D21

SHIM,57mm ID x 90mm OD x 1.6mm Thk

2шт.

b6

B16T0442D22

SHIM,90mm OD x 57mm ID x 2.3mm Thk

2шт.

b7

PY01V00036F1

CYLINDER

Dozer

1шт.

See (C.P.M)

1шт.

PH51B00040F1

Instal

1шт.

c1

PY01V00035F2

CYLINDER

Angle

1шт.

See (C.P.M)

1шт.

c2

PH51B01056P1

COVER

1шт.

c3

PH51B01062P1

PLATE

1шт.

c4

PW51B01110P1

PLATE

1шт.

c5

PY51B01034P2

PIN

1шт.

c6

PW51B01107P1

PIN

1шт.

c7

ZM32C12025

BOLT

Sems

2шт.

c8

ZS18C08020

SCREW,Hex, M8 x 20mm

1шт.

c9

ZW26X08000

LOCK WASHER

1шт.

c10

ZW16P08000

WASHER

1шт.

c11

PY51B01053P1

SHIM,1.6mm Thk

1шт.

c12

PY51B01054P1

SHIM,2.3mm Thk

1шт.

c13

PY51B01055P1

SHIM,3.2mm Thk

1шт.

PH51B00003F1

Instal

1шт.

d1

PH51B01001P1

PIN,40mm OD x 137mm L

2шт.

d2

ZS18C10085

SCREW,Hex, M10 x 85mm

Cap

2шт.

d3

ZN18C10008

NUT

4шт.

d4

2445R138D5

SEAL,40mm ID x 50mm OD x 4mm Thk

Dust

4шт.

d5

B16T0442D67

SHIM,65mm OD x 42mm ID x 1.2mm Thk

4шт.

d6

B16T0442D68

SHIM,65mm OD x 42mm ID x 1.6mm Thk

4шт.

d7

B16T0442D69

SHIM,65mm OD x 42mm ID x 2.3mm Thk

4шт.

PY51B00056F1

Dozer

1шт.

e1

PH51B01020P1

COVER

1шт.

e2

PH51B01063P1

COVER

1шт.

e3

ZM73C10016

BOLT,M10x16mm - Course Thread

Sems

4шт.

e4

ZW16H10000

WASHER

1шт.

e5

ZW26X10000

LOCK WASHER

1шт.

e6

ZS18C10075

SCREW,Hex, M10 x 75mm

Cap

1шт.

e7

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

e8

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

3шт.
