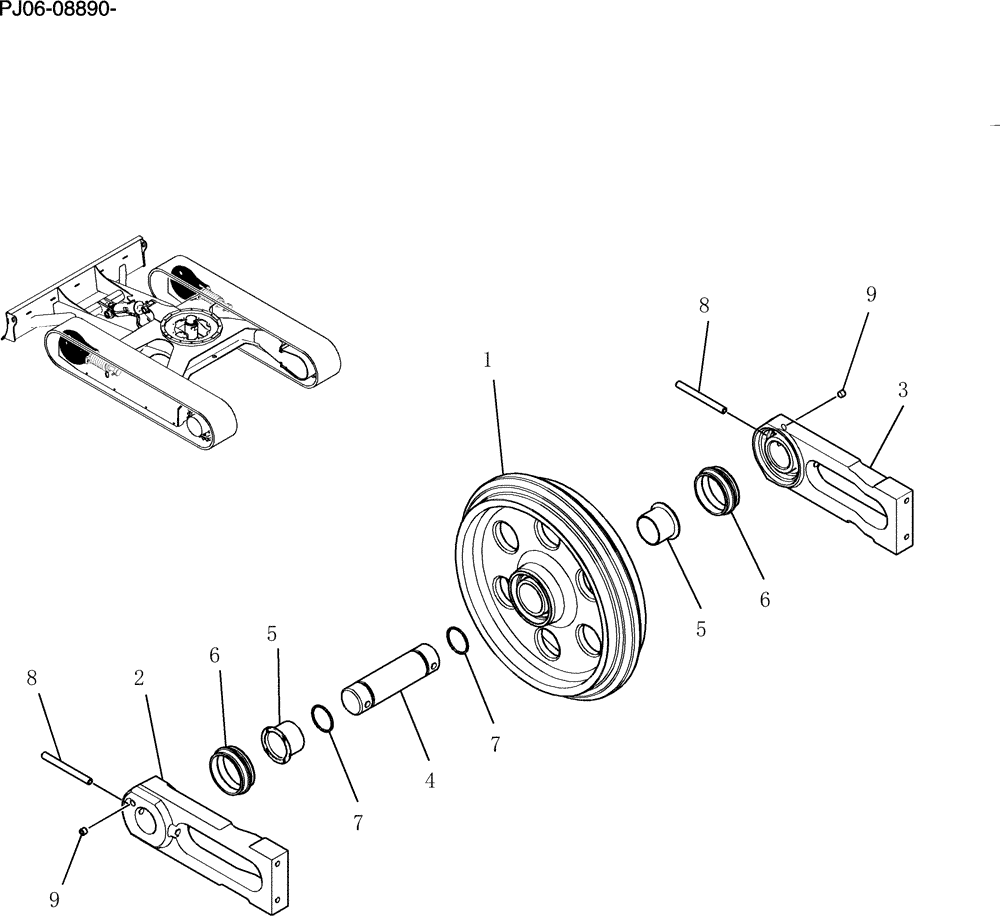

Запчасти Case CX50B (356-01[1]) - IDLER ASSEMBLY (48) - TRACKS & TRACK SUSPENSION

PY52D00024F1

IDLER

1шт.

1

PY52D00025P1

IDLER

1шт.

2

PY52D01019P1

COLLAR

1шт.

3

PY52D01020P1

COLLAR

1шт.

4

PY52D01008P1

SHAFT

1шт.

5

PY52D01009P1

BUSHING,45mm ID x 50mm OD x 37.5mm L

2шт.

6

2445R439F1

SEAL,64mm ID x 85.2mm OD x 28mm Thk

Assy, Floating

2шт.

7

ZD12G04000

O-RING,39.40mm ID x 45.60mm OD x 3.10mm

2шт.

8

ZP26D10100

PIN

Spring

2шт.

9

PV52D01007P1

PLUG

2шт.
