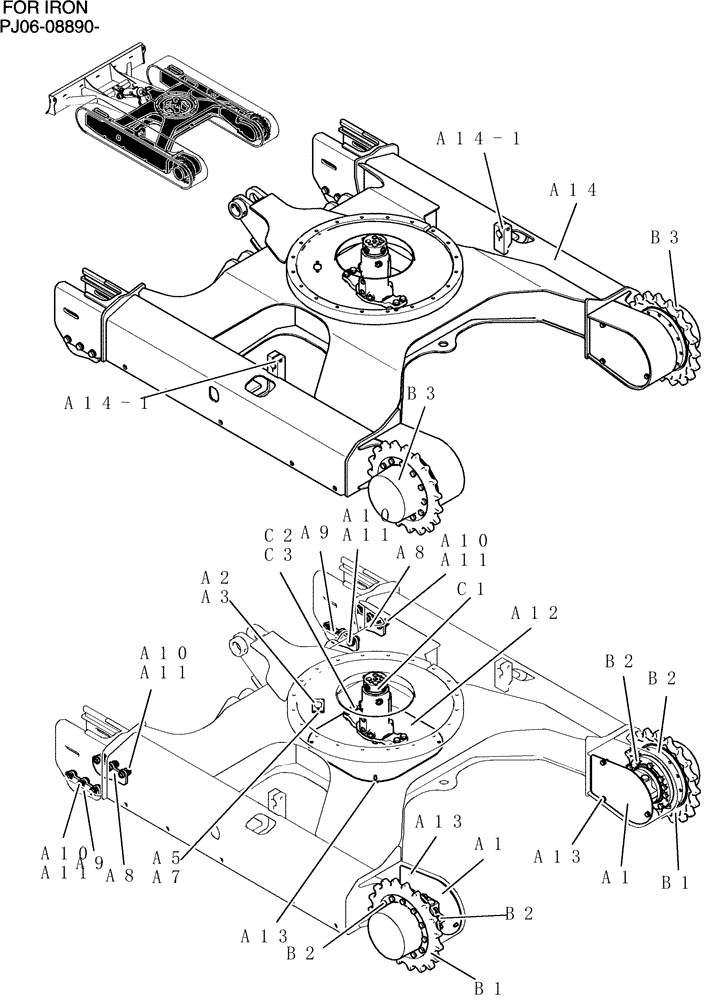

Запчасти Case CX50B (335-01[1]) - LOW GROUP (39) - FRAMES AND BALLASTING

PY01F00016F1

Low (iron)

1шт.

a1

PY01F01019P1

COVER

2шт.

a2

2422T556

PLATE

1шт.

a3

2418T12274

PACKING

1шт.

a5

ZS18C10014

SCREW,Hex, M10 x 14mm

Cap

2шт.

a7

ZW26X10000

LOCK WASHER

2шт.

a8

PY01F01008P1

PLATE

2шт.

a9

PY01F01001P1

PLATE

2шт.

a10

ZS18C16040

SCREW,Hex, M16 x 40mm

Cap

12шт.

a11

ZW16H16000

WASHER

12шт.

a12

PY01F01022P1

COVER

1шт.

a13

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

10шт.

a14

PY02F00040P1

Low

1шт.

a14-1

PY07F01083P1

SUPPORT

2шт.

PY53D00003F1

Propel

1шт.

b1

PY51D01002P1

SPROCKET

2шт.

b2

ZS18C14035

SCREW,Hex, M14 x 35mm

Cap

44шт.

b3

PH15V00012F1

HYDRAULIC MOTOR

Assy, Propel

2шт.

See (C.P.M)

1шт.

YJ19H00002F1

HYDRAULIC SWIVEL

Joint Instal

1шт.

c1

24100J12703F1

HYDRAULIC SWIVEL

Joint Assy, Swivel

1шт.

See (C.P.M)

1шт.

c2

ZS18C14035

SCREW,Hex, M14 x 35mm

Cap

4шт.

c3

ZW16X14000

WASHER

4шт.
