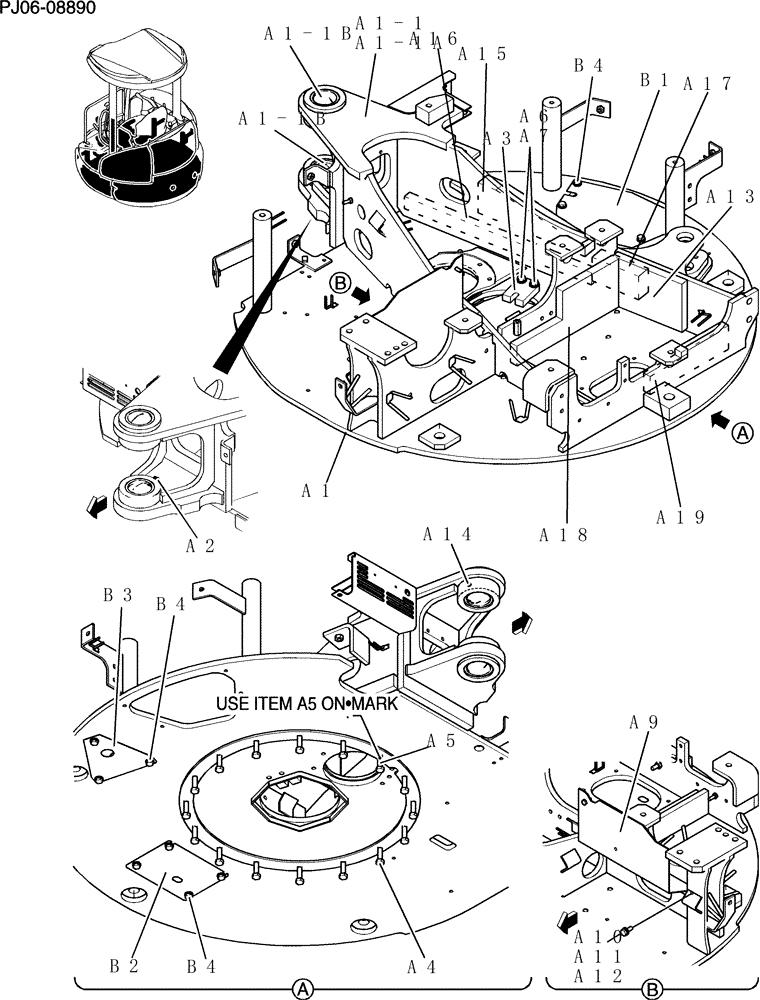

Запчасти Case CX50B (010-72[1]) - FRAME ASSY, UPP ANGLE DOZER (39) - FRAMES AND BALLASTING

PY52F00043F1

Group, Upp

1шт.

a1

PY52F00041P1

Upp

FRAME

1шт.

a1-1

PH52F01139P1

BUSHING,80mm ID x 95mm OD x 68mm L

2шт.

a2

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

Grease

2шт.

a3

PY52F01088P1

PLATE

1шт.

a5

ZS18C14070

SCREW,Hex, M14 x 70mm

Cap

19шт.

a6

HS18C14070G2

SCREW

Cap

1шт.

a7

ZW26X12000

LOCK WASHER

2шт.

a8

ZS18C12030

SCREW,Hex, M12 x 30mm

Cap

2шт.

a9

ZW16H12000

WASHER

2шт.

a10

ZW16P12000

WASHER

2шт.

a11

PH52F01244P1

FOAM INSULATION

1шт.

a12

PH52F01237P1

PLATE

1шт.

a13

PM22C01020DA

SOFT TRIM

1шт.

a14

ZS18C12025

SCREW,Hex, M12 x 25mm

Cap

2шт.

a15

ZW26X10000

LOCK WASHER

2шт.

a16

ZW16P10000

WASHER

2шт.

a17

ZS18C10025

SCREW,Hex, M10 x 25mm

2шт.

a18

YX32H01012D3

RUBBER

1шт.

a19

PH52F01311P1

SUPPORT

1шт.

a20

PH52F01324P1

FOAM INSULATION

1шт.

a21

PH52F01325P1

FOAM INSULATION

1шт.

PH24C00010F1

Under

1шт.

b1

PH24C01073P1

COVER

1шт.

b2

PH24C01072P1

COVER

1шт.

b3

ZM12C10020

BOLT

Sems

10шт.
