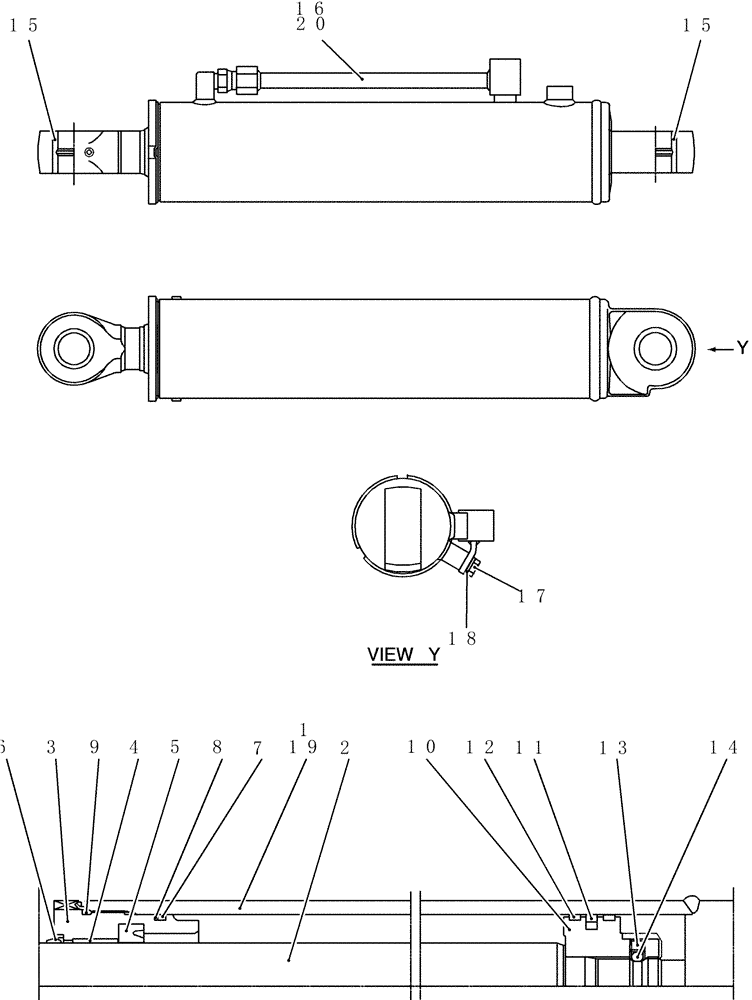

Запчасти Case CX50B (HC752-72) - CYLINDER ASSEMBLY, ANGLE (35) - HYDRAULIC SYSTEMS

PY01V00035F1,F2

Cylinder Assy, Angle

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, Cylinder (F1 ONLY)

1шт.

2

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

3

PH01V00006S003

CYLINDER HEAD

1шт.

4

PW01V00010S004

BUSHING

1шт.

5

2438U635S3

RING

1шт.

6

PH01V00006S006

RING

Ring

1шт.

7

ZD12G08500

O-RING,84.40mm ID x 90.60mm OD x 3.10mm

1шт.

8

PH01V00006S008

BACK-UP RING

1шт.

9

ZD11G09000

O-RING,89.40mm ID x 95.60mm OD x 3.10mm

1шт.

10

2438U1116S16

JACK PISTON

1шт.

11

2438U715S24

RING

Seal

1шт.

12

2438U1116S18

RING

Slide

2шт.

13

2438U1057S16

SET SCREW

Setscrew

1шт.

14

2436U946S11

BALL

1шт.

15

PY01V00035S015

BUSHING

2шт.

16

PY01V00035S016

(F1 ONLY)

1шт.

17

ZS18C10016

SCREW,Hex, M10 x 16mm

Cap

1шт.

18

PR01V00002S024

WASHER

1шт.

19

NSS

NOT SOLD SEPARAT

Tube, Cylinder (F2 ONLY)

1шт.

20

PY01V00035S020

TUBE

(F2 ONLY)

1шт.

PH01V00006R100

REPAIR KIT

All(rod+piston)

1шт.

PY01V00035R100

Consists Of Ref. 1x1, 15x1 (F1 ONLY)

1шт.

PY01V00035R200

REPAIR KIT

Consists Of Ref. 2x1, 15x1

1шт.

PY01V00035R400

REPAIR KIT

Consists Of Ref. 15x1, 19x1 (F2 ONLY)

1шт.
