(HC750) - CYLINDER ASSEMBLY, DOZER

Запчасти Case CX50B (HC750) - CYLINDER ASSEMBLY, DOZER (35) - HYDRAULIC SYSTEMS

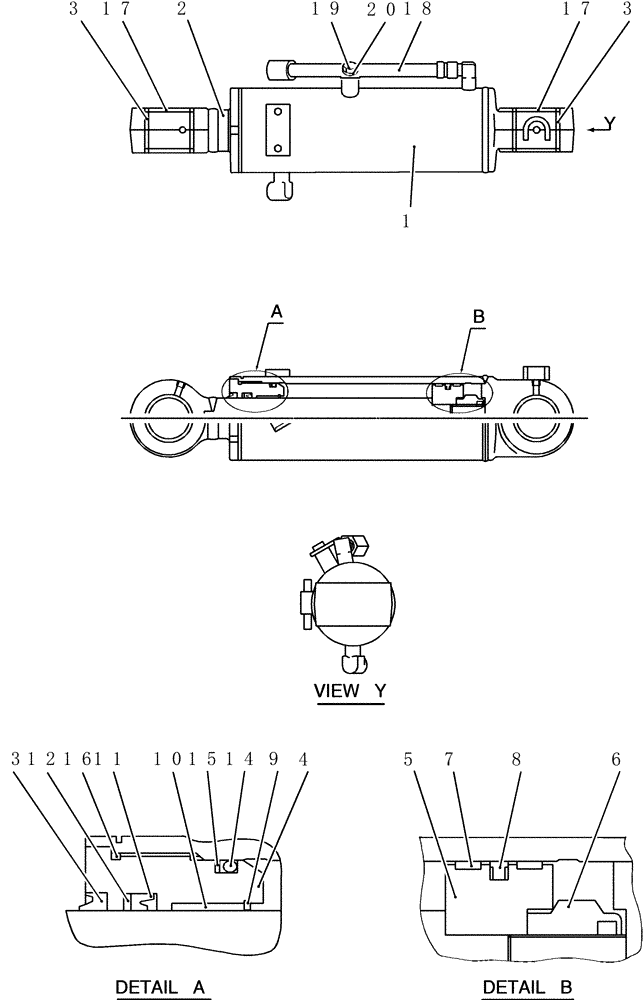

Схема запчастей Case CX50B - (HC750) - CYLINDER ASSEMBLY, DOZER (35) - HYDRAULIC SYSTEMS
18
16
11
14
19
5
2
4
20
9
3
3
1
15
10
6
17
17
7
12
13
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY01V00040F1

CYLINDER

Assy, Dozer

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

3

PY01V00040S003

BUSHING

2шт.

4

PY01V00040S004

CYLINDER HEAD

1шт.

5

PY01V00040S005

PISTON

1шт.

6

PH01V00031S006

NUT

1шт.

7

PY01V00040S007

RING

Wear

2шт.

8

PY01V00040S008

RING

Seal

1шт.

9

PY01V00037S014

RING

Retaining

1шт.

10

PY01V00040S010

BUSHING

1шт.

11

PY01V00037S015

CIRCLIP

U-ring

1шт.

12

PY01V00037S016

RING

Back Up

1шт.

13

PY01V00037S017

RING

Wiper

1шт.

14

ZD12P08500

O-RING

1шт.

15

ZD85P08500

BACK-UP RING

1шт.

16

ZD11G09500

O-RING,94.40mm ID x 100.60mm OD x 3.10mm

1шт.

17

PY01V00040S017

RING

Wiper

4шт.

18

PY01V00040S018

TUBE

Assy

1шт.

19

ZS18C10016

SCREW,Hex, M10 x 16mm

Cap

1шт.

20

PH01V00027S023

WASHER

1шт.

PY01V00040R100

REPAIR KIT

Consists Of Ref. 1x1, 3x1

1шт.

PY01V00040R200

REPAIR KIT

Consists Of Ref. 2x1, 3x1

1шт.

PY01V00040R300

REPAIR KIT

Consists Of Ref. 7x2, 8x1, 11x1, 12x1, 13x1, 14x1, 15x1, 16x1

1шт.
