(07-010) - VALVE ASSY, CONTROL, P/N PY30V00044F2

Запчасти Case CX50B (07-010) - VALVE ASSY, CONTROL, P/N PY30V00044F2 (35) - HYDRAULIC SYSTEMS

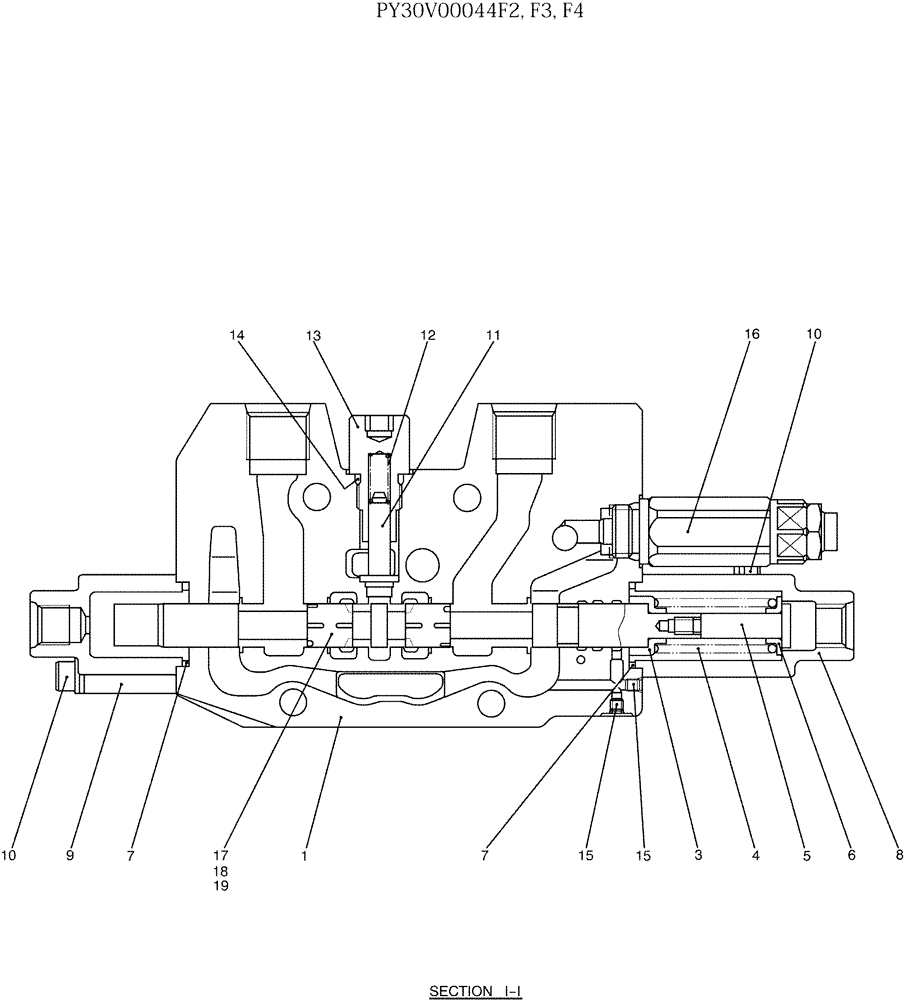

Схема запчастей Case CX50B - (07-010) - VALVE ASSY, CONTROL, P/N PY30V00044F2 (35) - HYDRAULIC SYSTEMS
10
6
13
14
11
1
15
16
17
7
7
3
19
5
4
10
18
9
8
15
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY30V00044F2

VALVE

ASSY, CONTROL

1шт.

PY30V00044F3

VALVE SECTION

VALVE ASSY, CONTROL

1шт.

PY30V00044F4

VALVE SECTION

ASSY

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT, SPRING

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING

1шт.

5

NSS

NOT SOLD SEPARAT

BOLT, SPACER

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT, SPRING

1шт.

7

PH30V00009S007

O-RING

2шт.

8

PH30V00009S008

COVER

CAP

1шт.

9

PH30V00009S011

COVER

CAP

1шт.

10

PH30V00009S019

CAPSCREW

CAP

4шт.

11

PH30V00014S012

POPPET

1шт.

12

PH30V00014S013

SPRING

1шт.

13

PH30V00014S015

PLUG

1шт.

14

ZD12P01100

O-RING

1шт.

15

2436U1317S22

PLUG

2шт.

16

PM22V00005F4

VALVE PRESSURE RELIE

ASSY, OVERLOAD RELIEF, SEE FIG. 07-015

1шт.

17

NSS

NOT SOLD SEPARAT

SPOOL, (F2 ONLY)

1шт.

18

NSS

NOT SOLD SEPARAT

SPOOL, (F3 ONLY)

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL, (F4 ONLY)

1шт.

PY30V00044R200

REPAIR KIT

CONSISTS OF REF. 3 X 1, 4 X 1, 5 X 1, 6 X 1, 17 X 1, (F2 ONLY)

1шт.

PY30V00044R300

REPAIR KIT, CONSISTS OF REF. 3 X 1, 4 X 1, 5 X 1, 6 X 1, 18 X 1, (F3 ONLY)

1шт.

PY30V00044R400

REPAIR KIT

CONSISTS OF REF. 3 X 1, 4 X 1, 5 X 1, 6 X 1, 19 X 1, (F4 ONLY)

1шт.
