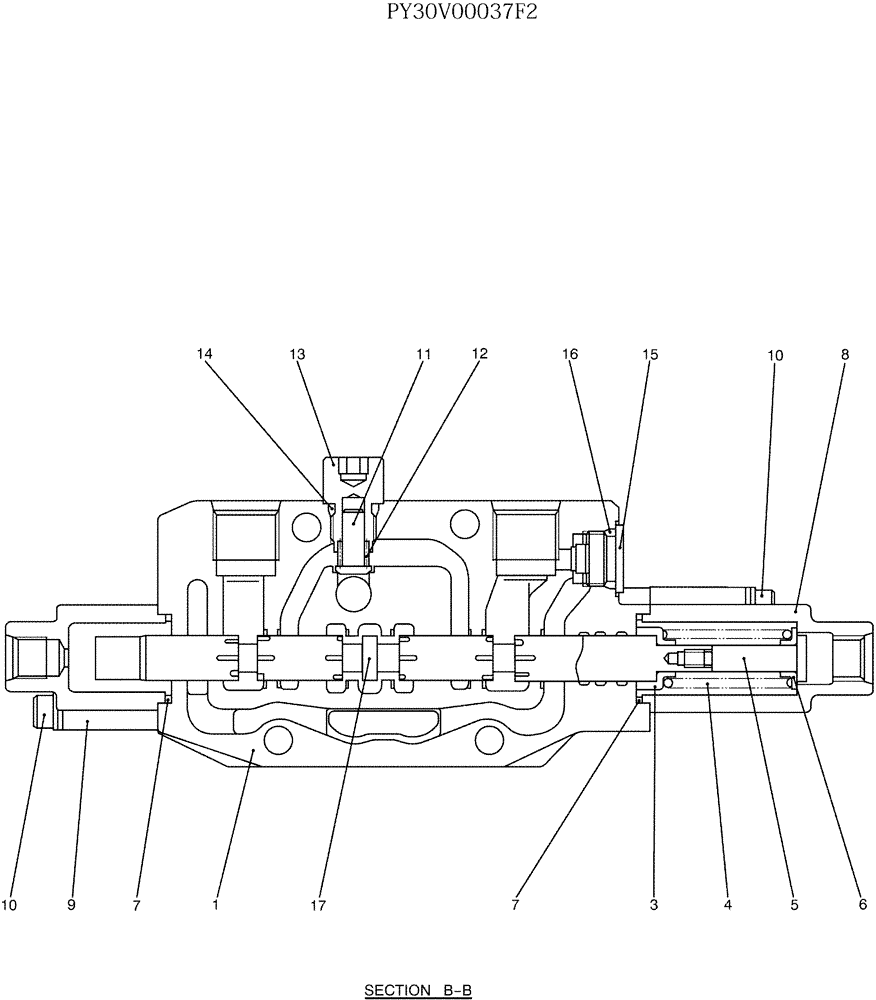

Запчасти Case CX50B (07-003) - VALVE ASSY, CONTROL, P/N PY30V00037F2 (35) - HYDRAULIC SYSTEMS

PY30V00037F2

VALVE SECTION

ASSY, CONTROL

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT, SPRING

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING

1шт.

5

NSS

NOT SOLD SEPARAT

BOLT, SPACER

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT, SPRING

1шт.

7

PH30V00009S007

O-RING

2шт.

8

PH30V00009S008

COVER

CAP

1шт.

9

PH30V00009S011

COVER

CAP

1шт.

10

PH30V00009S019

CAPSCREW

CAP

4шт.

11

PH30V00003S006

POPPET

1шт.

12

PH30V00003S007

SPRING

1шт.

13

PH30V00009S015

PLUG

1шт.

14

ZD12P01100

O-RING

1шт.

15

PL30V00007S034

PLUG

1шт.

16

ZD12P01400

O-RING

1шт.

17

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

PY30V00037R200

REPAIR KIT

CONSIST OF REF. 3 X 1, 4 X 1, 5 X 1, 6 X 1, 17 X 1

1шт.
