(07-001[01]) - VALVE ASSY, CONTROL

Запчасти Case CX50B (07-001[01]) - VALVE ASSY, CONTROL (35) - HYDRAULIC SYSTEMS

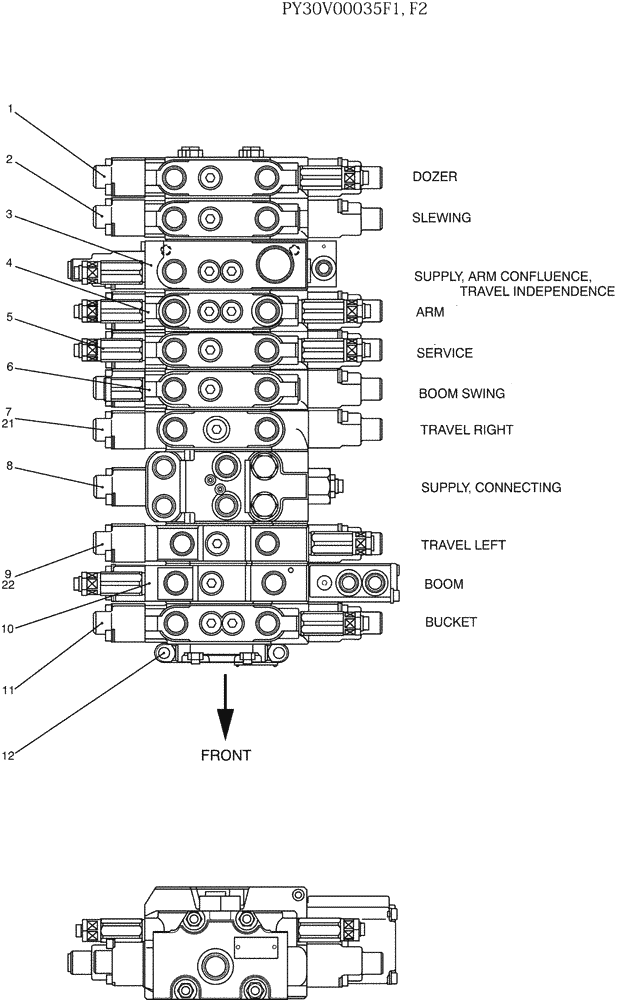

Схема запчастей Case CX50B - (07-001[01]) - VALVE ASSY, CONTROL (35) - HYDRAULIC SYSTEMS
1
6
3
12
22
4
11
2
7
10
9
5
21
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY30V00035F1

CONTROL VALVE

ASSY

1шт.

PY30V00035F2

CONTROL VALVE

VALVE ASSY, CONTROL

1шт.

1

PY30V00036F1

VALVE SECTION

ASSY, CONTROL, (DOZER), SEE FIG. 07-002

1шт.

2

PY30V00037F2

VALVE SECTION

ASSY,CONTROL, (SLEWING), SEE FIG 07-003

1шт.

3

PY30V00038F2

VALVE SECTION

ASSY, CONTROL, (SUPPLY, ARM CONFLUENCE, TRAVEL INDEPENDENCE), SEE FIG. 07-004

1шт.

4

PY30V00039F1

VALVE SECTION

ASSY, CONTROL, (ARM), SEE FIG. 07-005

1шт.

5

PY30V00047F1

VALVE SECTION

ASSY, (SERVICE), SEE FIG. 07-006

1шт.

6

PY30V00048F1

VALVE SECTION

ASSY, CONTROL, (BOOM SWING), SEE FIG. 07-007

1шт.

7

PY30V00042F3

VALVE SECTION

VALVE ASSY, CONTROL, (TRAVEL RIGHT), (F1 ONLY), SEE FIG. 07-008

1шт.

8

PY30V00043F1

VALVE SECTION

ASSY, CONTROL, (SUPPLY, CONNECTING), SEE FIG. 07-009

1шт.

9

PY30V00044F3

VALVE SECTION

VALVE ASSY, CONTROL, (TRAVEL LEFT), (F1 ONLY), SEE FIG. 07-010

1шт.

10

PY30V00045F2

VALVE SECTION

ASSY, CONTROL (BOOM), SEE FIG. 07-011

1шт.

11

PY30V00046F1

VALVE SECTION

ASSY, CONTROL, (BUCKET), SEE FIG. 07-012

1шт.

12

PY30V00032S026

COVER

1шт.

21

PY30V00042F4

VALVE SECTION

ASSY, (TRAVEL RIGHT), (F2 ONLY), SEE FIG. 07-008

1шт.

22

PY30V00044F4

VALVE SECTION

ASSY, (TRAVEL LEFT), (F2 ONLY), SEE FIG. 07-010

1шт.
