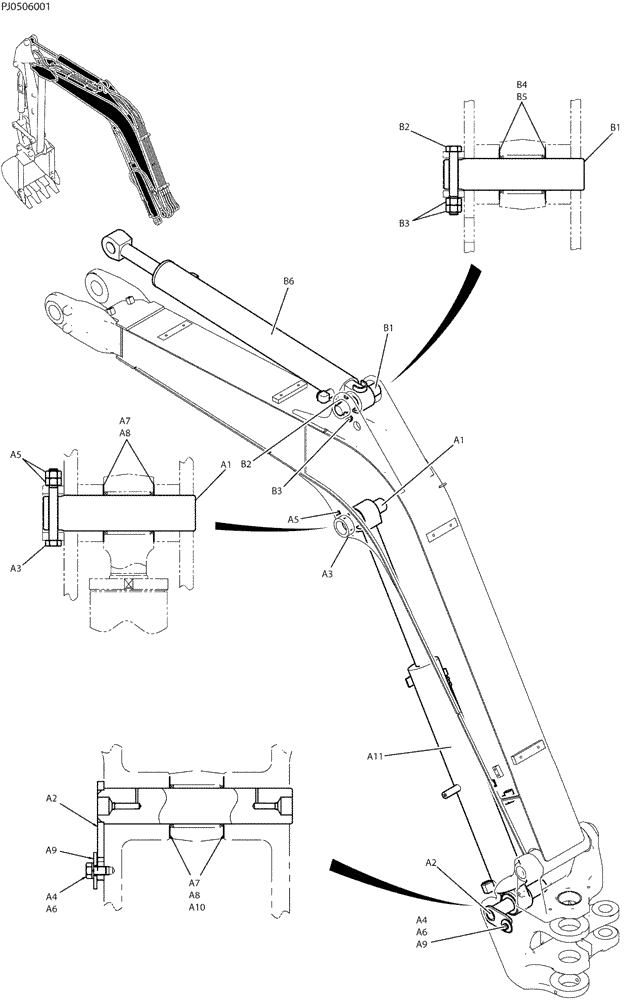

Запчасти Case CX50B (03-004) - CYLINDER INSTAL (35) - HYDRAULIC SYSTEMS

PY02B00144F1

CYLINDER INSTAL, (CANOPY)

1шт.

PY02B00143F1

CYLINDER INSTAL, (CAB)

1шт.

a1

PH02B01054P1

PIN,50mm OD x 213mm L

1шт.

a2

PH02B01052P3

PIN

PIN

1шт.

a3

HS18C12100G2

SCREW

CAP

1шт.

a4

ZS18C12020

SCREW,Hex, M12 x 20mm

1шт.

a5

ZN18C12010

NUT

2шт.

a6

ZW26X12000

LOCK WASHER

1шт.

a7

B16T0442D54

SHIM,52mm ID x 80mm OD x 0.5mm Thk

4шт.

a8

B16T0442D41

SHIM,80mm OD x 52mm ID x 0.9mm Thk

3шт.

a9

2418T17895

WASHER

1шт.

a10

B16T0442D24

SHIM,80mm OD x 52mm ID x 2.3mm Thk

3шт.

a11

PY01V00043F1

CYLINDER

CYLINDER ASSY, BOOM, CANOPY

1шт.

SEE (C.P.M)

1шт.

PY01V00045F1

CYLINDER

CYLINDER ASSY, BOOM, CAB

1шт.

SEE (C.P.M)

1шт.

PY02B00120F1

CYLINDER INSTAL, ARM

1шт.

b1

PH02B01060P1

PIN

1шт.

b2

HS18C12090G1

SCREW

CAP

1шт.

b3

ZN18C12010

NUT

2шт.

b4

YJ12B01043P1

SHIM,0.5mm Thk

2шт.

b5

B16T0442D61

SHIM,47mm ID x 70mm OD x 0.9mm Thk

2шт.

b6

PY01V00042F2

CYLINDER

ASSY, ARM

1шт.

SEE (C.P.M)

1шт.
