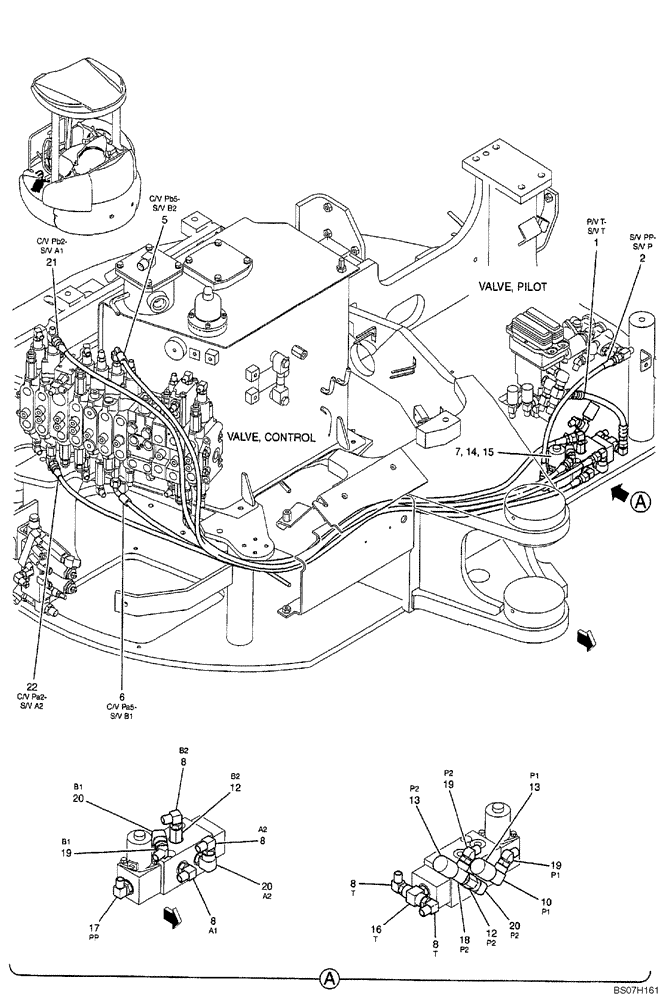

Запчасти Case CX50B (01-046) - CONTROL LINES, REMOTE (SWING REMOTE CONTROL) (35) - HYDRAULIC SYSTEMS

PY64H00031F1

LINE

CONTROL, VALVE

1шт.

1

HX22L04028DX

HOSE,6.3mm ID x 280mm L

1шт.

2

HX24L04040DX

HOSE

1шт.

5

HX24L04180DX

HOSE ASSY.

, Serial Range: PJ05-06001-PJ05-06429

1шт.

HX24L04185DX

HOSE

HOSE, Start Serial: PJ05-06430

1шт.

6

HX34L04145DX

HOSE,6.3mm ID x 1450mm L

, Serial Range: PJ05-06001-PJ05-06429

1шт.

HX34L04150DX

HOSE,6.3mm ID x 1500mm L

, Start Serial: PJ05-06430

1шт.

7

PE35V00001F2

SOLENOID VALVE

1шт.

SEE (C.P.M)

1шт.

8

HH35S04004G1

90 ELBOW

5шт.

10

2444Z3306

ELBOW

1шт.

12

2444Z2525

HYD CONNECTOR

2шт.

13

GB50S00049F2

SWITCH

PRESS (L.P.)

2шт.

14

ZS28C10065

SCREW,Hex Socket Head, M10 x 65mm

CAP

2шт.

15

ZW26K10000

LOCK WASHER

LOCK

2шт.

16

2444Z4239

TEE

1шт.

17

HH35S04004G2

90 ELBOW

1шт.

18

2444Z4231

ELBOW

1шт.

19

HH45S04004G1

45 ELBOW

3шт.

20

2444Z2894

90 ELBOW

ELBOW

3шт.

21

HX24L04200DX

HOSE

1шт.

22

HX24L04165DX

HOSE

, Serial Range: PJ05-06001-PJ05-06429

1шт.

HX24L04170DX

HOSE,6.3mm ID x 1700mm L

, Start Serial: PJ05-06430

1шт.
