(01-022) - POWER TAKE OFF ASSY

Запчасти Case CX50B (01-022) - POWER TAKE OFF ASSY (35) - HYDRAULIC SYSTEMS

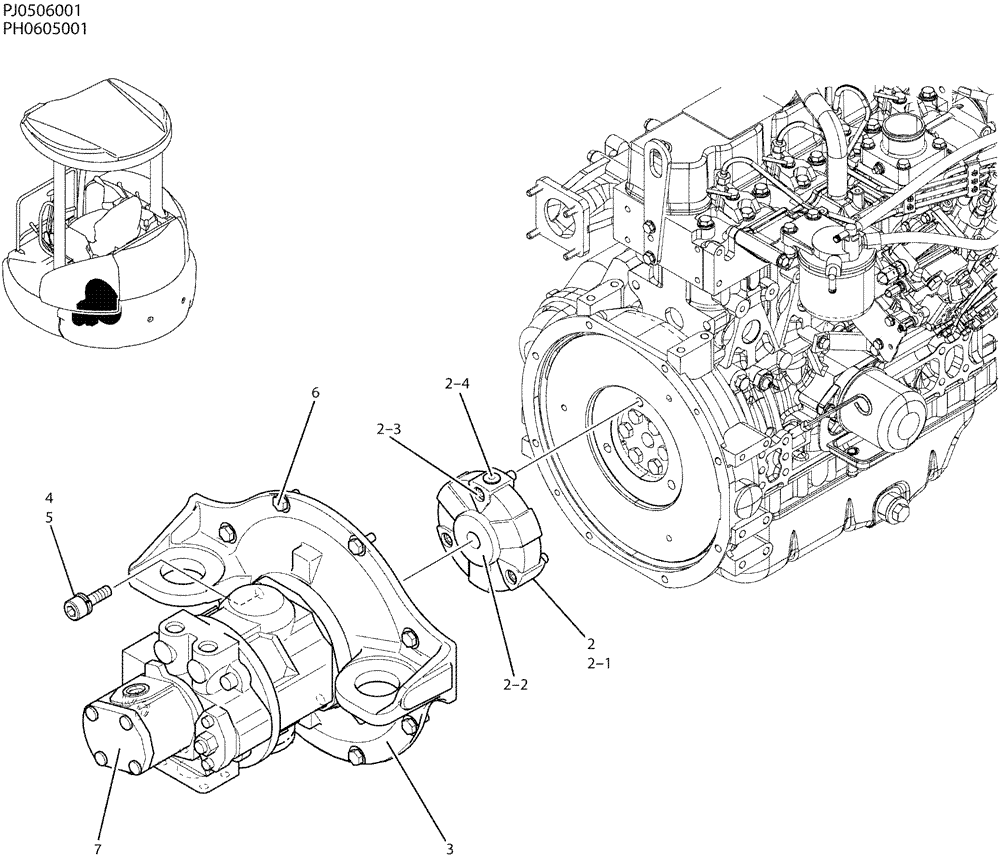

Схема запчастей Case CX50B - (01-022) - POWER TAKE OFF ASSY (35) - HYDRAULIC SYSTEMS
2-2
6
2-4
4
2
7
5
3
2-3
2-1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH30P00005F1

POWER TAKE-OFF ASSY

1шт.

2

PW30P01007F1

COUPLING

ASSY

1шт.

2-1

PW30P01002S001

COUPLING

1шт.

2-2

PW30P01002S002

HUB

1шт.

2-3

PW30P01002S003

CAPSCREW,Hex Socket Head, M12 x 40mm

CAP

3шт.

2-4

PY30P01003S004

CAPSCREW,Hex Socket Head, M12 x 35mm

CAP

3шт.

3

PW30P01005P2

BRACKET

BRACKET

1шт.

4

PV17M01003D1

SCREW

CAP

2шт.

5

ZW16K12000

WASHER

2шт.

6

ZS18C10025

SCREW,Hex, M10 x 25mm

8шт.

7

PH10V00010F2

PUMP

ASSY

1шт.

SEE (C.P.M)

1шт.
