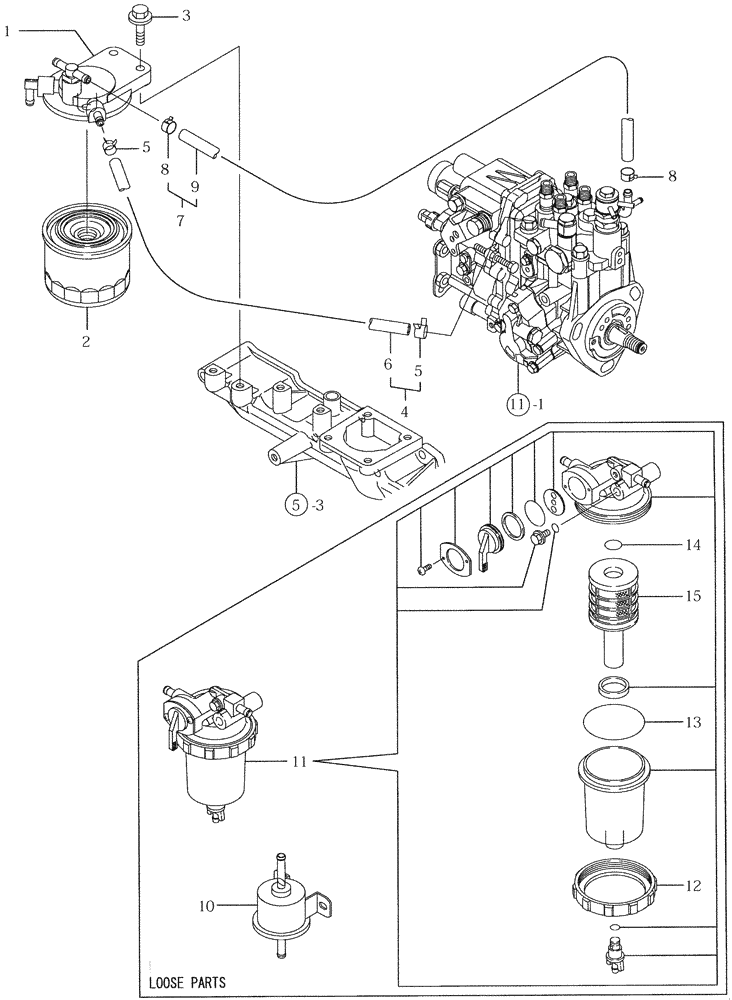

Запчасти Case CX50B (08-013) - FUEL LINE (10) - ENGINE

1

VV12900455610

BRACKET

BRACKET, FILTER

1шт.

2

VV11980255800

FUEL FILTER

FILTER, FUEL

1шт.

3

VV26106080302

BOLT,M8 x 30mm

BOLT, M8 X 30 PLATED

2шт.

4

VV12921059090

PIPE ASSY.

PIPE ASSY, FUEL OIL

1шт.

5

VV12476659050

CLAMP

CLAMP 12

2шт.

6

VV10532559570

PIPE

PIPE, FUEL OIL

1шт.

7

VV12921059150

PIPE ASSY.

PIPE ASSY, FUEL OIL

1шт.

8

VV12476659050

CLAMP

CLAMP 12

2шт.

9

VV10502559530

PIPE

PIPE, FUEL (D13 X L400)

1шт.

10

VV12961252100

FUEL PUMP,12V, 1.5A

FUEL PUMP

1шт.

11

VV11980255700

SEPARATOR

SEPARATOR ASSY

1шт.

12

VV12910055690

RING

RING, RETAINING

1шт.

13

VV24321000650

O-RING

O-RING, 1A G-65.0

1шт.

14

VV24311000160

O-RING

O-RING, 1A P-16.0

1шт.

15

VV11980255710

FILTER STRAINER

ELEMENT

1шт.
