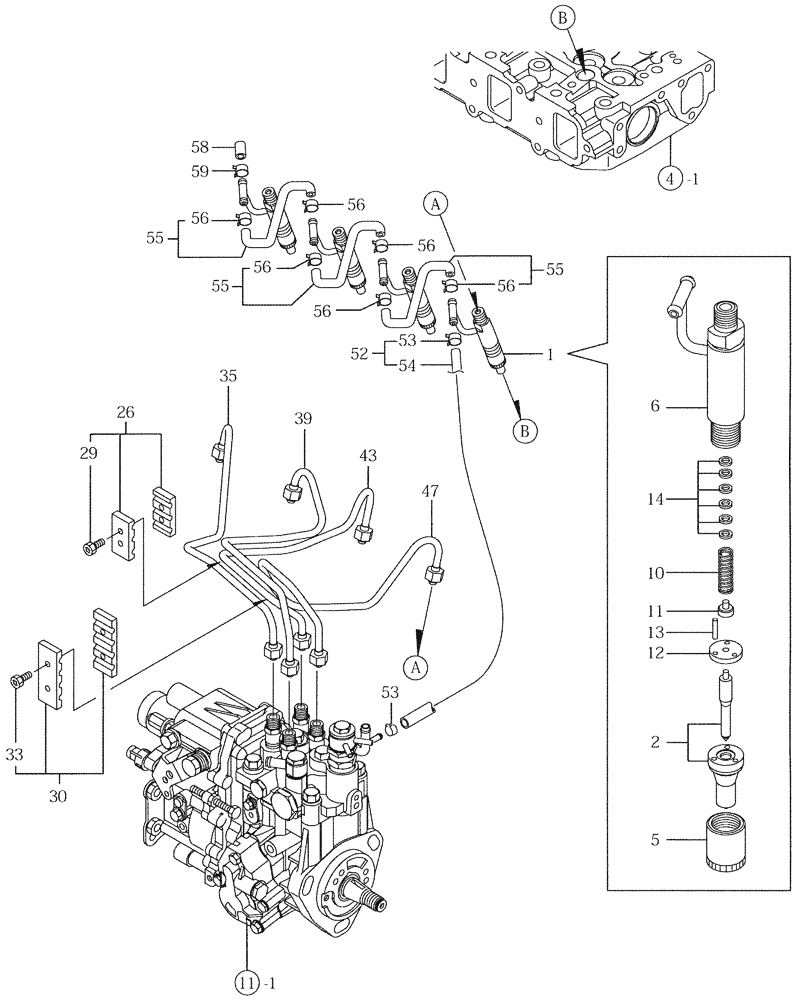

Запчасти Case CX50B (08-012) - FUEL INJECTION VALVE (10) - ENGINE

1

VV72964553100

FUEL SYSTEM INJECTOR

FUEL INJECTOR (WBG)

4шт.

2

VV12960253001

NOZZLE

NOZZLE ASSY

4шт.

5

VV11425053080

NUT

NUT, NOZZLE CASE

4шт.

6

VV11980253100

HOLDER

HOLDER ASSY, NOZZLE

4шт.

10

VV11425053120

SPRING

SPRING, NOZZLE

4шт.

11

VV11425053130

SEAT

SEAT, NOZZLE SPRING

4шт.

12

VV11425053140

PLATE

PLATE, STOP

4шт.

13

VV11425053210

PIN

PIN

8шт.

14

VV11425053400

SHIM

SHIM PACK

4шт.

26

VV12915059120

RETAINER

RETAINER, INJ. PIPE

1шт.

29

VV12915059131

BOLT

BOLT, M4 X 14, HEX. SCKT.

2шт.

30

VV12955059120

RETAINER

RETAINER

1шт.

33

VV12915059131

BOLT

BOLT, M4 X 14, HEX. SCKT.

2шт.

35

VV12960159810

PIPE ASSY.

PIPE ASSY, INJECTION

1шт.

39

VV12960159820

PIPE ASSY.

PIPE ASSY, INJECTION

1шт.

43

VV12960159830

PIPE ASSY.

PIPE ASSY, INJECTION

1шт.

47

VV12960159840

PIPE ASSY.

PIPE ASSY, INJECTION

1шт.

52

VV11980259550

PIPE ASSY.

PIPE ASSY, RETURN

1шт.

53

VV12472259050

CLAMP

CLAMP 9

2шт.

54

VV11980259560

PIPE

PIPE, FUEL RETURN

1шт.

55

VV12948659551

PIPE

PIPE, FUEL RETURN

3шт.

56

VV12472259050

CLAMP

CLAMP 9

6шт.

58

VV11959359580

CAP

CAP

1шт.

59

VV12406077680

CLAMP

CLAMP 10

1шт.
