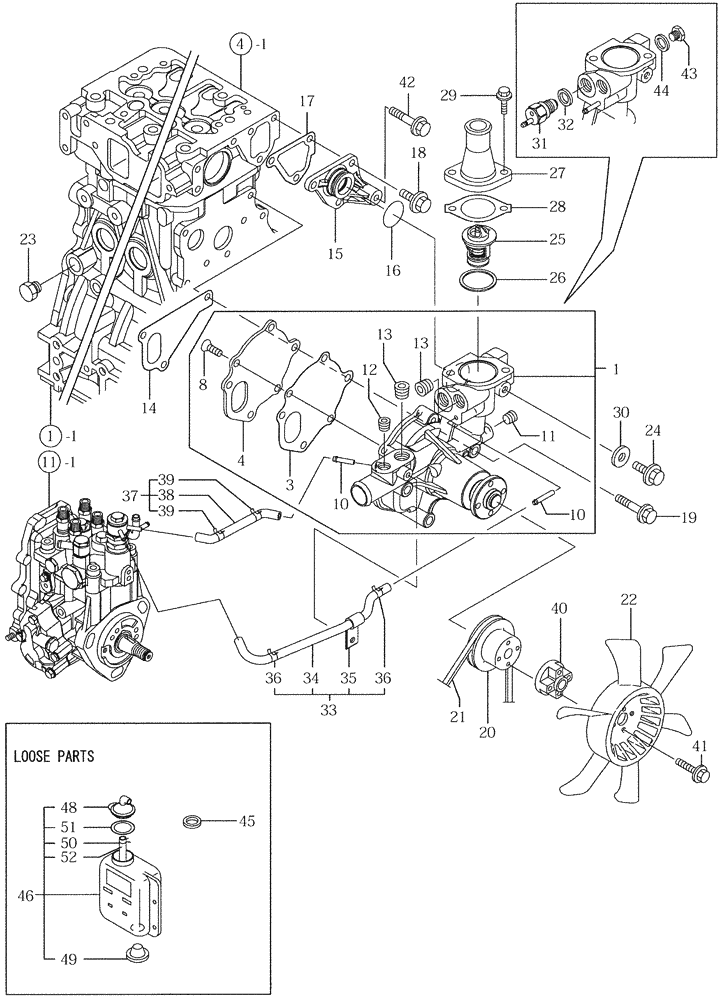

Запчасти Case CX50B (08-010) - COOLING WATER SYSTEM (10) - ENGINE

1

VV12900442001

WATER PUMP

PUMP ASSY, WATER

1шт.

3

VV12910042051

GASKET

GASKET, (NON-ASB.)

1шт.

4

VV12910042121

PLATE

PLATE

1шт.

8

VV12185042410

SCREW

SCREW

3шт.

10

VV11980249113

JOINT

JOINT

2шт.

11

VV23876010000

PLUG

PLUG, PT 1/8, SCREW

1шт.

12

VV23876020000

PLUG

PLUG, 1/4

1шт.

13

VV12991649740

DRAIN PLUG

PLUG, DRAIN R03

2шт.

14

VV12948642021

GASKET

GASKET

1шт.

15

VV12900442040

JOINT

JOINT

1шт.

16

VV12948642140

O-RING

O-RING, CW-P

1шт.

17

VV12439549840

GASKET

GASKET, THERMO. CASE

1шт.

18

VV26106080162

BOLT,M8 x 16mm

BOLT, M8 X 16 PLATED

3шт.

19

VV26106080602

BOLT,M8 x 60mm

BOLT, M8 X 60 PLATED

3шт.

20

VV12955642350

GROOVED PULLEY

V-PULLEY

1шт.

21

VV12961242380

BELT, TRANSMISSION

V-BELT, A38.5

1шт.

22

VV17144044740

FAN

FAN, COOLING D=350

1шт.

23

VV17105649120

PLUG

PLUG, DRAIN

1шт.

24

VV26106080122

BOLT,M8 x 12mm

BOLT, M8 X 12 PLATED

1шт.

25

VV12915549801

THERMOSTAT

THERMOSTAT (71)

1шт.

26

VV12915049811

GASKET

(NON-ASBESTOS)

1шт.

27

VV12935049560

COVER

COVER, THERMOSTAT

1шт.

28

VV12979549551

GASKET

(NON-ASBESTOS)

1шт.

29

VV26106080222

BOLT,M8 x 22mm

BOLT, M8 X 22 PLATED

2шт.

30

VV23414080000

SEAL

GASKET 8, ROUND

1шт.

31

VV12125044901

THERMOSTATIC SWITCH,On - 110 Degrees C, 230 Degrees F

THERMO (110 C)

1шт.

32

VV12446544950

GASKET

GASKET, 16

1шт.

33

VV12900449610

PIPE ASSY.

PIPE ASSY, A MP2

1шт.

34

VV12900449711

PIPE ASSY.

PIPE ASSY, A MP2

1шт.

35

VV11980249730

CLAMP

CLAMP, CW-T

1шт.

36

VV12472259050

CLAMP

CLAMP 9

2шт.

37

VV12900449620

PIPE ASSY.

PIPE ASSY, B MP2

1шт.

38

VV12900449721

PIPE

PIPE, WATER B MP2

1шт.

39

VV12472259050

CLAMP

CLAMP 9

2шт.

40

VV12945744760

SPACER

SPACER, FAN

1шт.

41

VV26106060452

BOLT,M6 x 45mm

BOLT, M6 X 45 PLATED

4шт.

42

VV26106080452

BOLT,M8 x 45mm

BOLT, M8 X 45 PLATED

1шт.

43

VV12145042450

PLUG,M16

PLUG, M16

1шт.

44

VV12446544950

GASKET

GASKET, 16

1шт.

45

VV12915049360

PACKING

GASKET, 10

1шт.

46

VV12146844510

TANK

SUB-TANK ASSY

1шт.

48

VV12145044531

CAP

CAP

1шт.

49

VV12146844540

PLUG

PLUG, SUB-TANK

1шт.

50

VV12445044560

CLAMP

CLAMP

1шт.

51

VV12147044581

GASKET

GASKET

1шт.

52

VV23065070130

PIPE

PIPE, 7 X 130

1шт.
