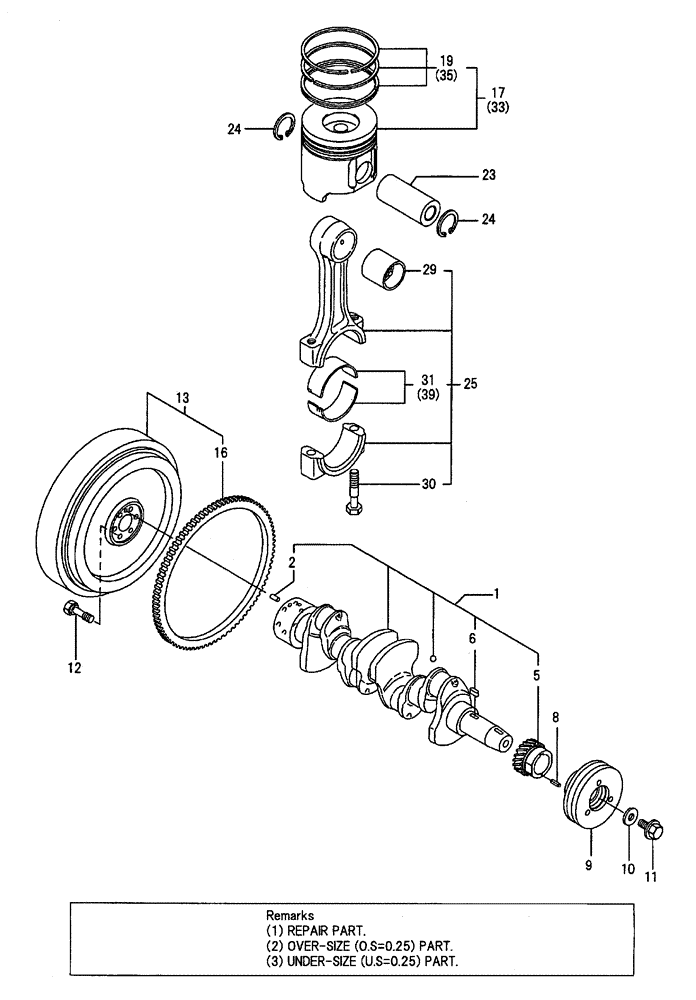

Запчасти Case CX50B (08-008) - CRANKSHAFT & PISTON (10) - ENGINE

1

VV12960121001

CRANKSHAFT

CRANKSHAFT ASSY

1шт.

2

VV12910001580

PIN,M8 x 16mm

PARALLEL PIN, 8 X 16

1шт.

5

VV11980221201

GEAR

GEAR, CRANKSHAFT

1шт.

6

VV22512070140

KEY,M7 x 14mm

KEY, 7 X 14

1шт.

8

VV22351030010

PIN

SPRING PIN, 3 X 10

1шт.

9

VV11980221660

PULLEY

V-PULLEY, CRANKSHAFT

1шт.

10

VV12979521661

WASHER

WASHER

1шт.

11

VV12185021680

BOLT

BOLT, V-PULLEY

1шт.

12

VV12111121501

BOLT

BOLT, FLYWHEEL

6шт.

13

VV12948921590

FLYWHEEL

FLYWHEEL ASSY

1шт.

16

VV11986521600

GEAR

GEAR, RING

1шт.

17

VV12900522080

PISTON ASSY

PISTON ASSY

4шт.

19

VV12900522500

PISTON RING SET

RING SET, PISTON

4шт.

23

VV12920222300

PISTON PIN

PIN, PISTON (D26, L70)

4шт.

24

VV22252000260

CIRCLIP

CIRCLIP, 26

8шт.

25

VV72940223100

ROD

ROD ASSY, CONNECTING

4шт.

29

VV12910023910

BUSHING

BUSH, PISTON PIN (1)

4шт.

30

VV12155023200

BOLT

BOLT, CONNECTING ROD

8шт.

31

VV12915023600

CRANKSHAFT BEARING

BEARING, CRANKPIN

4шт.

33

VV12900522900

PISTON

PISTON W/RING OS=0.25 (2)

4шт.

35

VV12900522950

RING

RING SET OS=0.25 (2)

4шт.

39

VV12915023610

PIN,0.25

METAL, PIN US=0.25 (3)

4шт.
