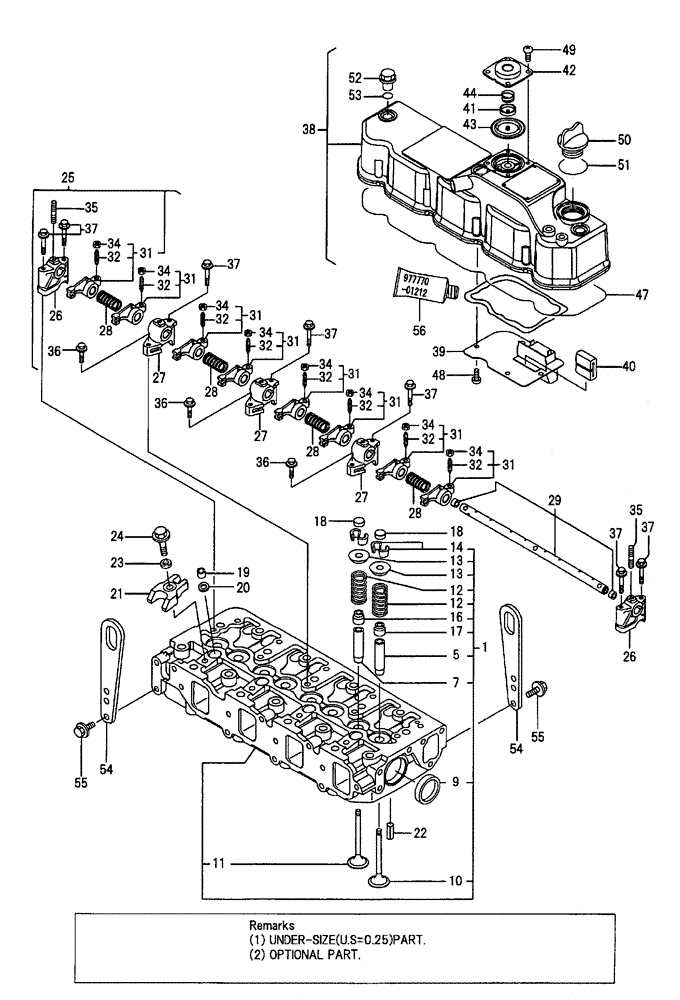

Запчасти Case CX50B (08-004) - CYLINDER HEAD & BONNET (10) - ENGINE

1

VV12960111700

CYLINDER HEAD

HEAD ASSY, CYLINDER

1шт.

5

VV12013011860

VALVE GUIDE

GUIDE, VALVE (1)

4шт.

7

VV12915011810

VALVE GUIDE

GUIDE, VALVE (1)

4шт.

9

VV27241400000

PLUG

PLUG, 40

2шт.

10

VV12900411100

VALVE

VALVE, INTAKE

4шт.

11

VV12910011110

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE VALVE, EXHAUST

4шт.

12

VV12979511120

VALVE SPRING

SPRING, VALVE

8шт.

13

VV12979511180

SPRING

RETAINER, SPRING

8шт.

14

VV27310080001

COTTER PIN

COTTER, 8 2 PIE=1 SET

8шт.

16

VV12140011340

SEAL

SEAL, VALVE STEM

4шт.

17

VV12446011340

SEAL

SEAL, VALVE STEM

4шт.

18

VV12915011370

CAP

CAP, VALVE

8шт.

19

VV11980211870

PROTECTOR

PROTECTOR, NOZZLE

4шт.

20

VV11962511880

SEAL

SEAT, NOZZLE

4шт.

21

VV12900411900

RETAINER

RETAINER, NOZZLE

4шт.

22

VV22351060012

SPRING,6 x 12mm

SPRING PIN, 6 X 12

2шт.

23

VV12027054410

WASHER

WASHER

4шт.

24

VV26106080352

BOLT,M8 x 35mm

BOLT, M8 X 35 PLATED

4шт.

25

VV12960111241

SHAFT ASSY.

SHAFT ASSY, ROCKER

1шт.

26

VV11980211260

SUPPORT

SUPPORT, ROCKER ARM

2шт.

27

VV11980211270

SUPPORT

SUPPORT, ROCKER ARM

3шт.

28

VV12915011280

SPRING

SPRING

4шт.

29

VV12960111251

SHAFT

SHAFT

1шт.

31

VV12900411650

ARM ASSY.

ARM ASSY, ROCKER

8шт.

32

VV12915011230

SCREW

SCREW, VALVE

8шт.

34

VV12915011750

NUT

NUT, M8 X P1.0

8шт.

35

VV26226080182

STUD,M8 x 18mm

BOLT, M8 X 18 STUD

3шт.

36

VV26106080252

BOLT,M8 x 25mm

BOLT, M8 X 25 PLATED

3шт.

37

VV26106080502

BOLT,M8 x 50mm

BOLT, M8 X 50 PLATED

7шт.

38

VV12960111350

COVER

BONNET ASSY

1шт.

39

VV12900403010

PLATE ASSY.

PLATE, BAFFLE

1шт.

40

VV12915003070

BAFFLE

BAFFLE, BREATHER

1шт.

41

VV11980203110

PLATE

PLATE, DIAPHRAGM

1шт.

42

VV11980203120

COVER ASSY

COVER, DIAPHRAGM

1шт.

43

VV11980203130

DIAPHRAGM

DIAPHRAGM

1шт.

44

VV11980203140

SPRING

SPRING, DIAPHRAGM

1шт.

47

VV12960111310

GASKET

GASKET, COVER

1шт.

48

VV22857500100

SCREW,M5 x 10mm

SCREW, 5 X 10, TAPPING

4шт.

49

VV22857500100

SCREW,M5 x 10mm

SCREW, 5 X 10, TAPPING

4шт.

50

VV12416001751

CAP

COVER, FILLER

1шт.

51

VV24311000320

O-RING

O-RING, 1A P 32.0

1шт.

52

VV12416011360

KNOB

KNOB

3шт.

53

VV24311000120

O-RING

O-RING, 1A P 12.0

3шт.

54

VV12990007900

GRAIN LIFTER

LIFTER, ENGINE

2шт.

55

VV26106080142

BOLT,M8 x 14mm

BOLT, M8 X 14 PLATED

4шт.

56

VV97777001212

GASKET

GASKET, LIQUID (2)

1шт.
