(05-002) - ENGINE INSTAL (COOLER)

Запчасти Case CX50B (05-002) - ENGINE INSTAL (COOLER) (10) - ENGINE

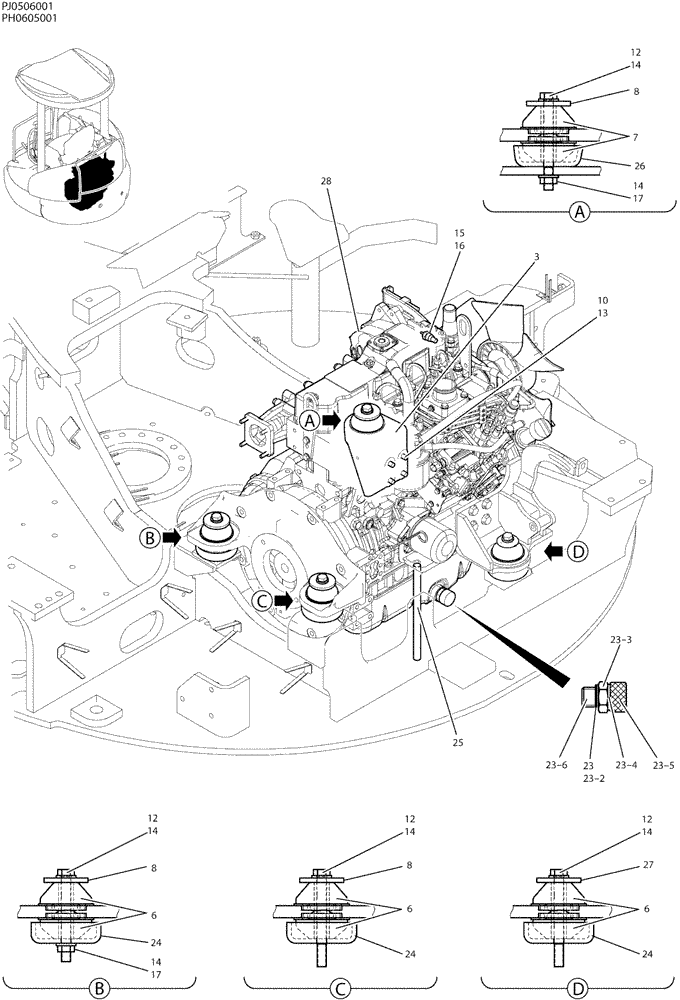

Схема запчастей Case CX50B - (05-002) - ENGINE INSTAL (COOLER) (10) - ENGINE
14
14
14
23-3
8
24
14
6
27
25
12
10
13
7
23-5
26
16
23-4
6
17
15
3
14
8
28
12
8
23-2
14
12
6
24
17
23
23-6
24
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH02P00014F1

ENGINE INSTAL

1шт.

3

PH02P01043P1

BRACKET

1шт.

6

PW02P01054D1

RUBBER MOUNTING

6шт.

7

PH02P01048D1

RUBBER MOUNTING

2шт.

8

PW01P01022P1

WASHER

3шт.

10

ZS18C10025

SCREW,Hex, M10 x 25mm

4шт.

12

ZS18C12120

SCREW,Hex, M12 x 120mm

4шт.

13

ZW16H10000

WASHER

4шт.

14

ZW16H12000

WASHER

6шт.

15

PA24S00003P1

SENSOR,50-120 Degree C

(Used for Engine Temp Gauge)

1шт.

16

PA13E01027P1

PACKING

1шт.

17

ZN18C12010

NUT

2шт.

23

PW02P01057F1

PLUG,M22 x 1.5

1шт.

23-2

LQ02PU1002S002

WASHER

1шт.

23-3

LQ02PU1002S003

BODY

1шт.

23-4

LQ02PU1002S004

O-RING

1шт.

23-5

LQ02PU1002S005

CAP

1шт.

23-6

LQ02PU1002S006

PLUG

1шт.

24

PW02P01041P1

COVER

3шт.

25

PU01P01035P1

HOSE

Hose Assy with Straight Coupler

1шт.

25

PM91Z01005P1

HOSE

Hose Assy with Elbow Coupler

1шт.

25

PW02P01047D1

HOSE,12mm ID x 250mm L

1шт.

26

PH02P01060P1

COVER

1шт.

27

PH02P01061P1

WASHER

1шт.

28

PH02P00011F1

ENGINE

ASSY, SEE FIG. 01-005

1шт.
