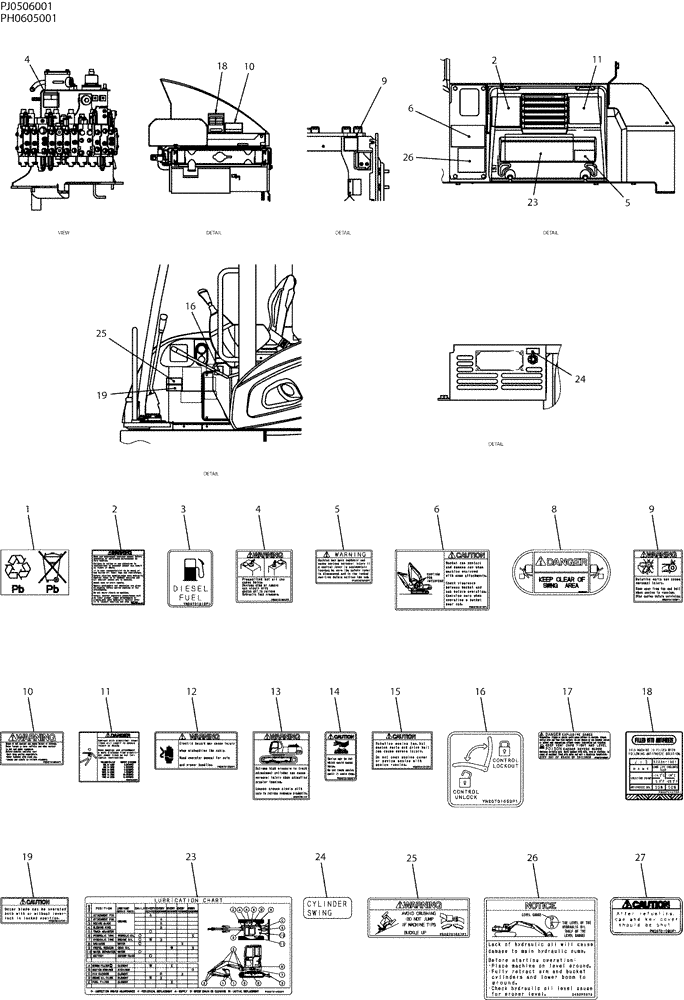

Запчасти Case CX50B (06-002) - NAME PLATE INSTAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

2

YN20T01016P1

WARNING DECAL

Warning, Read and Understand Operators Manual Before Operating or Preforming Maintenancel

1шт.

4

PW20T01007P1

LABEL

Warning, Pressurized Hot Oil Can Cause Burns

1шт.

5

PY20T01073P1

WARNING DECAL

Warning, Machine May Move Suddenly and Cause Serious Personal Injury If a Control Lever is Suddenly Touched

1шт.

6

YN20T01013P1

LABEL

Caution, Bucket can Contact and Damage Cab When Machine Equipped with some Attachments

1шт.

9

YN20T01009P1

LABEL

Warning, Rotating Parts Can Cause Personal Injury

1шт.

10

PW20T01094P1

WARNING DECAL

Warning, Coolant

1шт.

11

YN20T01006P1

LABEL

Danger, Contact with Electrical Power Lines will Result in Severe Injury or Death

1шт.

16

YN20T01050P1

LABEL

Control Lockout, Control Unlock

1шт.

18

PW20T01076P1

LABEL

LABEL; Filled with Antifreeze

1шт.

19

PY20T01077P1

LABEL

Caution, DozerBlade can be Operated Both With or Without Leverlock in Lock Position

1шт.

23

PV20T01003P1

LABEL

Lubrication Chart

1шт.

24

PW20T01044P1

LABEL

Cylinder Swing

1шт.

25

PE20T01027P1

LABEL

Warning, Avoid Crushing - Do Not Jump if Machine Tips, Buckle Up

1шт.

26

2432P3379

LABEL

Notice, Lack of Hydraulic Oil will Cause Damage to Main Hydraulic Pump

1шт.
