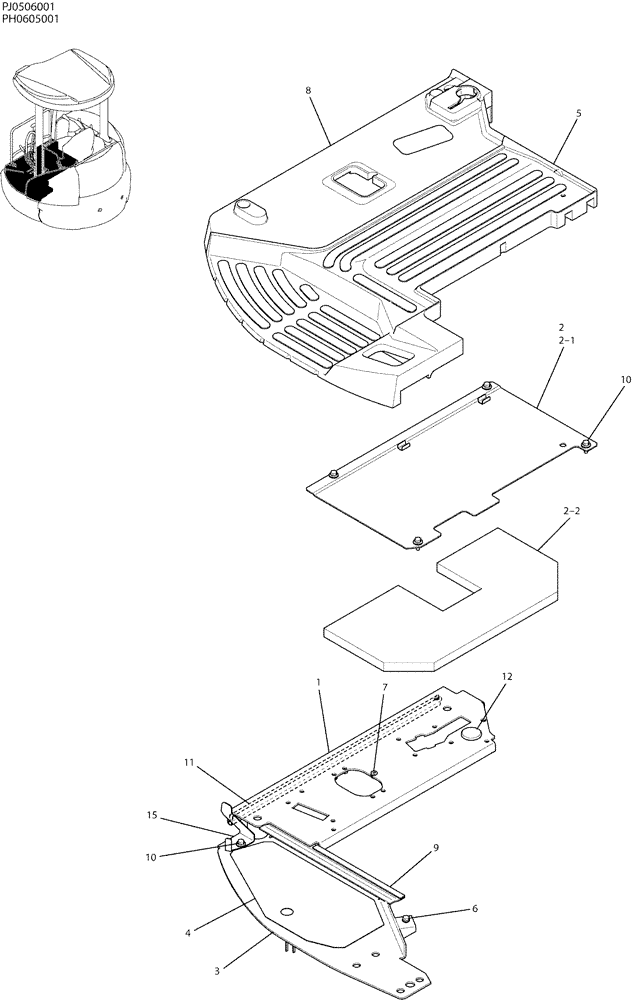

Запчасти Case CX50B (01-048) - PLATE GROUP, FLOOR (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

PH03M00080F1

PLATE GROUP, FLOOR

1шт.

1

PW03M01535P2

PLATE

1шт.

2

PH03M01479F1

COVER

COVER ASSY

1шт.

2-1

PW03M01592P1

COVER

COVER

1шт.

2-2

PH03M01478P1

FOAM INSULATION

1шт.

3

PW03M01860P1

BRACKET

BRACKET

1шт.

4

PW03M01820P1

COVER

COVER

1шт.

5

PW26M00018P1

FLOOR MAT

MAT, FLOOR

1шт.

6

ZM22C08020

BOLT

SEMS

1шт.

7

YN03M01159P1

GROMMET

1шт.

8

PV26M00004F1

MAT

ASSY, FLOOR

1шт.

9

PW03M01545P1

RUBBER

1шт.

10

PM21C01202P1

BOLT

SEMS

5шт.

11

PH21C01136DF

WEATHERSTRIP

1шт.

12

PM03M01357P1

PLUG

1шт.

15

PW03M01832P1

PLATE, Serial Range: PJ05-06001-PJ05-06161

1шт.

15

PW03M01832P1

PLATE, Serial Range: PH06-05001-PH06-05095

1шт.

PW03M01832P2

PLATE

PLATE, Start Serial: PJ05-06162

1шт.

PW03M01832P2

PLATE

PLATE, Start Serial: PH06-05096

1шт.
