(05-025[02]) - LIGHT INSTAL (CAB), PAGE 2 OF 2

Запчасти Case CX50B (05-025[02]) - LIGHT INSTAL (CAB), PAGE 2 OF 2 (55) - ELECTRICAL SYSTEMS

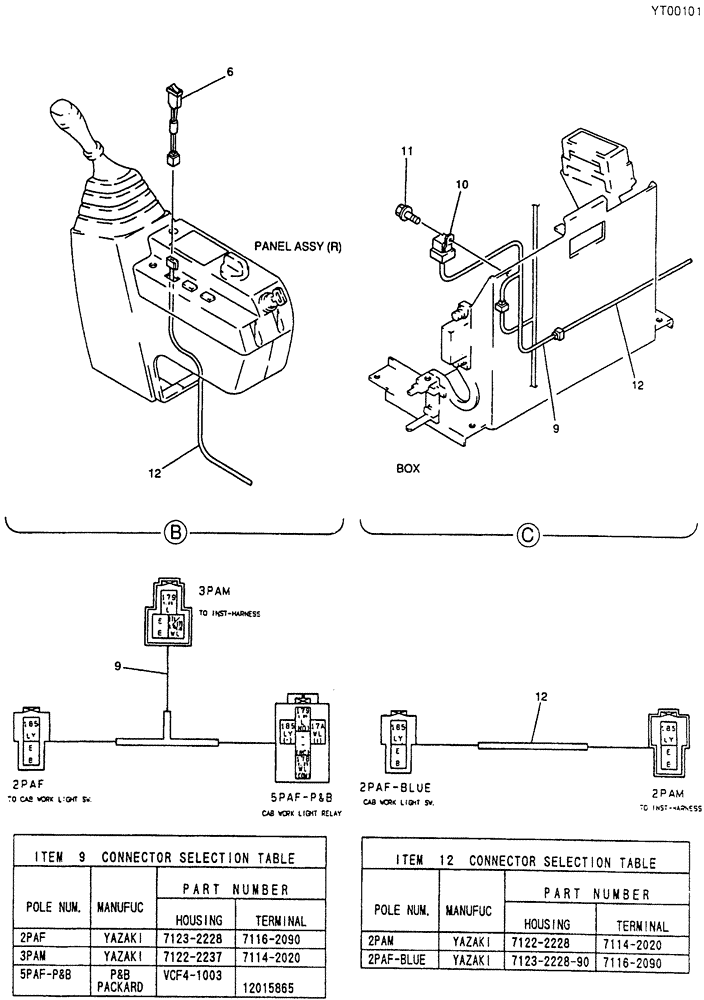

Схема запчастей Case CX50B - (05-025[02]) - LIGHT INSTAL (CAB), PAGE 2 OF 2 (55) - ELECTRICAL SYSTEMS
10
9
11
12
6
9
12
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Cab Light Installation, Page 2 of 2

1шт.

YT80E00002F1

LIGHT INSTAL, (ONE LIGHT)

1шт.

YT80E00002F2

LIGHT

INSTAL, (TWO LIGHTS)

1шт.

1

YN80S00010F2

LIGHT ASSY.

LIGHT INSTAL

1шт.

1

YN80S00010F2

LIGHT ASSY.

LIGHT INSTAL

2шт.

2

YT02C01337P1

SUPPORT

1шт.

3

ZS18C10030

SCREW,Hex, M10 x 30mm

M10x1.50x30mm

2шт.

4

ZW16H10000

WASHER

ID 11 x OD 24 x Th 3.2mm

2шт.

5

ZW26X10000

LOCK WASHER

ID 10 x OD 18 x Th 2.5mm

2шт.

6

2479U1190F1

SWITCH

1шт.

7

YT11E01001P1

HARNESS (F2 ONLY)

1шт.

8

YT11E01002P1

HARNESS (F1 ONLY)

1шт.

9

YT14E01017P1

HARNESS

1шт.

10

YR24S00002P1

RELAY

1шт.

11

ZM61C06012

BOLT

M06x1.0x12mm (Incls. Washer & Lockwasher)

1шт.

12

YT14E01018P1

HARNESS

1шт.

13

PY01P01043D2

CABLE TIE,4.60mm W x 202mm L

Wire Ties -- 160mm Long

2шт.
