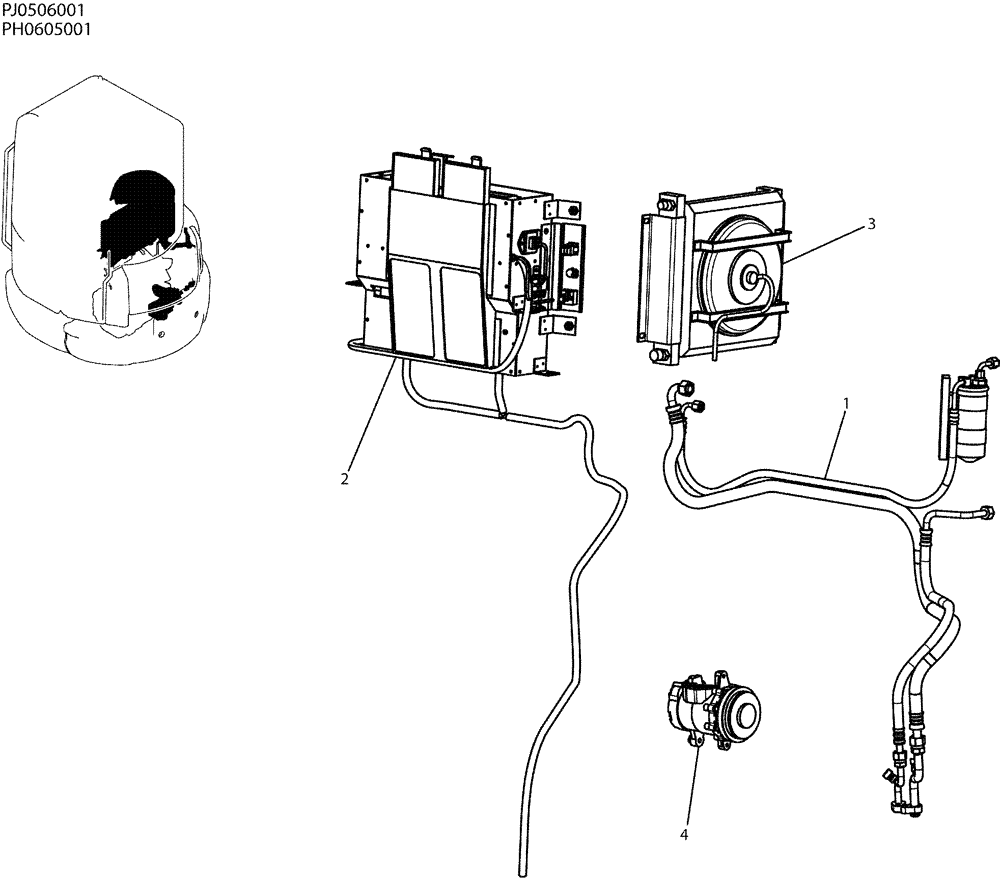

Запчасти Case CX50B (05-020) - COOLER ASSY (50) - CAB CLIMATE CONTROL

.

COOLER ASSY PH20M00017F1

1шт.

1

PH96V00004F1

SET OF PARTS

DRIER ASSY, AIR, SEE FIG. 05-021

1шт.

2

PH20M00016F1

COOLER

COOLER ASSY, SEE FIG. 05-022

1шт.

3

PH20M01108F1

CONDENSER

1шт.

3-1

PH20M01108S009

ELECTRIC MOTOR

Not Illustrated – Condenser Fan

1шт.

4

PH91V00004F1

AIRCOND. COMPRESSOR

COMPRESSOR ASSY

1шт.
