(05-001) - COUNTERWEIGHT ASSY (GAIN)

Запчасти Case CX50B (05-001) - COUNTERWEIGHT ASSY (GAIN) (39) - FRAMES AND BALLASTING

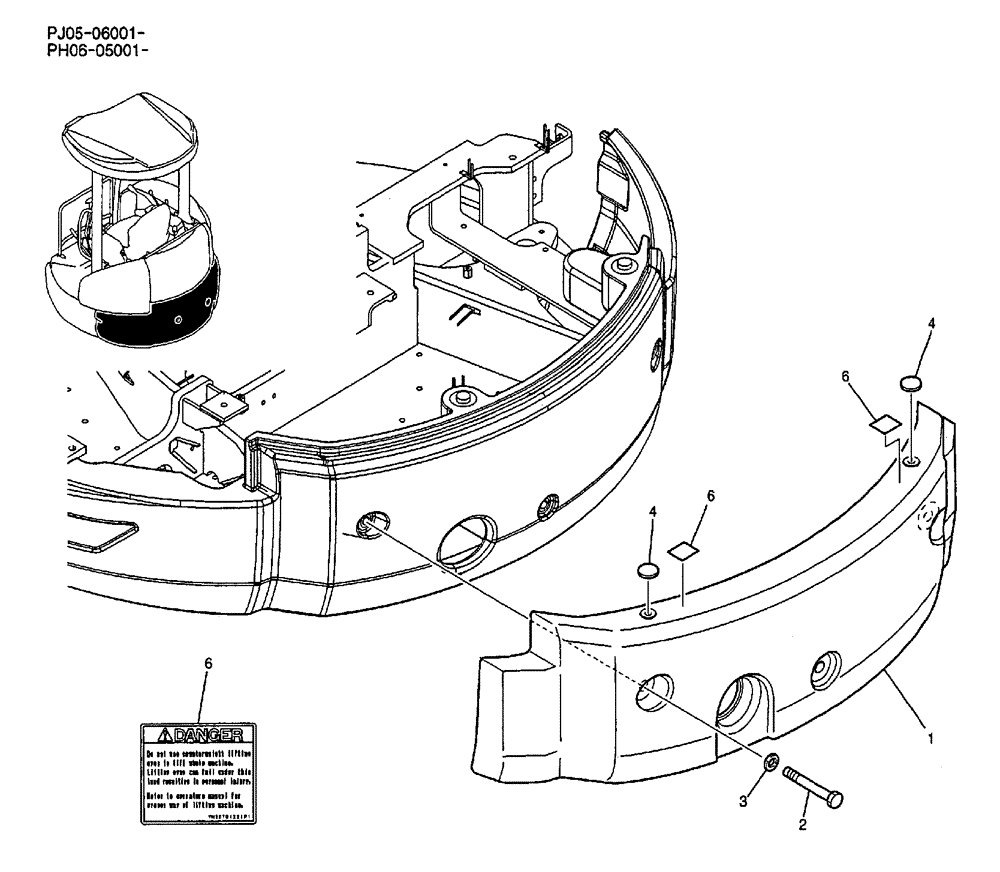

Схема запчастей Case CX50B - (05-001) - COUNTERWEIGHT ASSY (GAIN) (39) - FRAMES AND BALLASTING
4
2
4
6
6
3
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH60C00013F2

COUNTERWEIGHT

INSTAL

1шт.

1

PH60C00011P1

COUNTERWEIGHT

1шт.

2

HS18C20135G1

BOLT

3шт.

3

HY26Y21050G4

WASHER

3шт.

4

LE60C01028P1

PLATE

2шт.

6

YN20T01221P1

DANGER DECAL

2шт.
